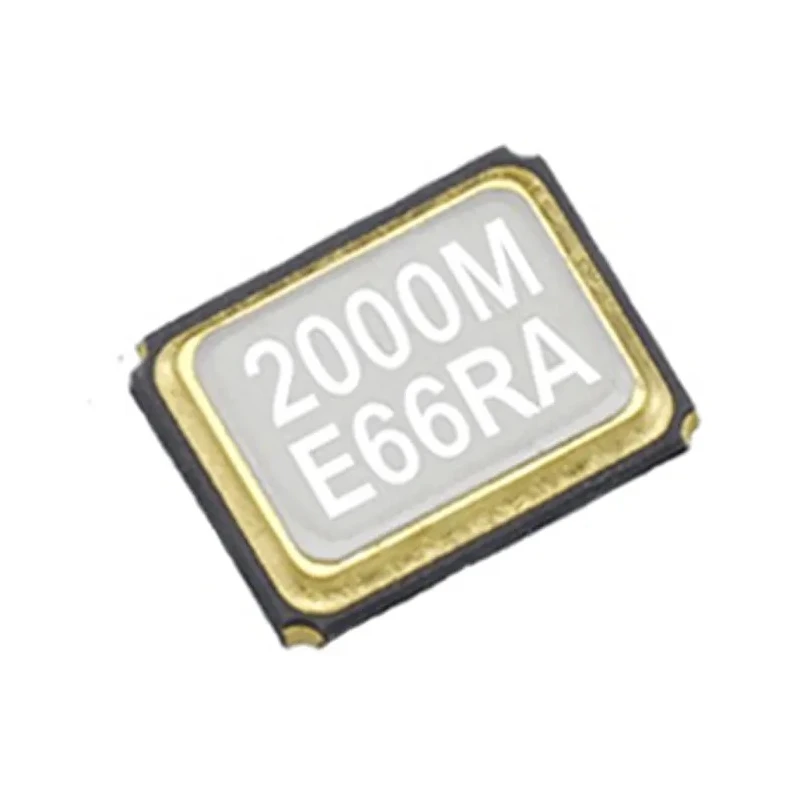

Epson 20 MHz Surface Mount Crystal Unit 12pF Capacitance ±50 ppm FA-238 4-Pin 3.2x2.5x0.7 mm Q22FA2380000112
Specifications
| Country of Origin | India |
|---|---|
| Frequency range | 16 MHz to 60 MHz |
| Brand | Epson |
| Height | 0.7mm |
| Length | 3.2mm |
| Model | Q22FA2380000112 |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | FA-238 |
| Maximum Operating Temperature | 85°C |
| Package Type | FA-238 |
| Minimum Operating Temperature | -40°C |
| Interfaces | LAN ISM band radio, Clock for MPU |
| External Dimensions | 3.2 x 2.5 x 0.7 mm |
| Standards/Approvals | REACH, RoHS |
| Pin Count | 4 |
| Standard Frequency | 20MHz |
| Load Capacitance | 12pF |
| Series Resistance | 80Ω |
| Overtone order | Fundamental |
Key Features
- Operates within a frequency range of 16 MHz to 60 MHz providing versatile application support.
- Compact FA-238 package measuring 3.2 mm length, 2.5 mm width, and 0.7 mm height.
- Equipped with 4 pins suitable for surface mount technology (SMT) implementations.
- Features a fundamental overtone order for stable and accurate oscillation.
- Compliant with REACH and RoHS standards ensuring environmental and safety conformity.
- Designed for use in mobile phones, Bluetooth, WLAN ISM band radios, and MPU clock applications.
- Wide operating temperature range from -40°C to 85°C ensuring reliable performance in varied environments.
- Series resistance of 80Ω sustaining signal integrity during operation.
Product Description
The Epson Q22FA2380000112 is a 20 MHz miniature surface mount crystal unit from the FA-238 series. This crystal offers a frequency tolerance of ±50 ppm and is designed in a low profile ceramic case measuring 3.2 x 2.5 x 0.7 mm, making it ideal for compact electronic devices.
Its 4-pin surface mount package supports fundamental overtone order oscillation, ensuring precision frequency generation suitable for industrial electronic components. Its load capacitance is 12pF, optimized for stable oscillator circuits.
This FA-238 crystal unit operates reliably across a wide temperature range from -40°C to 85°C with a series resistance of 80Ω, making it suitable for use in mobile phones, Bluetooth modules, WLAN ISM band radios, and microprocessor unit clock applications.
Frequency range: 16 MHz to 60 MHz. Package type: FA-238 low-profile surface mount. Pin count: 4 pins for SMT installation. Load capacitance: 12pF for frequency stability. Operating temperature: -40°C to 85°C for broad environmental use.
Series resistance: 80Ω for signal integrity. Applications include mobile communications and timing circuits.
Ideal for industrial, telecommunications, and embedded systems requiring compact and reliable frequency references. Available packaged on reels for efficient insertion into automated production lines.
Explore more electronics components and Crystal Units available in the EnvMart electronics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The frequency range of this crystal unit is from 16 MHz to 60 MHz.
This model has a load capacitance of 12 pF, which is optimized for stable oscillator circuits.
The FA-238 package measures 3.2 mm in length, 2.5 mm in width, and 0.7 mm in height.
The series resistance of this crystal unit is 80Ω, which helps sustain signal integrity during operation.
It operates reliably across a wide temperature range from -40°C to 85°C.
This unit supports surface mount technology (SMT) with a 4-pin configuration.
It is designed for use in mobile phones, Bluetooth modules, WLAN ISM band radios, and microprocessor unit clock applications.
This unit is compliant with REACH and RoHS standards, ensuring environmental and safety conformity.
The overtone order for this crystal unit is fundamental, ensuring stable and accurate oscillation.
The model number of this crystal unit is Q22FA2380000112.
This crystal unit is manufactured in India.
This unit is classified under electronics components, specifically as a crystal unit.
