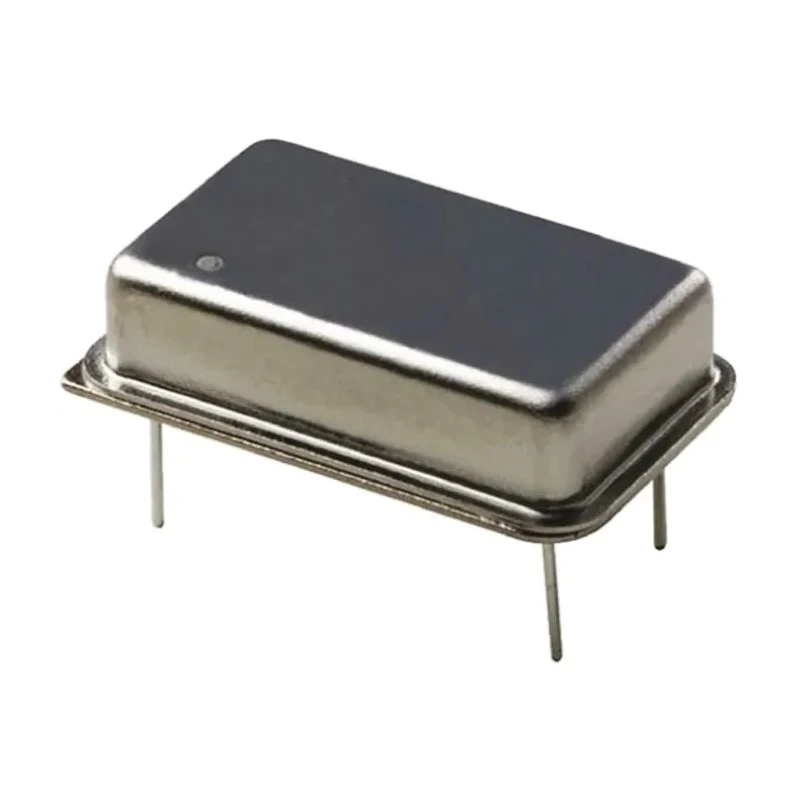

QANTEK 50MHz Clock Oscillator ±50 ppm HCMOS 14-Pin DIP-14 QX14T50B50.00000B50TT
Specifications
| Country of Origin | China |
|---|---|
| Brand | QANTEK |
| Height | 5.08mm |
| Length | 20.8mm |
| Model | QX14T50B50.00000B50TT |
| Packaging | Tube |
| Width | 13.2mm |
| Mount Type | Through Hole |
| Series | QX14 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 50MHz |
| Package Type | DIP-14 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Load Capacitance | 50pF |
| Oscillator Type | Clock |
| Output Level | HCMOS |
| IQD, 50MHz Crystal Oscillator, ±100ppm HCMOS, TTL, 14-Pin PDIP LFSPXO003203Brand | IQD |
| Crystal oscillator,F1100E-500 50MHzBrand | Fox Electronics |
Key Features
- Operates at a frequency of 50MHz with high precision.
- Equipped with a 14-pin Dual-in-Line (DIP-14) package for easy mounting.
- Maintains frequency stability within ±50 ppm for reliable timing.
- Supports tristate function (Enable/Disable) for control flexibility.
- Has a maximum supply voltage of 5V suitable for a wide range of circuits.
- Designed for through-hole mount type ensuring robust soldering on PCBs.
- Wide operating temperature range from -40°C to 85°C for industrial applications.
- Hermetically sealed package enhances reliability and minimizes aging effects.
Product Description
QANTEK QX14T50B50.00000B50TT is a 50MHz clock oscillator designed for precision timing applications in industrial and electronic devices. This clock oscillator features ±50 ppm frequency stability and outputs HCMOS logic levels. It is housed in a standard 14-pin Dual-in-Line (DIP) package, making it compatible with industry-standard sockets and PCBs.
The oscillator supports a tristate enable/disable function, allowing flexible operational control in various circuit designs. With a maximum supply voltage of 5V and a load capacitance of 50pF, it delivers stable performance suitable for numerous electronic and industrial applications.
Designed to operate reliably over a wide temperature range from -40°C to 85°C, this oscillator is ideal for harsh environments and demanding industrial settings. The hermetically sealed package ensures durability, reducing aging and maintaining consistent output frequency over time.
Compliance with RoHS directives guarantees that the product meets environmental and safety requirements. The compact footprint with dimensions of approximately 20.8mm length, 13.2mm width, and 5.08mm height facilitates integration into various PCB layouts.
Operates at 50MHz frequency with ±50 ppm stability. 14-pin DIP package ensures easy installation and industry compatibility. HCMOS output level compatible with modern digital circuits. Supports tristate enable/disable for operational control.
Maximum supply voltage rating is 5V. Wide temperature range from -40°C to 85°C for industrial use. Hermetically sealed package for longevity and reliability. Load capacitance of 50pF for consistent oscillation performance.
RoHS compliant for environmental safety.
This QANTEK clock oscillator is suitable for precision timing applications across industrial, manufacturing, laboratory, and electronics sectors. It ensures long-term stable clock signals for microcontrollers, communication equipment, and other digital logic circuits.
Explore the Electronics Components category on EnvMart for a wide selection of reliable crystal Oscillators and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this clock oscillator is 50MHz, providing high precision for timing applications.
The maximum supply voltage for this model is 5V, making it suitable for a variety of electronic circuits.
This oscillator operates over a wide temperature range from -40°C to 85°C, suitable for industrial applications.
It is housed in a 14-pin Dual-in-Line (DIP-14) package, ensuring compatibility with industry-standard sockets and PCBs.
The frequency stability of this oscillator is ±50 ppm, ensuring reliable timing performance.
Yes, this model supports a tristate enable/disable function, allowing for flexible operational control in circuit designs.
The load capacitance for this oscillator is 50pF, which contributes to its consistent oscillation performance.
The dimensions of this clock oscillator are approximately 20.8mm in length, 13.2mm in width, and 5.08mm in height.
This oscillator provides HCMOS output levels, making it compatible with modern digital circuits.
Yes, this oscillator is RoHS compliant, ensuring it meets environmental and safety requirements.
This model is designed for through-hole mounting, ensuring robust soldering on PCBs.
The country of origin for this clock oscillator is China.
