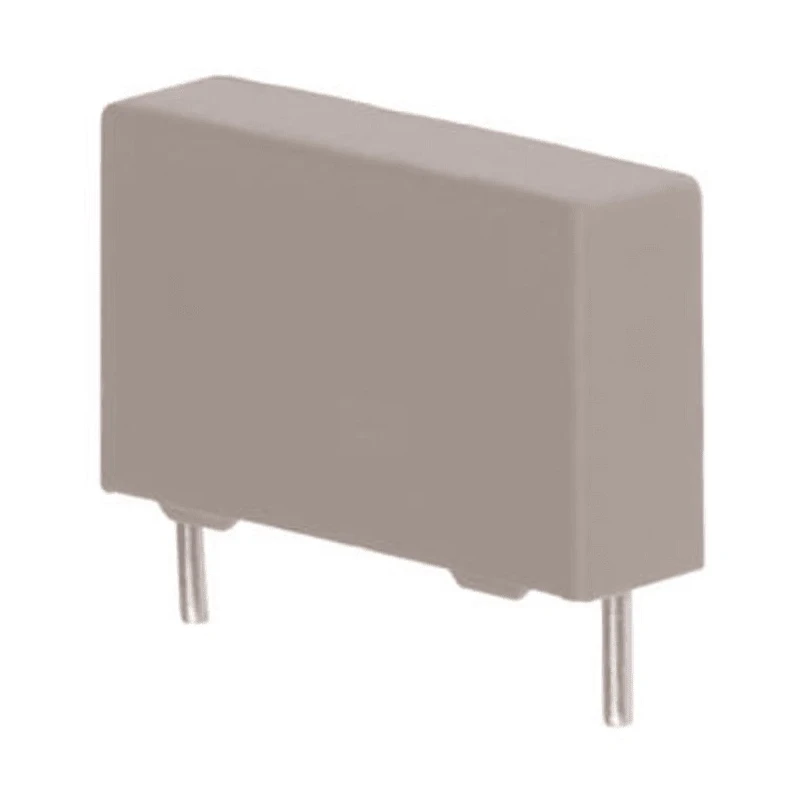

Vishay MKP 338 Film Capacitor X1, ±20 %, 220 nF 1000 V dc 440 V ac Through Hole BFC233860224
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 23mm |
| Length | 31mm |
| Model | BFC233860224 |
| Width | 13mm |
| Mount Type | Through Hole |
| Series | MKP 338 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±20 % |
| Capacitance | 220nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Solder |
| Lead Length | 3.5mm |
| Package/Case | Plastic |
| Pin Count | 2 |
| Rated AC Voltage | 440V ac |
| Rated DC Voltage | 1000V dc |
| Lead Pitch | 27.5mm |
| Lead Diameter | 0.8mm |
| Dielectric | Polypropylene |
| Suppression Class | X1 |
Key Features
- High-quality polypropylene dielectric film offers excellent electrical performance.
- Rated DC voltage of 1000 volts and AC voltage of 440 volts.
- Operating temperature range from -55°C to 105°C ensures reliable operation.
- Rectangular plastic case with epoxy resin sealing provides flame retardant properties.
- Lead pitch of 27.5 mm and lead length of 3.5 mm for easy through-hole mounting.
- Complies with IEC 60384-14, UL 60384-14, and EN 60384-14 standards.
- Suppression Class X1 suitable for connection across mains supply.
- Pin diameter of 0.8 mm and total pin count of 2.
Product Description
Vishay BFC233860224 MKP 338 Film Capacitor is a high-reliability X1 class capacitor designed for suppression and EMC applications with a capacitance value of 220 nF and tolerance of ±20 %.
This film capacitor uses polypropylene as the dielectric, providing self-healing properties and stable performance under electrical stress. It has a rated DC voltage of 1000 V and rated AC voltage of 440 V, making it suitable for use in power electronics, industrial equipment, and HVAC systems.
The capacitor is housed in a rectangular plastic case sealed with epoxy resin that is flame retardant (UL 94 V-0), enhancing safety during operation. It features through-hole mounting with a lead pitch of 27.5 mm and a lead length of 3.5 mm, compatible with standard PCB layouts.
The product meets international standards including IEC 60384-14:2013, UL 60384-14, and EN 60384-14:2013, ensuring compliance and safety for global industrial and commercial applications.
High-quality polypropylene dielectric ensures stable capacitance and self-healing capability. Rated for 1000 V dc and 440 V ac voltage withstand levels. Wide operating temperature range from -55°C up to 105°C. Flame retardant plastic case with epoxy resin sealing for enhanced safety.
Pin diameter of 0.8 mm and 2-pin configuration for secure mounting. Lead pitch of 27.5 mm and length of 3.5 mm for through-hole mounting. Suppression Class X1 capacitors designed to reduce electromagnetic interference. Complies with IEC, UL, and EN standards for reliability and safety.
This capacitor is widely used in industrial electronics, power supplies, consumer electronics, and other equipment requiring suppression components for electromagnetic compatibility (EMC) and surge protection.
Ensure proper use only in suitable circuits; the capacitor should not be used where failure could cause electric shock. Explore more Film Capacitors and related electronic components at EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay MKP 338 Film Capacitor has a capacitance value of 220 nF.
It is rated for a DC voltage of 1000 V and an AC voltage of 440 V.
The operating temperature range is from -55°C to 105°C.
This model supports through-hole mounting.
The lead pitch is 27.5 mm and the lead length is 3.5 mm.
The pin diameter is 0.8 mm and it has a total pin count of 2.
It uses polypropylene as the dielectric material, providing self-healing properties.
It complies with IEC 60384-14, UL 60384-14, and EN 60384-14 standards.
The capacitor is housed in a plastic case sealed with epoxy resin, which is flame retardant.
It is suitable for power electronics, industrial equipment, and HVAC systems, particularly for suppression and EMC applications.
The tolerance level of this model is ±20%.
The dimensions are 23 mm in height, 31 mm in length, and 13 mm in width.
