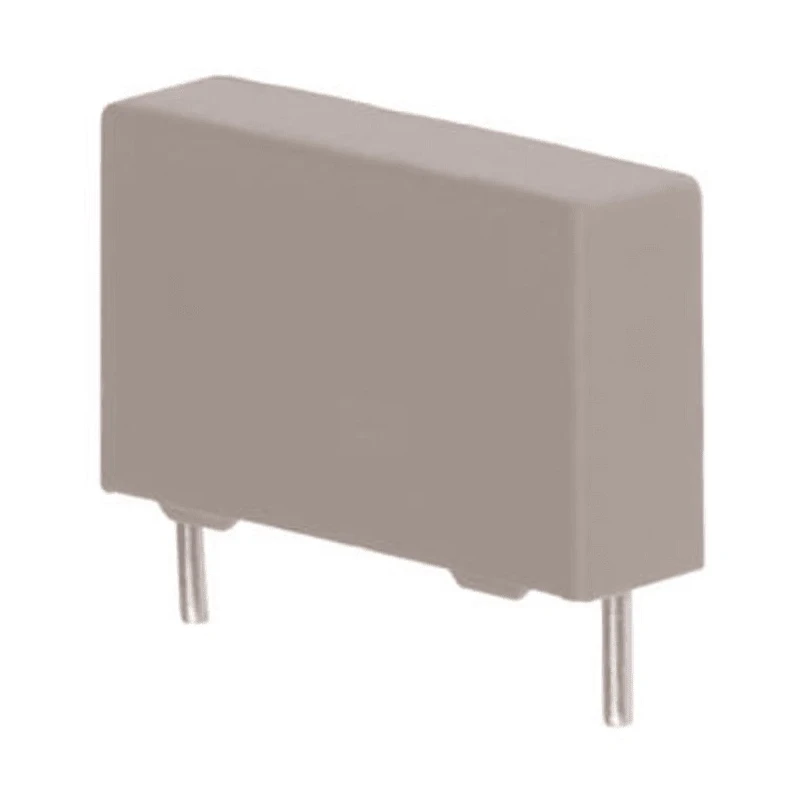

Vishay MKP 338 Film Capacitor X1 ±20% 150nF 1000V dc 440V ac Through Hole BFC233860154

Vishay BFC233860154 MKP 338 Film Capacitor is a high-quality, polypropylene film capacitor designed for use in electronic components and power circuits. It features a capacitance of 150nF with a tolerance of ±20%, suitable for applications requiring precise capacitance values.

This capacitor is rated for a maximum DC voltage of 1000V and an AC voltage of 440V, ensuring dependable performance in demanding mains supply environments. The capacitor is designed for through-hole mounting with a lead pitch of 22.5mm and includes two solder-type pins with a lead diameter of 0.8mm and a lead length of 3.5mm, ensuring easy integration with PCB layouts.

The product is housed in a plastic case sealed with epoxy resin, providing flame-retardant properties compliant with UL 94 V-0 standards. It operates effectively across a wide temperature range from -55°C to +105°C, suitable for industrial, laboratory, and commercial electronic applications. The dielectric material used is polypropylene, known for its low dielectric loss and self-healing characteristics.

This capacitor conforms to multiple international standards including EN 60384-14:2013, IEC 60065, and UL 60384-14, highlighting its safety and quality assurance for use in electromagnetic interference suppression (suppression class X1) applications in AC power lines.

Its compact dimensions of 26mm length, 12mm width, and 22mm height make it suitable for various circuit designs without occupying excessive board space. The capacitor is self-repairing and designed for direct connection across mains supply circuits but should not be used where capacitor failure could expose users to electric shock risk.

Polypropylene dielectric film construction ensures high stability and low dissipation. Rated AC voltage of 440V and DC voltage rating of 1000V ensures reliable operation in power circuits. Plastic package with epoxy sealing resin offers flame retardancy and durability.

Lead pitch of 22.5mm and pin count of 2 suitable for through-hole PCB mounting. Operating temperature range from -55°C to 105°C supports diverse environmental conditions. Complies with standards EN 60384-14:2013, IEC 60065, UL 60384-14 among others for safety and performance.

Suppression class X1 suitable for electromagnetic interference suppression in mains circuits. Lead diameter of 0.8mm and lead length of 3.5mm facilitate secure solder connections.

This Film Capacitor is ideal for industrial, laboratory, construction, HVAC, manufacturing, and commercial electronic applications requiring stable capacitance components for power supply filtering and noise suppression.
