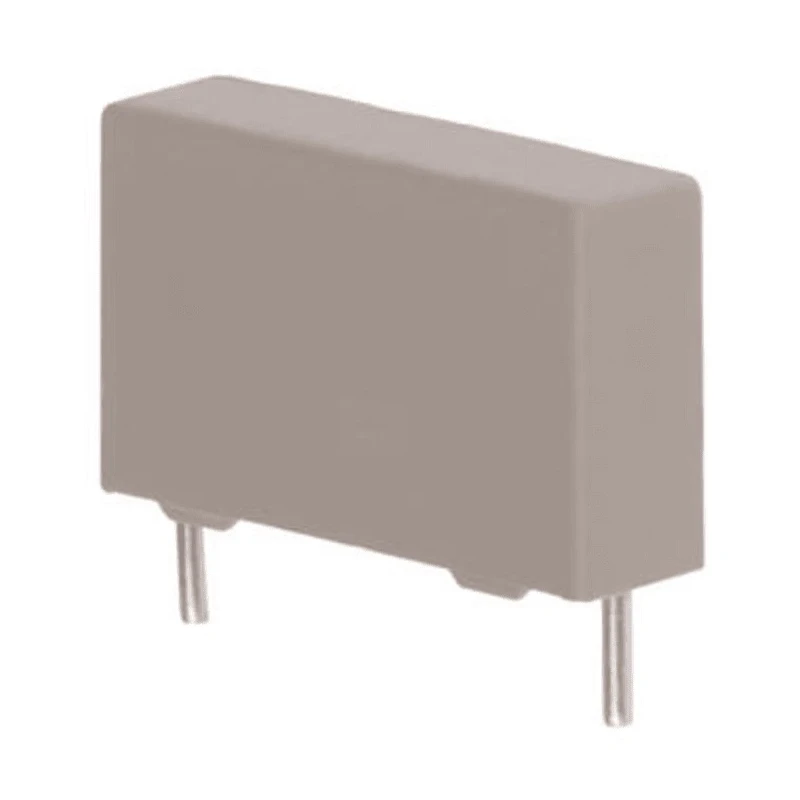

Vishay MKP 338 Film Capacitor X1, ±20 % Tolerance, 22 nF Capacitance, 1000 V dc 440V ac, Through Hole, Model BFC233860223

Vishay BFC233860223 MKP 338 Film Capacitor is a high-quality passive component designed for use in electronic and electrical assemblies requiring reliable capacitive performance.

This film capacitor features a capacitance of 22 nF with a tolerance of ±20 %, supporting a rated DC voltage of 1000 V and AC voltage up to 440 V. Its polypropylene dielectric material provides excellent electrical stability, low dielectric losses, and self-healing properties, making it suitable for power supply filtering and interference suppression.

The capacitor is mounted through hole with a lead pitch of 15 mm, lead length of 3.5 mm, and a lead diameter of 0.8 mm, allowing robust mechanical and electrical connections on printed circuit boards.

It is housed in a flame-retardant plastic case compliant with UL 94 V-0 standards, with epoxy sealing resin for enhanced durability and safety. The compact physical dimensions - length 17.5 mm, height 13.5 mm, and width 7 mm - enable integration in space-constrained applications.

Operating temperature ranges from -55°C to 105°C, suitable for industrial, commercial, and household electronics operating in varying environmental conditions.

This capacitor meets international standards IEC 60384-14:2013, EN 60384-14:2013, IEC 60065, and UL 60384-14, ensuring quality and safety compliance. It is CSA and UL recognized and designed specifically as a suppression class X1 capacitor for connecting across mains supplies to reduce transient disturbances.

Intended primarily for applications in power electronics, filtering, and AC mains interference suppression within industrial, laboratory, commercial, and HVAC systems. Features a through hole mount type allowing easy PCB integration.

Rated DC voltage of 1000 V and AC voltage of 440 V provides reliable performance in power electronics. Polypropylene dielectric enhances stability and low loss operation. Designed with a plastic package case ensuring flame retardancy and durability.

Operates effectively in temperature ranges from -55°C to 105°C. Lead pitch measures 15 mm with lead length of 3.5 mm and diameter of 0.8 mm for secure soldering. Complies with IEC 60384-14:2013, EN 60384-14:2013, IEC 60065, and UL 60384-14 standards.

Suppression class X1 ensures safety in mains voltage connection applications. Compact dimensions of 17.5 mm length, 13.5 mm height, and 7 mm width facilitate high-density PCB assembly. Pin count of 2 suits standard capacitor configurations.
