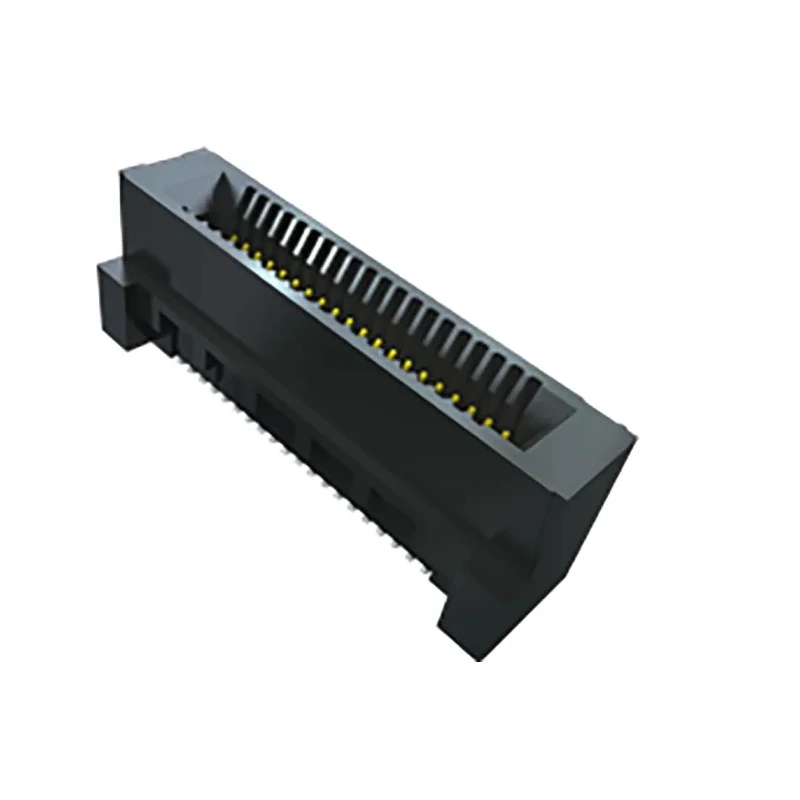

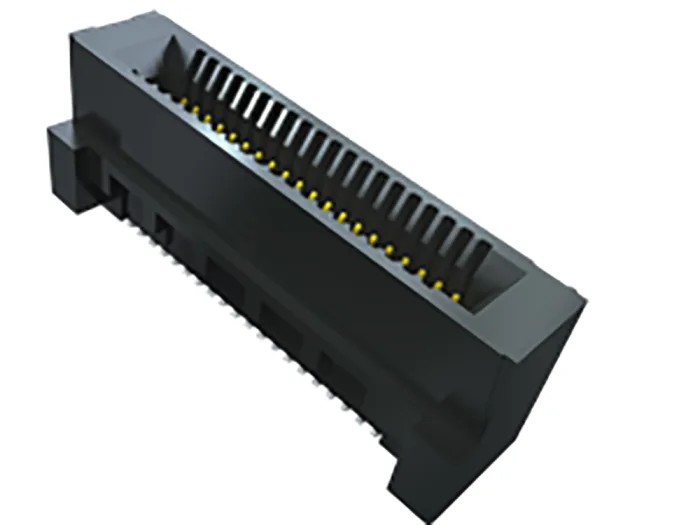

Samtec Series Vertical Edge Connector Female, Surface Mount, 60 Contacts, 0.8 mm Pitch, 2 Row, Solder Termination HSEC8-DV
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 2.8A |
| Model | HSEC8-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HSEC8-DV |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
| Card Thickness | 1.6mm |
Key Features
- Designed for vertical orientation with 2 rows of contacts.
- Supports current up to 2.8A with gold-plated beryllium copper contacts.
- Pitch of 0.8 mm ensures compact and reliable connection.
- Surface mount type ideal for PCB assembly with solder termination.
- Operates reliably between -55°C to 125°C.
- Supports card thickness of 1.6 mm for edge card compatibility.
- Liquid crystal polymer housing provides durability and stability.
- Complies with HSEC8-DV series standards for high speed and signal integrity.
Product Description
Samtec HSEC8-DV is a series of vertical edge connectors designed specifically for high-speed electronic applications. This female connector features 60 contacts arranged in 2 rows with a 0.8 mm pitch, optimized for surface mounting and solder termination. It supports a robust current of 2.8A and is rated for voltages up to 240V AC, making it suitable for a wide range of electronic assembly and infrastructure hardware.
The contact material is beryllium copper alloy with gold plating to ensure reliability, excellent conductivity, and longevity, supporting up to 56 Gbps PAM4 performance. The housing material is composed of liquid crystal polymer, providing excellent mechanical strength and thermal stability in operating temperatures ranging from -55°C to 125°C. Designed to accommodate edge cards with a thickness of 1.6 mm, the connector ensures a secure and precise fit for electronic components requiring reliable interconnection.
Typical applications include high-speed data transmission systems, PCI Express 3.0, 4.0, and 5.0 interfaces, and other industrial, telecommunications, and computing environments requiring durable and high-performance connectors. The connector's compact form factor and optimized signal integrity contacts enhance performance in demanding electrical and electronic systems.
Vertical orientation with 60 contacts in 2 rows for high-density connections. Beryllium copper alloy contacts with gold plating for high conductivity and corrosion resistance. Surface mount design with solder termination for secure PCB attachment.
Supports a wide temperature range from -55°C to +125°C. Compatible with 1.6 mm thick edge cards. Rated voltage of 240V AC and maximum current of 2.8A. Liquid crystal polymer housing for durability and mechanical strength.
Designed for high-speed data applications including PCI Express standards. Manufactured in the United States with high-quality standards.
This product is ideal for engineers and technicians seeking reliable Edge Connectors for telecommunications, computing, industrial automation, and electronic manufacturing applications. Browse the extensive Samtec range at EnvMart for compatible connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 2.8A.
It operates reliably within a temperature range of -55°C to 125°C.
This connector features 60 contacts arranged in 2 rows.
The pitch size of the contacts is 0.8 mm, ensuring a compact connection.
It uses solder termination for secure PCB attachment.
The housing is made of liquid crystal polymer, providing mechanical strength and thermal stability.
The voltage rating for this model is 240V AC.
It is designed to accommodate edge cards with a thickness of 1.6 mm.
This connector is suitable for high-speed data transmission systems and PCI Express interfaces.
The contacts are made from beryllium copper alloy and are gold plated for enhanced conductivity.
The optimized signal integrity contacts enhance performance in demanding electrical systems.
This connector is manufactured in the United States.
