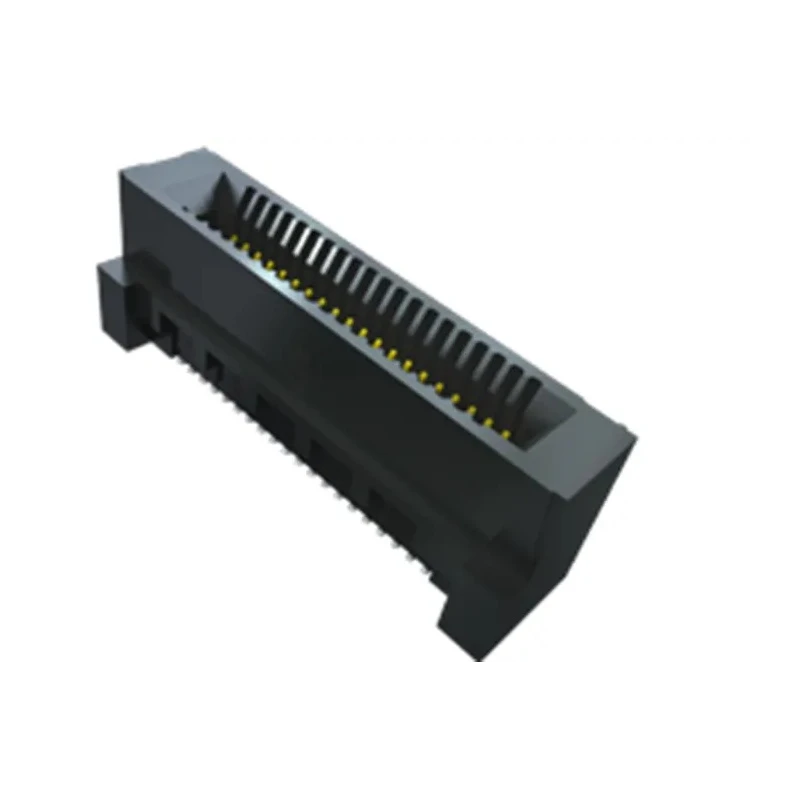

Samtec Series Vertical Edge Connector Female, Surface Mount, 40-Contacts, 0.8 mm Pitch, 2 Rows, Solder Termination HSEC8-DV
Specifications
| Country of Origin | Costa Rica |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 2.8A |
| Model | HSEC8-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HSEC8-DV |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
| Card Thickness | 1.6mm |
Key Features
- Vertical orientation with surface mount mounting type ensures secure board attachment.
- 40 gold-plated contacts arranged in 2 rows provide reliable electrical connections.
- Contact material is beryllium copper alloy for excellent conductivity and durability.
- Supports currents up to 2.8A and voltage ratings up to 240V.
- Operates reliably between -55°C and 125°C, suitable for harsh environments.
- Card thickness compatibility is 1.6 mm for standard edge cards.
- Housing made of liquid crystal polymer ensures strength and stability.
- Connector uses solder termination type for robust electrical and mechanical connection.
Product Description
Samtec HSEC8-DV series vertical edge connector (model HSEC8-DV) is a female, surface mount connector with 40 gold-plated contacts in two rows and a pitch of 0.8 mm. It is designed to provide reliable high speed signal and power connections for electronic assemblies.
The connector supports a maximum current of 2.8A and a voltage rating of 240V, making it ideal for various industrial, commercial, and computing applications. Its beryllium copper alloy contacts ensure superior electrical conductivity and durability, while the liquid crystal polymer housing offers excellent structural strength and thermal resistance.
Operating temperature ranges from -55°C to 125°C allow this connector to perform in extreme environments. The solder termination method provides a secure and lasting connection on printed circuit boards.
With a card thickness compatibility of 1.6 mm, this edge connector suits a variety of PCB edge card designs. It is optimized for PCI Express 3.0, 4.0, and 5.0 protocols and delivers signal integrity performance supporting data rates up to 56 Gbps PAM4.
Vertical orientation and surface mounting type provide ease of use and reliable installation. Gold plated contacts offer excellent corrosion resistance and conductivity. Beryllium copper alloy contact material ensures durability and performance.
Wide operating temperature range meets industrial application needs. Solder type termination ensures strong mechanical and electrical joint. Compatible with high-speed data protocols for modern electronics. Designed for edge card socket applications with 1.6 mm card thickness.
Supports power and signal transmission with up to 2.8A current and 240V voltage.
This connector series is suited for electronics manufacturing, industrial automation, telecommunications, computing equipment, and other critical applications requiring compact, reliable Edge Connectors.
Discover the full range of high-quality connectors and electronic components at EnvMart for your projects and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 2.8A and a voltage rating of 240V.
The contacts are arranged with a pitch of 0.8 mm.
The contacts are made of beryllium copper alloy, while the housing is constructed from liquid crystal polymer.
It operates reliably between -55°C and 125°C, making it suitable for harsh environments.
The connector has 40 gold-plated contacts arranged in 2 rows.
It uses a solder termination type for robust electrical and mechanical connections.
This model is compatible with edge cards that have a thickness of 1.6 mm.
It is designed for various industrial, commercial, and computing applications, optimized for PCI Express protocols.
The connector features a vertical orientation and is designed for surface mounting.
Gold plating provides excellent corrosion resistance and conductivity for reliable electrical connections.
The country of origin for this connector is Costa Rica.
