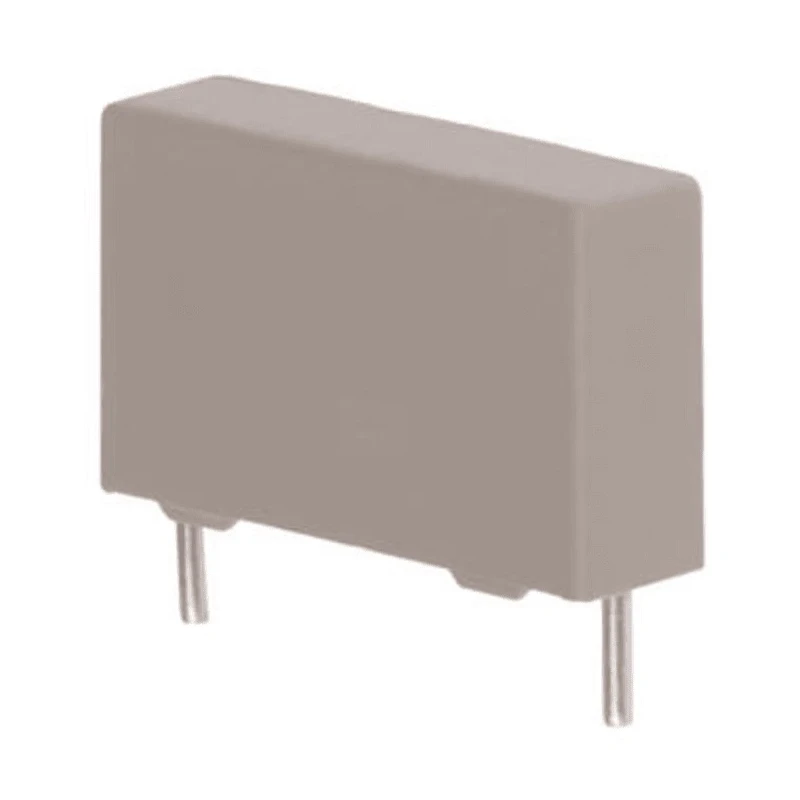

Vishay MKP 338 Film Capacitor X1, ±20 %, 22 nF 1000 V dc 440V ac Through Hole BFC233810223
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 11mm |
| Length | 17.5mm |
| Model | BFC233810223 |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | MKP 338 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±20 % |
| Capacitance | 22nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Through Hole |
| Rated AC Voltage | 440V ac |
| Rated DC Voltage | 1000V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.6mm |
| Dielectric | Polyester (MKP) |
| Suppression Class | X1 |
Key Features
- Capacitance of 22 nF suitable for X1 class applications.
- Rated DC voltage is 1000 V dc and rated AC voltage is 440 V ac.
- Mount type is through-hole with a lead pitch of 15 mm.
- Operating temperature ranges from -55°C to 105°C.
- Dielectric material is polyester (MKP) with epoxy resin sealing and flame retardancy.
- Terminal type is through hole, lead diameter 0.6 mm.
- Self-repairing film capacitor from the MKP 338 series optimized for 440 VAC applications.
- Designed for connecting directly across mains supply with safety precautions for electric shock risk.
Product Description
Vishay BFC233810223 MKP 338 Film Capacitor is a high-reliability, X1 class suppression capacitor designed for connection directly across mains supplies. It features a capacitance of 22 nF with ±20 % tolerance and is rated for 1000 V dc and 440 V ac operation. The dielectric used is polyester film (MKP) enclosed in a flame-retardant epoxy resin case, providing enhanced safety and durability.
These capacitors are through-hole mounted with a 15 mm lead pitch and have compact dimensions of 17.5 mm length, 5 mm width, and 11 mm height, suitable for various industrial electronic assemblies. The lead diameter is 0.6 mm ensuring stable and secure solder connections.
The operating temperature range from -55°C to 105°C ensures reliable performance in harsh environmental conditions. Being self-repairing, it enhances product longevity by minimizing capacitor failure risks under surge conditions.
Standards and regulatory approvals include IEC 60065, IEC 60384-14:2013, UL 60384-14, and EN 60384-14:2013, ensuring compliance with international safety and quality norms. The capacitor comes from the MKP 338 series optimized specifically for 440 Vac power applications with X1 suppression class for interference filtering.
This capacitor is ideal for industrial, electronic, power supply, and electrical control systems where high voltage film capacitors are needed to suppress electromagnetic interference and to ensure system protection and reliability.
Capacitance of 22 nF suitable for X1 class applications. Rated DC voltage is 1000 V dc and rated AC voltage is 440 V ac. Mount type is through-hole with a lead pitch of 15 mm. Operating temperature ranges from -55°C to 105°C.
Dielectric material is polyester (MKP) with epoxy resin sealing and flame retardancy. Dimensions include length 17.5 mm, width 5 mm, and height 11 mm. Terminal type is through hole, lead diameter 0.6 mm. Certifications include IEC 60065, IEC 60384-14:2013, UL 60384-14, and EN 60384-14:2013 compliance.
Self-repairing film capacitor from the MKP 338 series optimized for 440 VAC applications. Designed for connecting directly across mains supply with safety precautions for electric shock risk. For further exploration of Film Capacitors and related components, browse the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 22 nF with a tolerance of ±20%.
It is rated for a DC voltage of 1000 V and an AC voltage of 440 V.
The operating temperature range is from -55°C to 105°C.
The dielectric material is polyester (MKP) with epoxy resin sealing.
It has dimensions of 17.5 mm in length, 5 mm in width, and 11 mm in height.
The lead pitch is 15 mm and the lead diameter is 0.6 mm.
This unit is designed for through-hole mounting.
It complies with IEC 60065, IEC 60384-14:2013, UL 60384-14, and EN 60384-14:2013.
It is classified as an X1 suppression capacitor, suitable for interference filtering.
It is designed for connecting directly across mains supplies, making it suitable for industrial, electronic, power supply, and electrical control systems.
Yes, it is a self-repairing film capacitor, which enhances longevity by minimizing failure risks under surge conditions.
The country of origin for this capacitor is India.
