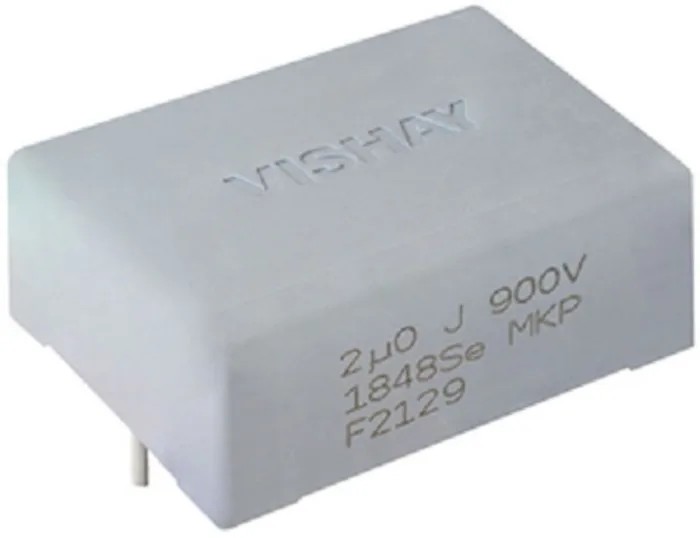

Vishay MKP1848Se DC-Link Polypropylene Film Capacitor 2μF 900V dc Through Hole MKP1848Se
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | Vishay |
| Height | 12mm |
| Length | 31.5mm |
| Model | MKP1848Se |
| Width | 24mm |
| Mount Type | Through Hole |
| Series | MKP1848Se DC-Link |
| Maximum Operating Temperature | 105°C |
| Tolerance | 10 % |
| Capacitance | 2μF |
| Minimum Operating Temperature | -40°C |
| Dissipation Factor | 0.003% |
| Lead Length | 6mm |
| Standards/Approvals | IEC 61071 |
| Package/Case | Plastic |
| Pin Count | 2 |
| Rated DC Voltage | 900V dc |
| Lead Pitch | 27.5mm |
| Lead Diameter | 1mm |
| Automotive Standard | AEC-Q200 |
| Equivalent Series Resistance ESR | 20mΩ |
Key Features
- Offers a capacitance tolerance of 10% ensuring precise performance.
- Features a high rated DC voltage of 900 V dc suitable for demanding applications.
- Constructed using metallized polypropylene film for high ripple current capability.
- Designed with low ESR and low ESL for efficient operation.
- Includes a flame retardant plastic case enhancing safety and durability.
- Operates effectively across a temperature range from -40°C to 105°C.
- Complies with automotive standard AEC-Q200 and IEC 61071 approvals.
- Lead pitch of 27.5mm and lead length of 6mm allow straightforward through hole assembly.
Product Description
Vishay MKP1848Se is a high-performance DC-Link Polypropylene Film Capacitor offering 2μF capacitance and a rated voltage of 900 V dc designed for through hole mounting on printed circuit boards.
This capacitor utilizes metallized polypropylene film with low inductive wound cell elements, delivering superior ripple current capability with low equivalent series resistance (ESR) and equivalent series inductance (ESL) to ensure efficient electrical performance in demanding power electronic circuits.
Packaged in a flame retardant plastic case, it is designed for applications requiring safety and reliability, meeting the stringent IEC 61071 standard and automotive-grade AEC-Q200 qualification for enhanced durability under harsh conditions.
The device supports a wide operating temperature range from -40°C to 105°C, enabling use in automotive, industrial, and other high-stress environments. Its precise capacitance tolerance of 10% and minimized dissipation factor (0.003%) make it ideal for circuits requiring energy efficiency and stability.
Dimensions of 31.5 mm length, 24 mm width, and 12 mm height with a 27.5 mm lead pitch and 6 mm lead length ensure easy integration through hole on printed circuit boards with a lead diameter of 1 mm and 2-pin configuration.
Manufactured in Portugal, this Vishay capacitor is suited for industrial electronic assemblies including power conditioning, filtering, energy storage, and DC link applications in industrial, automotive, and power electronics sectors.
Offers a capacitance tolerance of 10% ensuring precise performance. Features a high rated DC voltage of 900 V dc suitable for demanding applications. Constructed using metallized polypropylene film for high ripple current capability.
Designed with low ESR and low ESL for efficient operation. Includes a flame retardant plastic case enhancing safety and durability. Operates effectively across a temperature range from -40°C to 105°C. Complies with automotive standard AEC-Q200 and IEC 61071 approvals.
Dimensions include Length 31.5mm, Width 24mm, Height 12mm, suitable for PCB mounting. Lead pitch of 27.5mm and lead length of 6mm allow straightforward through hole assembly. Low dissipation factor of 0.003% minimizes energy loss during use.
Explore the Vishay capacitor range on EnvMart for high-quality Film Capacitors designed to meet rigorous industrial and automotive requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MKP1848Se capacitor has a capacitance of 2μF.
This model is rated for a maximum DC voltage of 900V.
It operates effectively across a temperature range from -40°C to 105°C.
The dimensions of this capacitor are 31.5 mm in length, 24 mm in width, and 12 mm in height.
This capacitor is designed for through hole mounting on printed circuit boards.
The lead pitch is 27.5 mm, and the lead length is 6 mm.
It complies with the automotive standard AEC-Q200 and the IEC 61071 standard.
The dissipation factor for the MKP1848Se is 0.003%.
It is constructed using metallized polypropylene film and packaged in a flame retardant plastic case.
The equivalent series resistance (ESR) is 20 mΩ.
This capacitor is suitable for applications in power conditioning, filtering, energy storage, and DC link applications in industrial and automotive sectors.
It is manufactured in Portugal.
