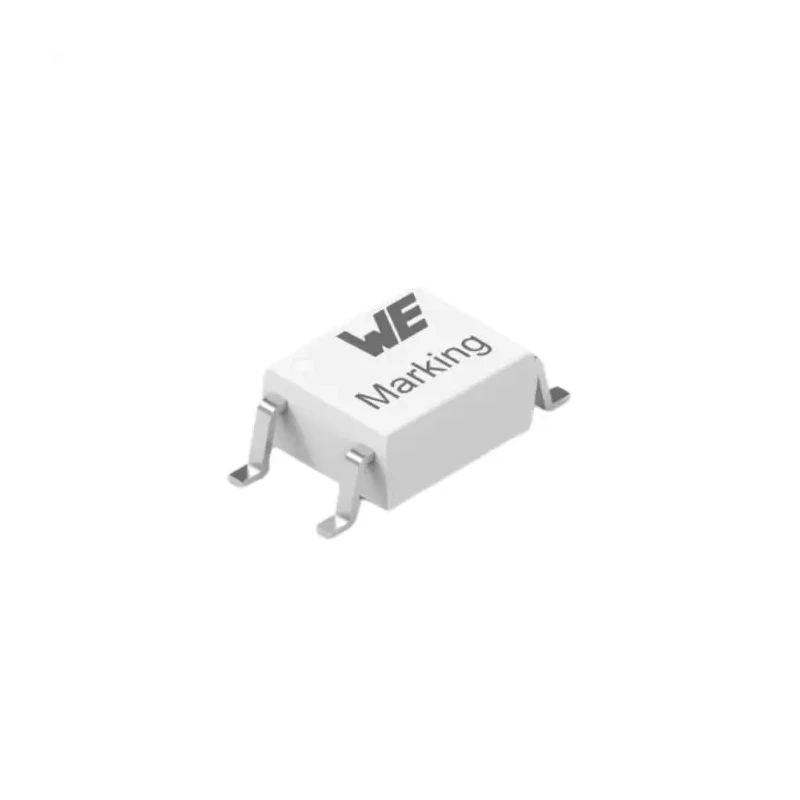

Wurth Elektronik DC Input Phototransistor Surface Mount 4-Pin SOP with 1.4V Forward Voltage 60mA Input Current 140356145000

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik DC Input Phototransistor Surface Mount 4-Pin SOP with 1.4V Forward Voltage 60mA Input Current 140356145000

Name: Wurth Elektronik DC Input Phototransistor Surface Mount 4-Pin SOP with 1.4V Forward Voltage 60mA Input Current 140356145000
Brand: Wurth Elektronik
SKU: 414046
Price: 0.6 USD
Availability: InStock



Category Phototransistor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Packaging	Tape & Reel
Mount Type	Surface
Output type	Phototransistor
Series	WL-OCPT
Maximum Operating Temperature	110°C
Package Type	SOP
Minimum Operating Temperature	-55°C
Maximum input current	60mA
Number Of Channels	1
Standards/Approvals	UL
Maximum Forward Voltage	1.4V
Number of Pins	4
Input Current Type	DC
Typical Rise Time	3μs
Maximum Current Transfer Ratio	600%
Typical Fall Time	4μs
Minimum Current Transfer Ratio	50%

Key Features

Compact 4-pin SOP surface mount package suited for PCB integration.
Operates with a maximum forward voltage of 1.4V and input current up to 60mA.
High isolation voltage of 3750Vrms ensuring signal integrity and safety.
Fast typical rise and fall times of 3μs and 4μs respectively for rapid switching.
Wide operating temperature range from -55°C to +110°C for versatile industrial applications.
UL certified and RoHS compliant, meeting industrial safety and environmental standards.
White plastic housing suitable for varied electronic assemblies.
Ideal for use in electronic circuits requiring phototransistor optocouplers for signal isolation and amplification.

Product Description

Wurth Elektronik 140356145000 is a DC input phototransistor in a Surface Mount 4-Pin SOP package, engineered for high performance and reliability in electronic circuitry. It features a collector-emitter voltage rating of 80V and a robust isolation voltage rating of 3750Vrms, which provides exceptional electrical isolation between input and output signals. This phototransistor is housed in a white plastic package designed for efficient PCB mounting and industrial durability.

Operating over a temperature range of -55°C to +110°C, it is suitable for diverse environments including industrial automation, signal processing, and electronic equipment with stringent space constraints. The device delivers fast switching capabilities with typical rise and fall times of 3μs and 4μs respectively, enabling quick response in optoelectronic applications.

Adhering to UL certifications and RoHS directives, the 140356145000 phototransistor ensures compliance with international safety and environmental regulations. It is optimally designed for applications requiring phototransistor-based optocouplers providing electrical isolation, signal transmission, and noise immunity in electronic systems.

Compact 4-pin SOP surface mount package for easy PCB integration. Maximum forward voltage of 1.4V and maximum input current of 60mA. High isolation voltage of 3750Vrms for excellent signal isolation. Fast switching times: typical rise time 3μs, fall time 4μs.

Wide operating temperature range from -55°C to +110°C. UL certified and RoHS compliant for industrial standards. White plastic housing offering robust physical protection.

This Wurth Elektronik phototransistor is ideal for use in electronic component assemblies, industrial automation, and other electronics applications requiring high isolation and fast switching optoelectronic components. Explore more components in the Phototransistor category at EnvMart for comprehensive electronic solutions.
