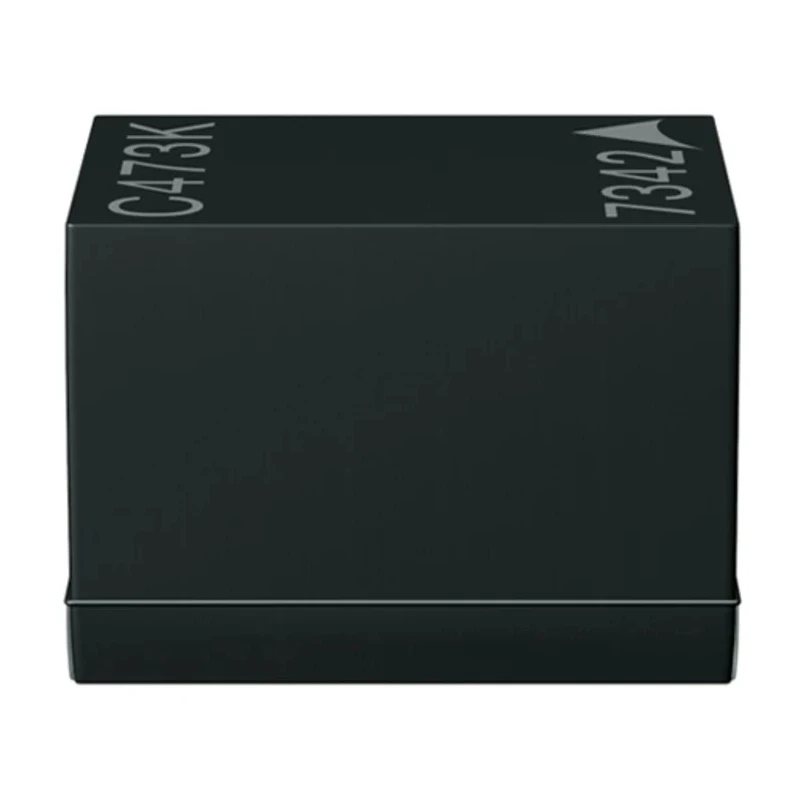

TDK SIMID 1812 Shielded Wirewound Surface Mount Inductor with Ferrite Core 47 μH ±10% 210 mA Idc Q:30 B82432C1473K000
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TDK |
| Height | 3.2mm |
| Length | 4.5mm |
| Model | B82432C1473K000 |
| Depth | 3.2mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 47μH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 210mA |
| Pin Count | 2 |
| Maximum DC Resistance | 2.3Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 12MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Panasonic, ELJPB, 4532 Wire-wound SMD Inductor 47 μH ±10% Wire-Wound 210mA Idc Q | 10Brand: Panasonic |
Key Features
- Rated inductance of 47 microhenries with ±10% tolerance for precision.
- Maximum DC current of 210 mA ensuring stable performance under load.
- Compact 1812 package size with 4.5 mm length and 3.2 mm height and depth for space-efficient mounting.
- High quality factor of minimum 30 at self-resonant frequency around 12 MHz.
- Constructed with ferrite core for improved magnetic characteristics and shielding.
- Meets automotive standard AEC-Q200 for reliability in harsh environments.
- Operating temperature range from -55°C to 150°C for versatile use cases.
- RoHS compliant and environmentally safe with solder termination style.
Product Description
TDK B82432C1473K000 is a shielded wirewound surface mount inductor featuring a ferrite core, ideal for electronic filter circuits, coupling, and decoupling applications in industrial, automotive, and telecommunications sectors. With a nominal inductance of 47 μH and tolerance of ±10%, it ensures precise performance in compact PCB layouts.
The inductor is housed in a standard 1812 package measuring 4.5 mm in length and 3.2 mm in both height and depth, facilitating space-saving designs. It supports a maximum DC current of 210 mA and exhibits a low maximum DC resistance of 2.3 ohms, contributing to efficient circuit operation. The minimum quality factor of 30 and a maximum self-resonant frequency of 12 MHz provide high-frequency reliability necessary for antenna and signal conditioning circuits.
This product complies with automotive standard AEC-Q200, making it suitable for automotive electronics that demand durability under harsh conditions. The operating temperature range from -55°C to 150°C ensures stable operation across diverse environments.
The ferrite core construction offers effective magnetic shielding, minimizing electromagnetic interference in sensitive circuitry. Supplied in tape and reel packaging, it is compatible with automated pick-and-place manufacturing processes, enhancing production efficiency.
Applications include filtering of supply voltages, antenna systems, automotive electronics, telecommunications, and industrial electronics, highlighting its versatility across multiple sectors.
Rated inductance: 47 μH ±10%. Maximum DC current: 210 mA. Package/Case: 1812 standard size. Shielded ferrite core construction. Automotive standard conformant: AEC-Q200. Operating temperature range: -55°C to 150°C. High quality factor of 30 minimum.
Tape & reel packaging. RoHS compliant with solder termination style.
Choose TDK SIMID inductors for reliable, high-performance surface mount inductors optimized for electronic circuit filtering and signal applications. Explore more electronic passive components in our Surface Mount Inductor category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has a rated inductance of 47 μH with a tolerance of ±10%.
It supports a maximum DC current of 210 mA, ensuring stable performance under load conditions.
The 1812 package measures 4.5 mm in length and 3.2 mm in both height and depth.
The inductor has a minimum quality factor of 30 at its self-resonant frequency.
The maximum self-resonant frequency is 12 MHz, providing high-frequency reliability.
It operates within a temperature range of -55°C to 150°C, making it suitable for various environments.
Yes, it meets the automotive standard AEC-Q200, ensuring reliability in harsh conditions.
The inductor is constructed with a ferrite core, which improves magnetic characteristics and shielding.
It is supplied in tape and reel packaging, which is compatible with automated pick-and-place manufacturing processes.
The termination style is solder, suitable for surface mount applications.
The maximum DC resistance is 2.3 ohms, contributing to efficient circuit operation.
It is ideal for electronic filter circuits, coupling, and decoupling applications in industrial, automotive, and telecommunications sectors.
