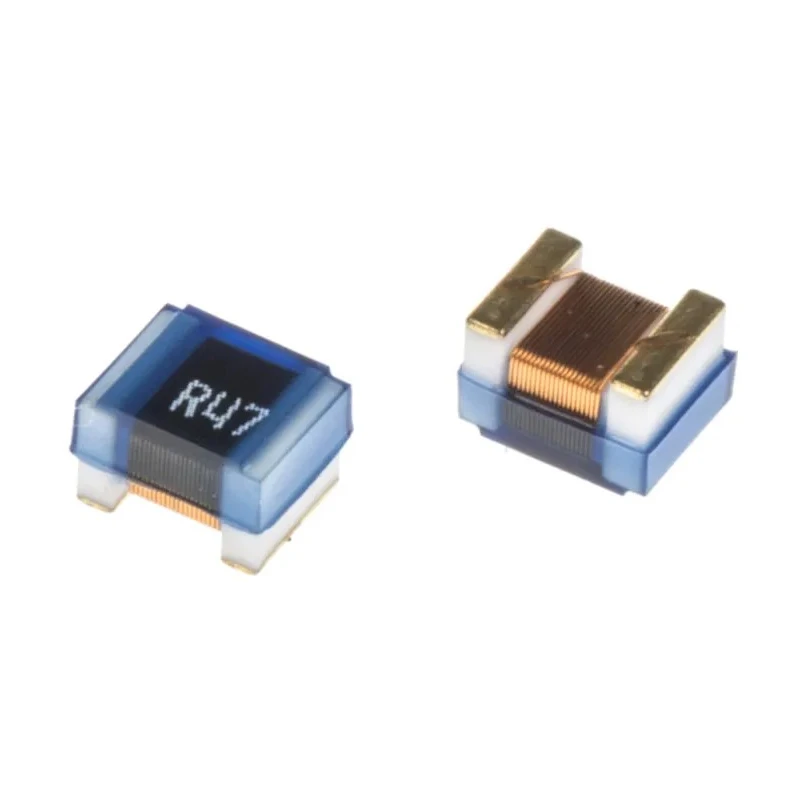

Wurth Elektronik WE-KI 1008A Shielded Wirewound Surface Mount Inductor with Ceramic Core, 0.47μH, 420mA, Q:45 744762247A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.6mm |
| Length | 2.5mm |
| Model | 744762247A |
| Depth | 2mm |
| Series | WE-KI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 0.47μH |
| Standards/Approvals | RoHS |
| Package/Case | 1008A |
| Maximum DC Current | 420mA |
| Maximum DC Resistance | 1170mΩ |
| Maximum Self Resonant Frequency | 480MHz |
| Minimum Quality Factor | 45 |
| Inductor Construction | Wirewound |
Key Features
- Compact 1008A package with dimensions 2.5mm x 2mm x 1.6mm height for surface mounting.
- Constructed with a ceramic core providing high thermal stability and shielding.
- Maximum DC resistance of 1170mΩ ensuring low power loss.
- Operates reliably across a temperature range from -40°C to 125°C.
- High self resonant frequency of 480MHz suitable for RF and wireless LAN applications.
- Wirewound construction offers robust inductance stability and high Q factor.
- Compliant with RoHS standards for environmental safety.
- Manufactured in Malaysia ensuring quality and consistency.
Product Description
Wurth Elektronik 744762247A is a high-performance shielded wirewound surface mount inductor from the WE-KI 1008A series, designed for demanding high frequency applications. This inductor provides a nominal inductance of 0.47μH and supports a maximum DC current rating of 420mA, making it suitable for compact power supplies and RF circuits.
Its compact 1008A surface mount package measures 2.5mm in length, 2mm in depth, and 1.6mm in height, facilitating easy integration in printed circuit boards with limited space. The ceramic core material lends excellent thermal stability and magnetic shielding to the component, optimizing performance even in harsh operating environments ranging from -40°C up to 125°C.
The inductor features a wirewound construction which contributes to a high quality factor (Q factor) of 45 and a maximum self resonant frequency of 480MHz, making it ideal for applications such as wireless LAN, Bluetooth modules, and RF transceivers. Its maximum DC resistance is rated at 1170mΩ, minimizing energy losses during operation.
RoHS compliance assures adherence to environmental standards, and the product is manufactured in Malaysia maintaining quality assurance. Compact 1008A package; dimensions 2.5mm x 2mm x 1.6mm height. Ceramic core with shielding reduces electromagnetic interference.
Maximum DC current 420mA with low resistance of 1170mΩ. Wide operational temperature range from -40°C to 125°C. High self resonant frequency of 480MHz and minimum Q factor 45. Wirewound construction for stability and performance.
RoHS compliant for environmental safety. Ideal for RF communications and high frequency electronic circuits.
This Wurth Elektronik inductor is widely used in industrial electronics, telecommunications, and consumer electronic devices to ensure smooth operation of high frequency components. Its small size and robust design enable it to be a critical component in compact electronic assemblies.
Explore the full range of Surface Mount Inductors and components available on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this inductor is 0.47μH.
This model supports a maximum DC current rating of 420mA.
The dimensions of the 1008A package are 2.5mm in length, 2mm in depth, and 1.6mm in height.
The maximum DC resistance is rated at 1170mΩ, ensuring low power loss during operation.
It operates reliably across a temperature range from -40°C to 125°C.
The maximum self resonant frequency is 480MHz, making it suitable for high frequency applications.
This inductor features a wirewound construction, which contributes to its inductance stability and high quality factor.
The minimum quality factor (Q factor) is 45.
Yes, this model is compliant with RoHS standards for environmental safety.
It is manufactured in Malaysia, ensuring quality and consistency.
This inductor is suitable for applications such as wireless LAN, Bluetooth modules, and RF transceivers.
The core material is ceramic, providing high thermal stability and shielding.
