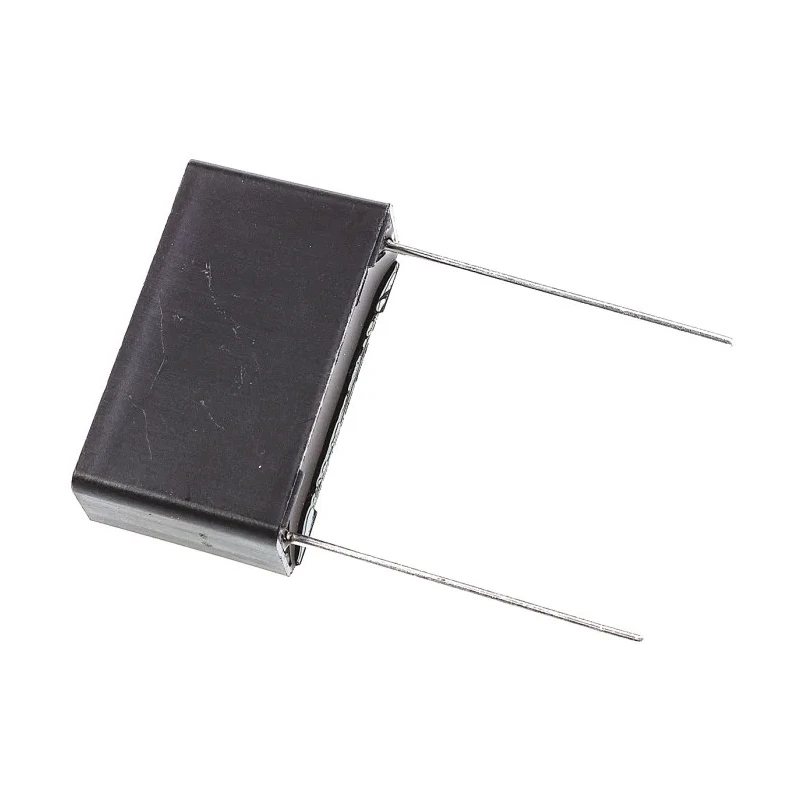

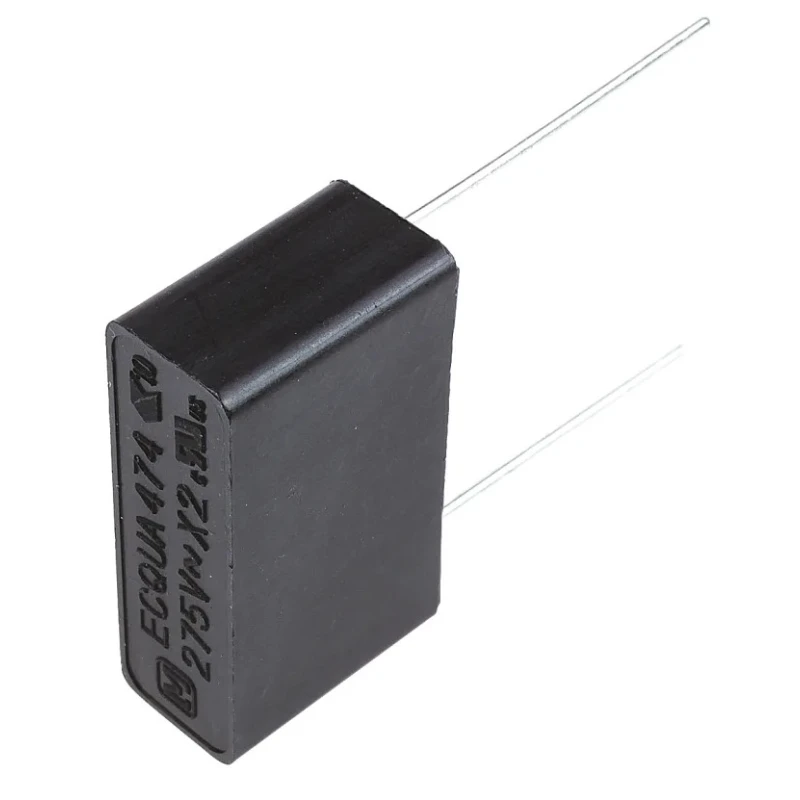

Panasonic ECQUA Film Capacitor X2, ±10 % Tolerance, 470 nF Capacitance, 275V AC Rated Voltage, Through Hole Mount ECQUAAF474K

Free Delivery in India | Lowest Global Shipping Charges

Panasonic ECQUA Film Capacitor X2, ±10 % Tolerance, 470 nF Capacitance, 275V AC Rated Voltage, Through Hole Mount ECQUAAF474K

Name: Panasonic ECQUA Film Capacitor X2, ±10 % Tolerance, 470 nF Capacitance, 275V AC Rated Voltage, Through Hole Mount ECQUAAF474K
Brand: Panasonic
SKU: 408908
Price: 0.75 USD
Availability: InStock



Category Film Capacitor Brand Panasonic Condition New

Specifications

Country of Origin	India
Brand	Panasonic
Height	15mm
Length	26mm
Model	ECQUAAF474K
Packaging	Bag
Width	8.5mm
Mount Type	Through Hole
Series	ECQUA
Maximum Operating Temperature	110°C
Tolerance	±10 %
Capacitance	470nF
Minimum Operating Temperature	-40°C
Terminal type	Through Hole
Dissipation Factor	0.2%
Rated AC Voltage	275V ac
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200
Suppression Class	X2

Key Features

Constructed from metallised polypropylene film for high reliability and safety.
Rated for operating temperatures from -40°C to 110°C.
Complies with UL, CSA, and EN safety standards for interference suppression applications.
Features flame retardant plastic housing and non-combustible resin for enhanced safety.
Lead pitch is 22.5 mm with 20 mm minimum full-length leads for secure mounting.
Designed specifically for class X2 suppression duties in AC mains applications.
Compact dimensions with 15 mm height, 26 mm length, and 8.5 mm width.
Low dissipation factor of 0.2 % ensuring efficient performance.

Product Description

Panasonic ECQUAAF474K is a high-safety ECQUA series film capacitor designed for AC mains interference suppression. This through-hole mounted capacitor has a capacitance of 470 nF, rated for 275V AC voltage, and a ±10 % tolerance, ensuring reliable performance under varying conditions.

The capacitor features a metallised polypropylene film dielectric housed in a flame retardant plastic casing combined with non-combustible resin. This construction meets stringent UL 60384-14, CSA E60384-14, and EN 60384-14 standards, making it compliant with class X2 safety requirements.

Operating temperature ranges from -40°C to 110°C, suitable for demanding industrial and electronic applications such as interference suppression coils, noise filtering, and power conditioning in electronic components, power connectors, and other electrical equipment.

The lead pitch of 22.5 mm and minimum 20 mm lead length facilitate secure through-hole mounting on PCBs. Its compact size with dimensions 15 mm (height) × 26 mm (length) × 8.5 mm (width) makes it ideal for space-constrained designs.

High safety film capacitor for interference suppression in AC mains circuits. Meets automotive standard AEC-Q200 specifications. Low dissipation factor reduces energy losses and heating. Flame retardant housing enhances operational safety in industrial environments.

Compliant with IEC, UL, CSA, and European safety regulations. Designed for long-term reliability with robust construction. Ideal for use in electronic components, power connectors, and industrial electrical applications.

These Panasonic Film Capacitors provide engineers and manufacturers with a trusted solution for interference suppression needs in industrial, commercial, and laboratory environments. Browse EnvMart's Electronics Components category for more Panasonic capacitors and related accessories.
