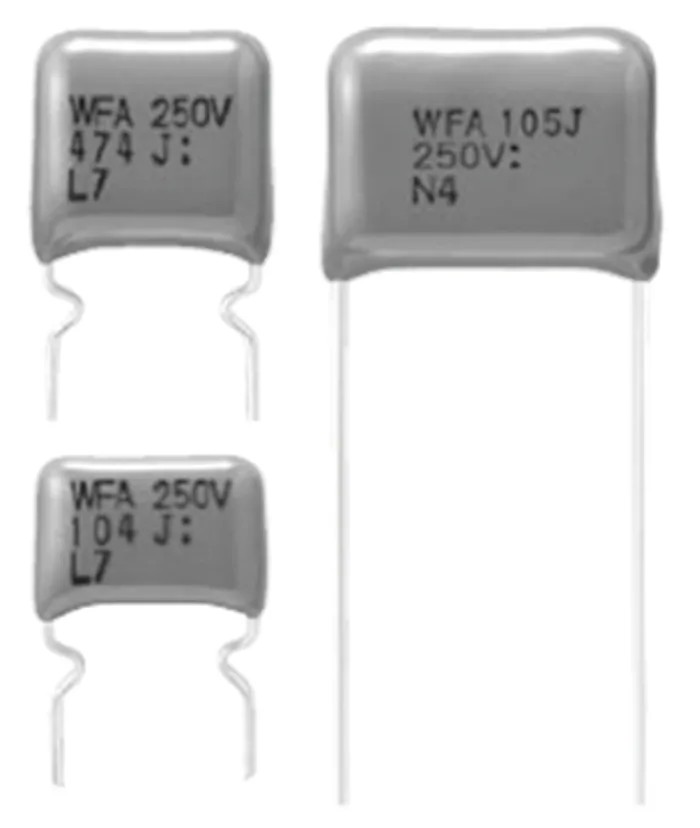

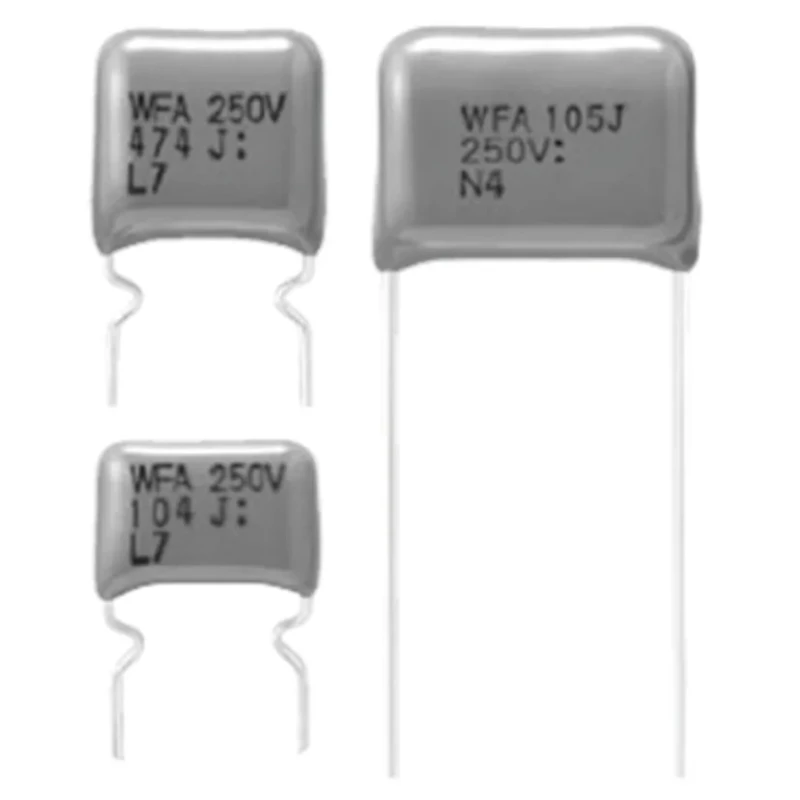

Panasonic ECWF(A) Film Capacitor, 820 nF, ±10% Tolerance, 450 V DC Rated Voltage, Through Hole Mount ECWF2W824KA

Panasonic ECWF2W824KA metallised polypropylene film capacitor is a precision passive component engineered for high frequency and high current electronic circuits. It provides a capacitance value of 820 nF with a tolerance of ±10%, ensuring stable performance under demanding electrical conditions. Rated for a DC voltage of 450 V, this through hole mounted capacitor suits a variety of power electronics and filter applications.

The capacitor features a compact design with dimensions of 18.1 mm in length, 8.2 mm in width, and 12.7 mm in height, enabling efficient space utilization on printed circuit boards. Its lead pitch is 15 mm, and the terminal diameter is 0.8 mm, compatible with standard through hole PCB layouts. The device operates reliably in temperatures ranging from -40°C to 105°C, suitable for automotive and industrial environment standards, including AEC-Q200 compliance.

This capacitor offers superior electrical characteristics including low dissipation factor of 0.1% and low noise, making it ideal for high precision filtering and active filter circuits. It is encapsulated in a self-extinguishing powder resin coating that meets UL94V-0 standards for enhanced safety and durability.

Meeting UL 60384-14, CSA E60384-14, and EN 60384-14 safety and quality standards, the ECWF2W824KA series ensures reliability and long operation life. Applications primarily include high frequency and high current circuits operating at voltages up to 450 V DC, such as power supplies, motor drives, and automotive electronic modules.

Compact metallised polypropylene film capacitor for reliable performance. Rated for continuous operation between -40°C and 105°C temperatures. Features low hum noise and excellent frequency characteristics. Meets automotive standard AEC-Q200 and UL94V-0 self-extinguishing material.

Terminals use 0.8 mm lead diameter with 15 mm lead pitch for easy PCB mounting. Complies with UL 60384-14, CSA E60384-14, and EN 60384-14 standards and approvals. Suitable for active filter circuits and circuits requiring low loss and high reliability.

Encapsulated in safety construction powder resin coating ensuring durability.

This Panasonic Film Capacitor is a key component for industrial electronics, automotive systems, power supplies, and other high reliability applications requiring stable capacitance and robust operating conditions. EnvMart offers this component as part of its Electronics Components category, providing quality and trusted parts for your projects.
