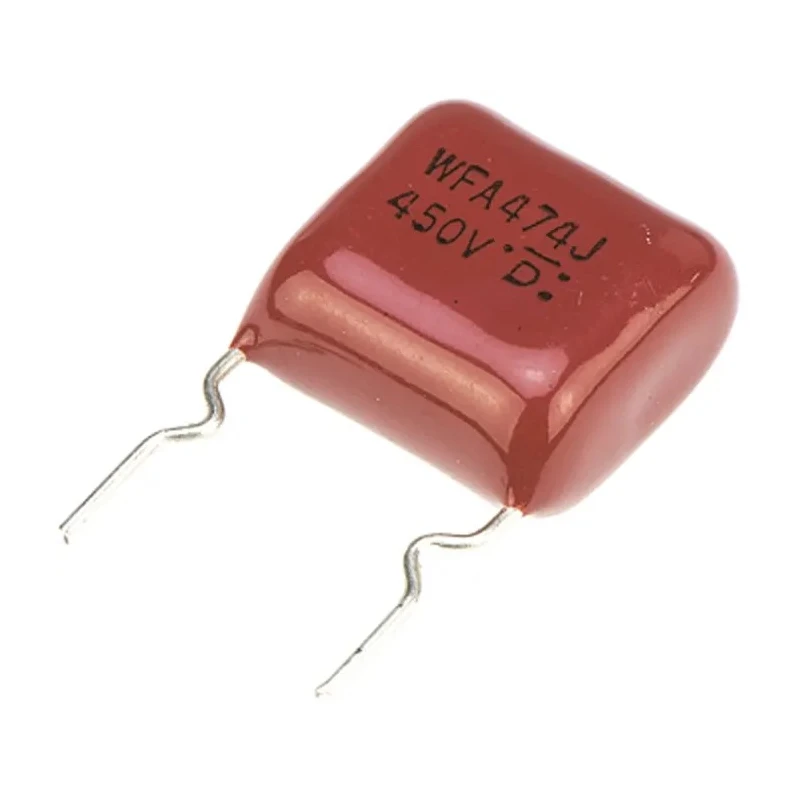

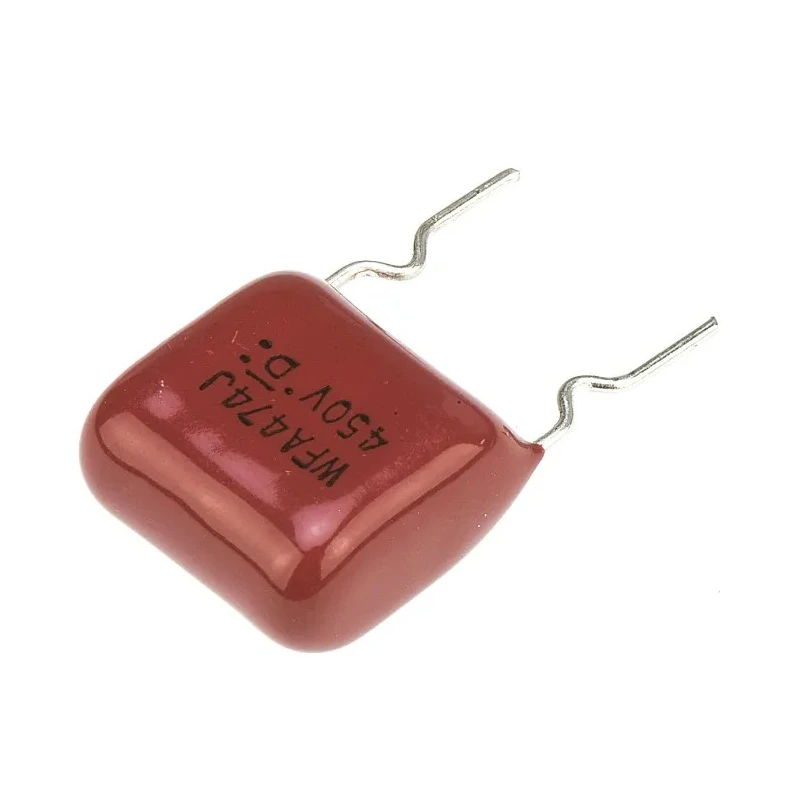

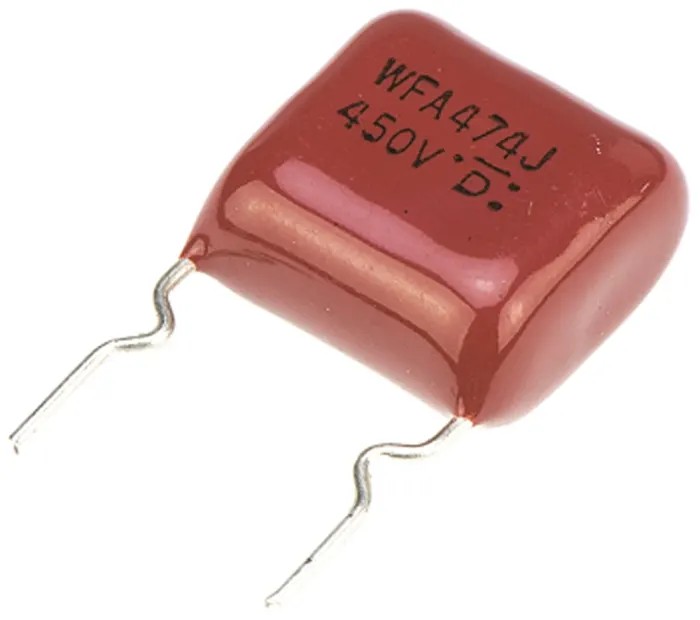

Panasonic ECWF(A) Film Capacitor 470 nF ±5% 450 V DC Through Hole ECWF2W474JAQ

Panasonic ECWF2W474JAQ Film Capacitor is a high-quality electronic component featuring a capacitance of 470 nF with a tolerance of ±5%, suitable for a wide range of industrial and electronic applications. It has a rated DC voltage of 450 V making it ideal for circuits requiring stable performance under high voltage conditions.

The capacitor uses a polypropylene dielectric, known for its excellent thermal stability and low dielectric losses, ensuring reliable operation across various environments. Its through-hole mounting type with a 10 mm lead pitch allows easy integration into printed circuit boards, meeting standard industrial design requirements.

Operating temperature ranges from -40°C to 105°C, enabling use in both low and high-temperature conditions typical in automotive, industrial automation, and high-frequency filter circuits. Low dissipation factor of 0.1% reduces energy loss improving circuit efficiency and reliability.

This film capacitor complies with the automotive standard AEC-Q200 and meets certification requirements including CSA E60384-14, EN 60384-14, and UL 60384-14, assuring performance and safety in critical applications.

Physical dimensions of 13 mm length, 8.7 mm width, and 22.4 mm height, with a lead diameter of 0.6 mm, provide a compact design suited for space-constrained equipment. The capacitor is commonly utilized in audio equipment for signal smoothing, power supply filtering, and communication devices requiring precise frequency filtering.

Constructed with polypropylene dielectric for exceptional thermal stability. ±5% capacitance tolerance ensures precise performance. 450 V DC rated voltage suitable for heavy-duty applications. Low dissipation factor reduces energy loss.

Operating temperature range from -40°C to 105°C. Through-hole lead type with 10 mm pitch for PCB compatibility. Certified by CSA, EN, and UL standards. Compact dimensions suit diverse industrial usage.

This Panasonic Film Capacitor is an excellent choice for engineers and manufacturers seeking durable, efficient passive components for industrial electronics, automotive systems, communications, and audio applications. Explore more industrial electronics and components on EnvMart for your project requirements.
