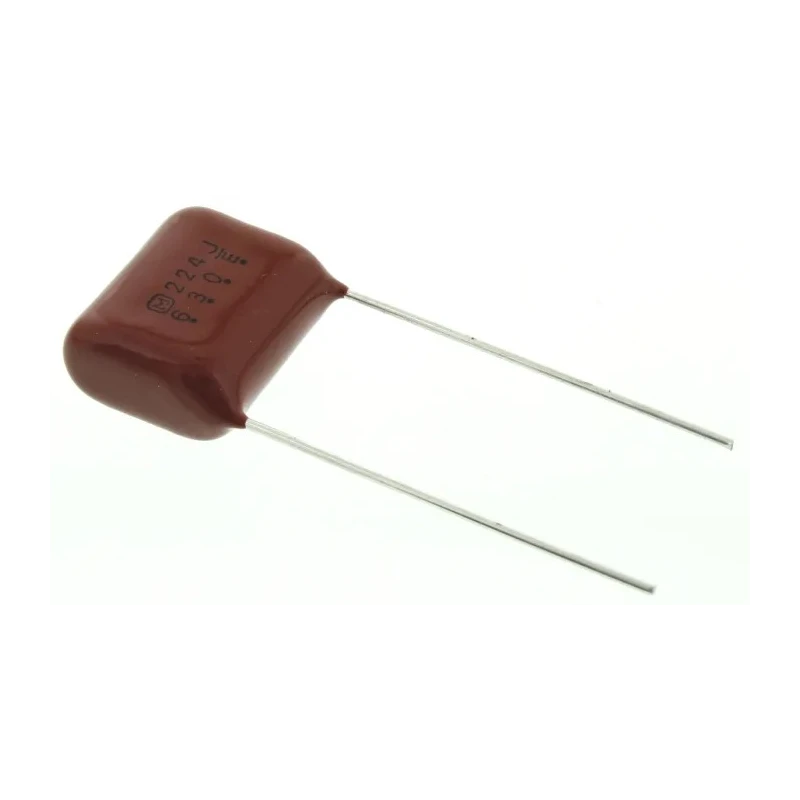

Panasonic Polyester Film Capacitor Through Hole 220nF 630V AC 630V DC ECQE6224JF

Panasonic ECQE6224JF polyester film capacitor is a high-quality passive electronic component designed for reliable general-purpose usage in electronic circuits. Featuring a metallised polyester film construction, it offers non-inductive, self-healing electrical characteristics and excellent performance under rated voltages.

This capacitor is equipped with a flame retardant epoxy resin coating that enhances safety and durability in industrial, commercial, and automotive electronics applications. The through-hole mount design utilizes leads with a 15mm pitch and 0.8mm diameter, facilitating secure PCB mounting.

The capacitor is rated for an AC voltage of 630V and DC voltage of 630V, suitable for use in a wide range of electronic devices and circuits requiring robust voltage handling. Compliance with the automotive standard AEC-Q200 ensures suitability for automotive-grade electronic systems, while the maximum operating temperature of 105°C supports performance in demanding thermal conditions.

With compact dimensions of 18.5mm in length, 16.5mm in height, and 9mm in width, this capacitor fits easily into space-constrained PCB layouts. The product meets rigorous safety and performance standards including EN 60384-14, CSA E60384-14, and UL 60384-14, certifying its reliability and quality for industrial use.

Metallised polyester film construction provides self-healing and non-inductive properties. Flame retardant epoxy coating enhances durability and safety. Through-hole mount with 15mm lead pitch and 0.8mm lead diameter for PCB installation.

Rated for 630V AC and 630V DC operation, suitable for diverse electronic circuits. Automotive grade compliant with AEC-Q200 for reliability in automotive electronics. Maximum operating temperature of 105°C offers performance in harsh environments.

Compact form factor of 18.5mm x 16.5mm x 9mm for efficient PCB design. Certified to EN, CSA, and UL standards for quality assurance.

This Panasonic ECQE6224JF film capacitor is ideal for use in industrial, automotive, electronics manufacturing, and laboratory environments requiring reliable passive components. Their non-inductive and self-healing nature makes them suitable for power supplies, signal processing, and filtering applications. Explore the Electronics Components Film Capacitor category at EnvMart for advanced industrial-grade capacitors.
