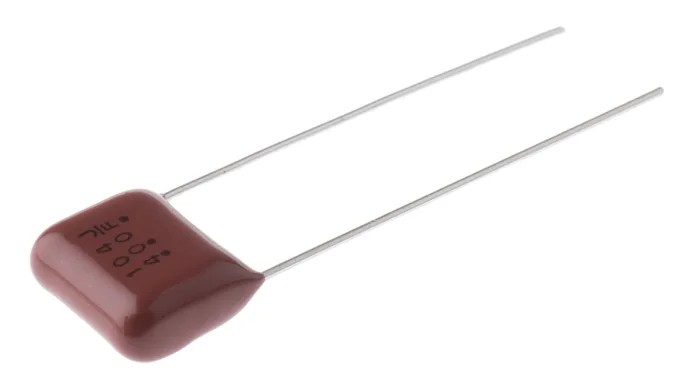

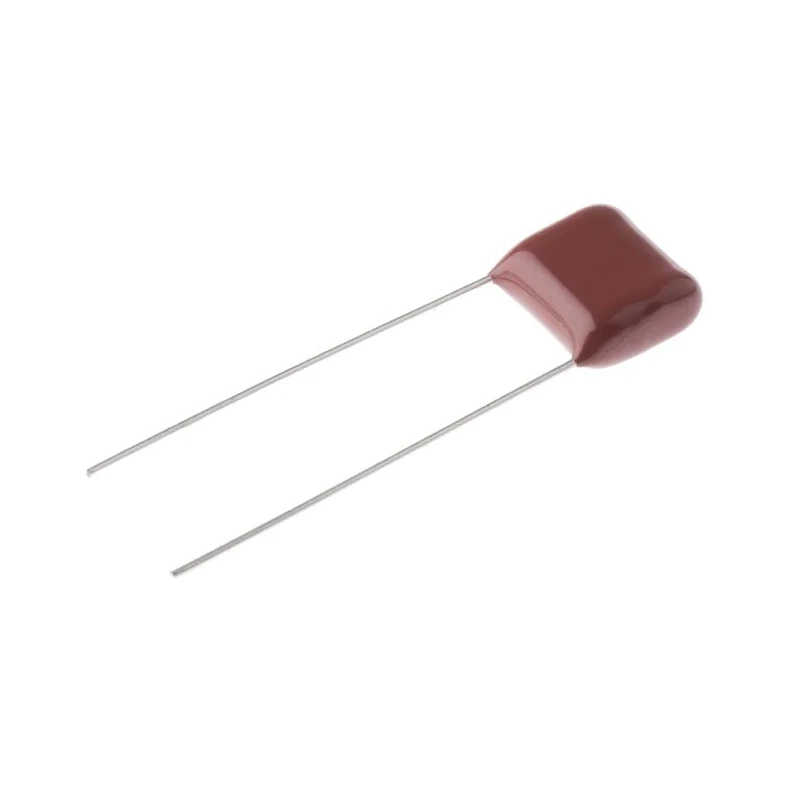

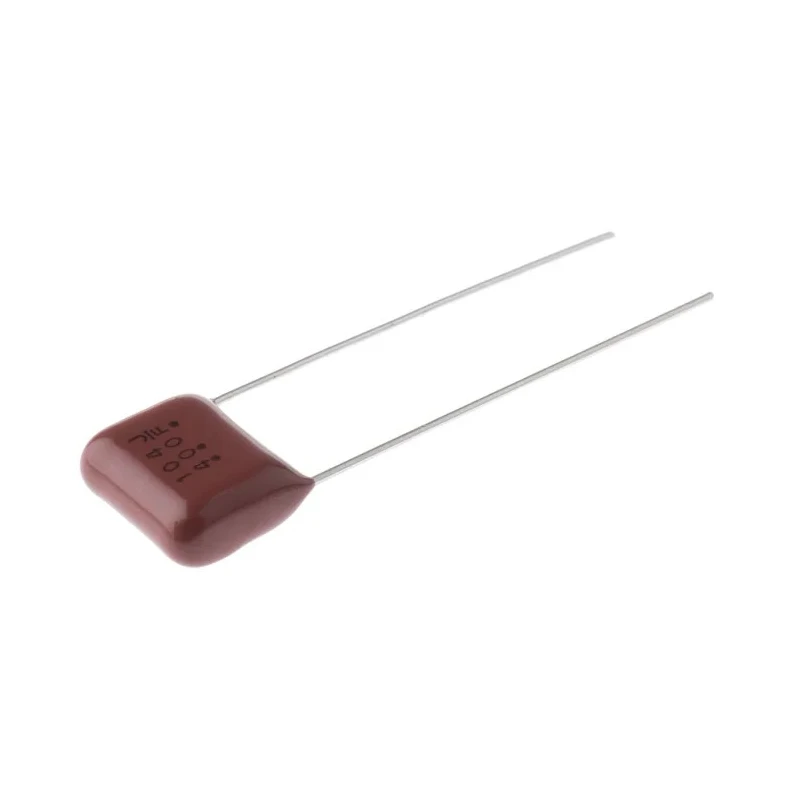

Panasonic Film Capacitor 100 nF 400V AC 400V DC Through Hole 2-Pin Metallised Polyester ECQE4104JF

Panasonic ECQE4104JF film capacitor is a high-quality, metallised polyester film component designed for versatile electronic applications requiring stable capacitance and high voltage handling. This film capacitor provides a 100 nF capacitance with a rated AC and DC voltage of 400 volts, suitable for demanding power and signal circuits. It features a through-hole mount design with a 2-pin configuration and 10mm lead pitch, facilitating straightforward PCB installation.

Constructed to operate reliably at temperatures up to 105°C, this capacitor incorporates flame-retardant epoxy resin coating to enhance safety and prevent damage under thermal stress or fire hazards. Its self-healing property allows recovery from electrical stress, extending operational life and maintaining function in critical applications.

The component meets automotive standards (AEC-Q200), ensuring durability and consistent functionality in automotive and industrial environments. Its low dissipation factor optimizes energy efficiency, making it ideal for power supply circuits, timing and filtering systems, ignition circuits, and automation machinery control.

Compact size with dimensions of 12mm length, 12mm height, and 6.3mm width minimizes space requirements on densely packed boards. The pin diameter of 0.6mm and through-hole mounting ensures secure, reliable solder joints.

Metallised polyester film construction delivers reliable electrical performance. Capacitance of 100 nF rated for 400V AC and DC applications. Flame-retardant epoxy coating enhances safety and durability. Through-hole mount with 2 pins and 10mm lead pitch for PCB mounting ease.

Operating temperature range up to 105°C for wide environmental suitability. Self-healing features ensure longevity and performance stability. Compliant with AEC-Q200 automotive standard for quality assurance. Low dissipation factor reduces power loss in circuits.

Applications include electronic circuits, ignition systems, timing and filtering, automation, and machinery control. Compact physical size fits well in space-constrained designs.

This Panasonic Film Capacitor is an ideal choice for engineers and manufacturers seeking a robust, compact, and high-performance capacitor for industrial, automotive, and consumer electronic circuit designs. EnvMart provides this component for professional electronic component sourcing and design integration.
