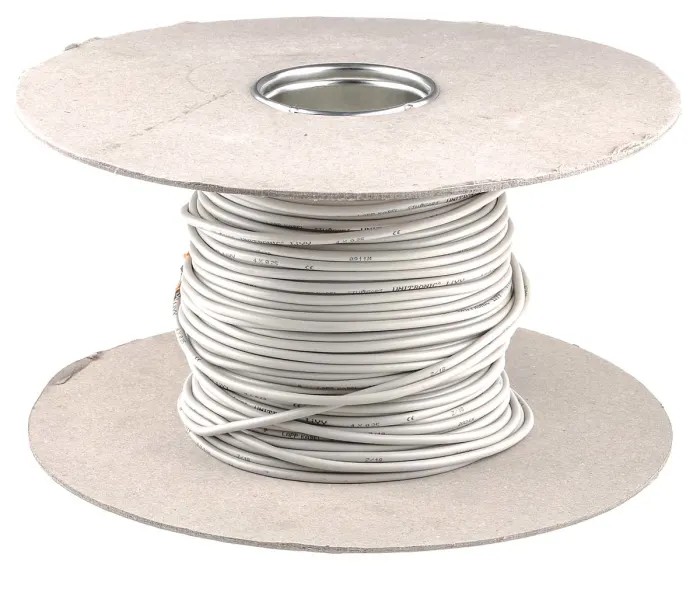

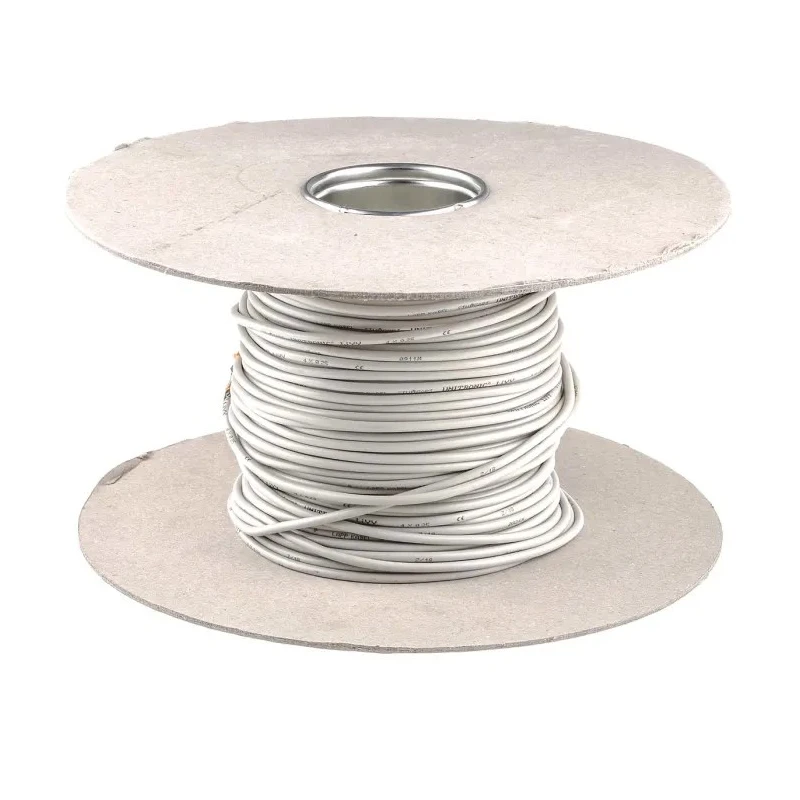

Lapp UNITRONIC LiYY Series Data Cable 4 Pairs 4 Cores 0.25 mm² 100 m Grey Sheath Polyvinyl Chloride 0028304
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 0.25mm² |
| Model | 0028304 |
| Cable Length | 100m |
| Series | UNITRONIC LiYY |
| Outside diameter | 4.3mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 4 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Extra Fine |
| Number of Strands | 14 |
| Core Strands | 14 x 0.14mm |
| Size of Strands | 0.14mm |
| Number of Pairs | 4 |
Key Features
- The cable contains 4 pairs and 4 cores with a conductor cross-sectional area of 0.25 mm².
- Its grey polyvinyl chloride (PVC) sheath provides flame retardance and mechanical protection.
- The cable length is 100 meters with an outside diameter of 4.3 mm for compact installations.
- Designed to operate reliably in temperatures ranging from -40°C to +80°C.
- Constructed using bare copper conductors with 14 strands of 0.14 mm each for optimal flexibility.
- Rated for 500V voltage capacity suitable for many industrial applications.
- Meets CE standards ensuring quality and compliance for safety.
- Non-wicking filler material enhances corrosion resistance in moist environments.
Product Description
Lapp 0028304 UNITRONIC LiYY Series Data Cable is a flexible control cable designed for reliable data transmission with 4 pairs and 4 cores. It features a 0.25 mm² bare copper conductor cross-section ensuring efficient conductivity and flexibility due to its stranded construction.
The grey sheath is made from flame-retardant polyvinyl chloride (PVC), providing mechanical and fire protection. With an outside diameter of 4.3 mm, the cable is compact, allowing optimized wiring density in complex industrial setups.
It operates within a wide temperature range from -40°C to +80°C, making it suitable for demanding environments. Rated at 500V, this data cable meets CE standards, ensuring compliance for safety and performance.
The 14 strands of 0.14 mm conductor strands contribute to the cable’s flexibility, and a non-wicking filler resists moisture-related corrosion. This unscreened cable is ideal where electromagnetic interference is not problematic, thus providing a cost-effective and flexible solution.
Applications include bottling plants, automated assembly lines, manufacturing industries, and outdoor electrical installations. This cable supports industrial, commercial, and automation uses where robust and flexible control cables are required.
4 pairs and 4 cores with 0.25 mm² conductor cross-section. Flame-retardant PVC grey sheath provides protection and durability. 100 meters cable length with 4.3 mm outside diameter. Wide operating temperature range from -40°C to 80°C for versatile uses.
Bare copper conductor with 14 strands of 0.14 mm diameter for flexibility. Rated for 500 V voltage and complies with CE standards. Non-wicking filler offers corrosion resistance in damp conditions. Unscreened design for flexible installation in low EMI environments.
Suitable for industrial wiring in bottling plants and manufacturing lines.
Explore more quality Data Cables and industrial wiring solutions within the Electronics & Electricals category at EnvMart to find the ideal cable for your application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The conductor cross-sectional area of this data cable is 0.25 mm².
This model can operate at a maximum temperature of 80°C.
It is rated for a voltage of 500V.
The cable contains 4 pairs and 4 cores.
The outside diameter of this cable is 4.3 mm.
The sheath is made from flame-retardant polyvinyl chloride (PVC).
The minimum operating temperature is -40°C.
It uses bare copper conductors with 14 strands of 0.14 mm each.
This cable complies with CE standards.
It is suitable for applications in bottling plants, automated assembly lines, and manufacturing industries.
The cable features a non-wicking filler material that enhances corrosion resistance in moist environments.
The country of origin for this cable is Germany.
