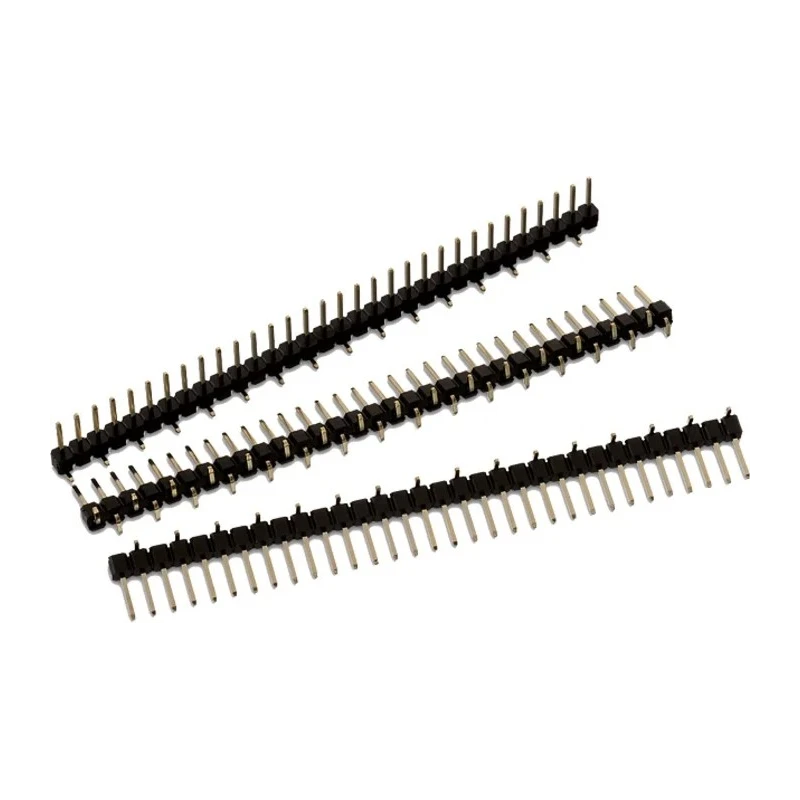

Wurth Elektronik WR-PHD Series Straight Surface PCB Header, 32 Contacts, 2.54 mm Pitch, 1 Row 61003218321

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WR-PHD Series Straight Surface PCB Header, 32 Contacts, 2.54 mm Pitch, 1 Row 61003218321

Name: Wurth Elektronik WR-PHD Series Straight Surface PCB Header, 32 Contacts, 2.54 mm Pitch, 1 Row 61003218321
Brand: Wurth Elektronik
SKU: 404150
Price: 4.09 USD
Availability: InStock



Category PCB Headers Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Voltage	250V
Brand	Wurth Elektronik
Orientation	Straight
Current	3A
Mount Type	Surface
Housing Material	Polyamide 6T
Contact Material	Copper Alloy
Series	WR-PHD
Durability	25mating cycles
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	32
Contact Gender	Female

Key Features

Constructed with polyamide 6T housing material ensuring robust insulation.
Contact material is high-quality copper alloy plated with gold for optimal conductivity and corrosion resistance.
Rated for a current of 3A and voltage up to 250V for reliable electrical performance.
Designed for straight orientation and surface mount type for easy PCB integration.
Durability rated for 25 mating cycles suitable for multiple connection operations.
Operating temperature ranges from -40°C minimum to 105°C maximum for versatile environments.
Complies with RoHS standards ensuring environmental and health safety.

Product Description

Wurth Elektronik 61003218321 is a highly reliable PCB header from the WR-PHD Series with a straight surface mount design featuring 32 female contacts in one row with a 2.54 mm pitch. This component uses polyamide 6T for the housing, providing excellent electrical insulation and durability suitable for industrial and electronic applications.

The header is constructed with copper alloy contacts plated in gold to provide enhanced conductivity and resistance against corrosion. It supports a maximum current rating of 3A and a voltage rating of 250V, making it ideal for various power and signal connector needs in electronic circuits.

Designed for easy surface mounting on PCBs, the straight orientation layout facilitates straightforward integration into electronics assemblies. The product maintains performance durability for up to 25 mating cycles, suitable for maintenance and replacement operations.

The operating temperature range of -40°C to 105°C supports usage in diverse environments including industrial, laboratory, and manufacturing settings. It fully complies with RoHS environmental standards, ensuring eco-friendly and safe use.

Robust polyamide housing ensures electrical safety and mechanical strength. Gold-plated copper contacts optimize signal integrity and durability. Supports standard 2.54 mm pitch for compatibility with common PCB designs.

Rated for 3A current and 250V voltage for diverse electronic applications. Single row with 32 contacts provides ample connection points for complex circuits. RoHS compliance guarantees adherence to environmental regulations.

Durability of 25 mating cycles ensures reliability over repeated uses.

This Wurth Elektronik PCB header is manufactured in Taiwan, Province Of China and is suitable for use in electronics design, automation, industrial control, telecommunications, and other specialized fields requiring quality PCB connectors.
