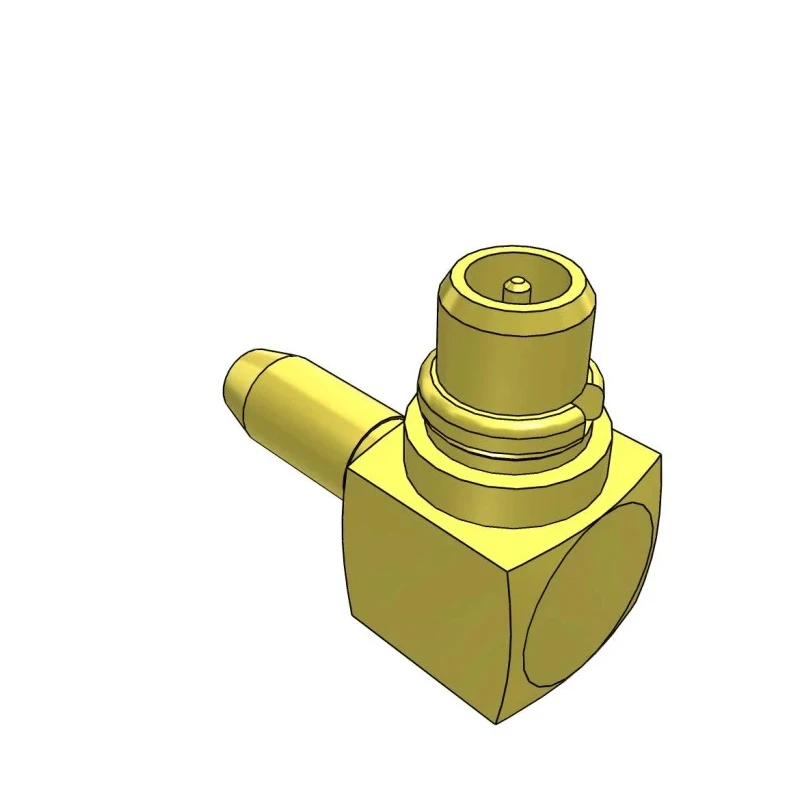

Samtec MCX Coaxial Connector PCB Female, 50 Ω, Right Angle Body Edge Mount MMCX-P-C-H-RA-CA2
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Samtec |
| Orientation | Right Angle |
| Model | MMCX-P-C-H-RA-CA2 |
| Mount Type | PCB |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | MMCX |
| Termination Type | Edge Mount |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
Key Features
- Features gold plating on both body and contacts for excellent conductivity and corrosion resistance.
- Constructed with beryllium copper alloy contacts ensuring durability and reliable performance.
- Operates effectively at frequencies up to 6 GHz for high-speed signal transmission.
- Designed for use at temperatures ranging from -65°C to 125°C for a wide operating environment.
- Edge mount termination type facilitates robust PCB integration and mechanical stability.
- Female connector gender with normal polarity matching standard MCX connection requirements.
- Compact right angle orientation optimizes PCB space and routing flexibility.
Product Description
Samtec MMCX-P-C-H-RA-CA2 is a precision MCX series Coaxial Connector designed for PCB mounting applications requiring a female interface with right angle body edge mount.
This 50 Ω connector features a gold plated body and contacts, employing 30 micro inch (0.76 μm) gold center contact plating and 3 micro inch (0.08 μm) gold outer contact plating to ensure excellent electrical conductivity and corrosion resistance ideal for demanding environments.
Constructed from beryllium copper alloy, the contacts provide high durability and stable signal performance. The connector supports operating frequencies up to 6 GHz, suitable for high-speed RF and microwave signal transmissions in telecommunications, aerospace, and industrial electronics.
Designed for reliability across a broad temperature range from -65°C to 125°C, it meets rigorous environmental and mechanical requirements, including non-magnetic options applicable for medical and aerospace applications.
The right angle, edge mount termination facilitates secure and space-efficient PCB integration, supporting effective signal routing in compact electronic assemblies. Features gold plating on both body and contacts for excellent conductivity and corrosion resistance.
Constructed with beryllium copper alloy contacts ensuring durability and reliable performance. Operates up to 6 GHz frequency for high-speed transmission. Supports operating temperature range from -65°C to 125°C. Edge mount termination type ensures secure PCB fitting.
Female connector gender with normal polarity for standard MCX compatibility. Right angle orientation optimizes PCB layout and mechanical stability. This connector is ideal for industrial, telecommunications, aerospace, and medical electronics applications requiring reliable, high-frequency PCB coaxial connectivity.
