Samtec LTH Series Horizontal Surface PCB Header 20 Contacts 0.5mm Pitch 2 Row Shrouded LTH-010-01-G-D-A-K-TR

Free Delivery in India | Lowest Global Shipping Charges

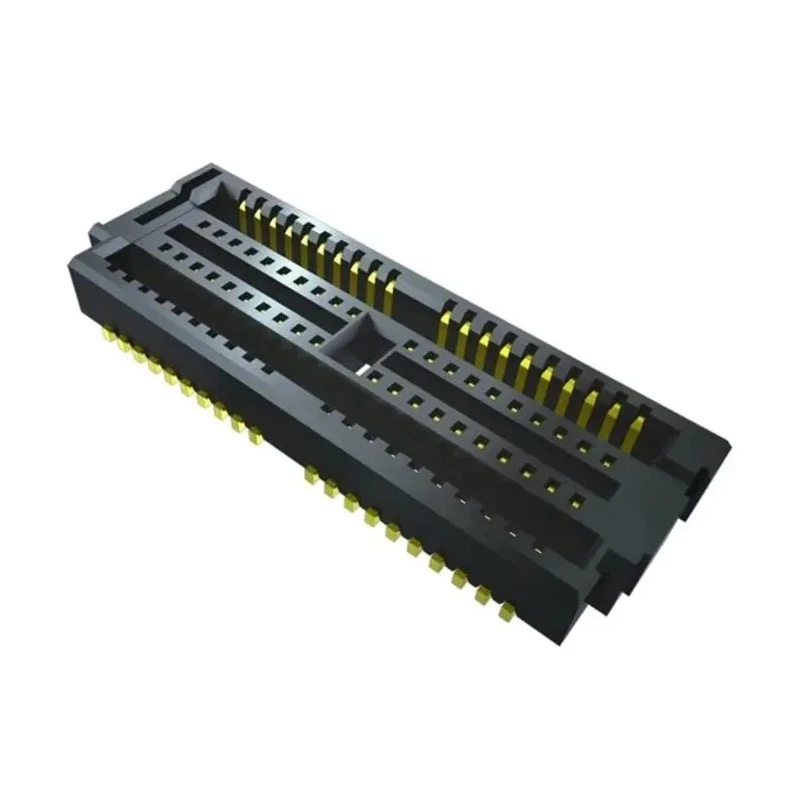

Samtec LTH Series Horizontal Surface PCB Header 20 Contacts 0.5mm Pitch 2 Row Shrouded LTH-010-01-G-D-A-K-TR

Name: Samtec LTH Series Horizontal Surface PCB Header 20 Contacts 0.5mm Pitch 2 Row Shrouded LTH-010-01-G-D-A-K-TR
Brand: Samtec
SKU: 403870
Price: 3.39 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	188V
Brand	Samtec
Orientation	Horizontal
Current	2.6A
Model	LTH-010-01-G-D-A-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	LTH
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.5mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board
Tail Pin Length	1.27mm
Mating Pin Length	1.68mm

Key Features

This PCB header is designed with 20 male contacts arranged in two rows.
Utilizes phosphor bronze contacts plated with gold for enhanced conductivity and corrosion resistance.
Housing is made of liquid crystal polymer ensuring durability and thermal stability.
Operates efficiently within a temperature range of -55°C to 125°C.
Rated for a current of 2.6A and voltage up to 188V, suitable for various electronic applications.
Features horizontal orientation and surface mount type.
Includes tape and reel packaging for automated assembly processes.
Complies with RoHS standards for hazardous substance restrictions.

Product Description

Samtec LTH-010-01-G-D-A-K-TR is a high-quality horizontal surface mount PCB header featuring 20 male contacts arranged in two rows with a 0.5mm pitch.

The housing material is liquid crystal polymer, which offers excellent mechanical strength and thermal stability between -55°C to 125°C, making it suitable for demanding industrial and electronic environments.

This component supports a current rating of 2.6A and voltage up to 188V, making it versatile for power and signal transmission. Its horizontal orientation with a surface mount type and shrouded design ensures secure mating and protection from contamination. The tail pin length of 1.27mm and mating pin length of 1.68mm provide reliable solder connections.

Packaged in tape and reel format, the LTH series header supports automated pick-and-place assembly processes, enhancing manufacturing efficiency. Compliance with RoHS standards ensures environmentally responsible use of materials.

20 male contacts in dual rows with 0.5mm pitch. Gold-plated phosphor bronze contacts for durability and conductivity. Liquid crystal polymer housing for high thermal and mechanical strength. Operating temperature range from -55°C to 125°C.

Tape and reel packaging for automated manufacturing. Horizontal surface mount configuration. Rated for 2.6A current and 188V voltage. RoHS compliant for hazardous substance restrictions. Tail pin length: 1.27mm; mating pin length: 1.68mm.

This product is ideal for use in electronics manufacturing, industrial equipment, automation controls, and other commercial applications requiring compact, reliable PCB connectors. Explore more Samtec PCB Headers and connectors at EnvMart for your precise electronic connectivity needs.
