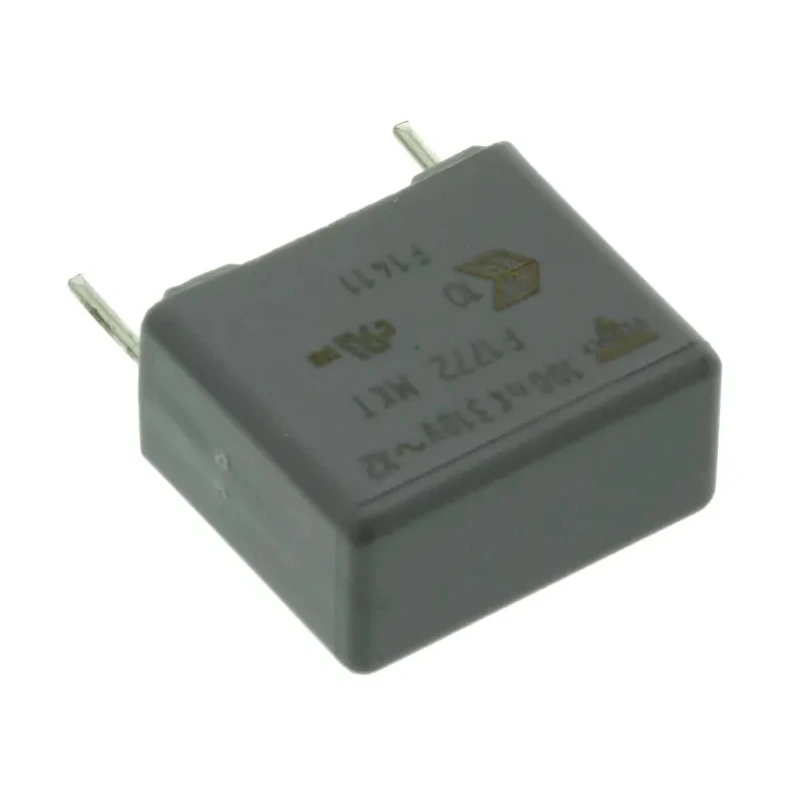

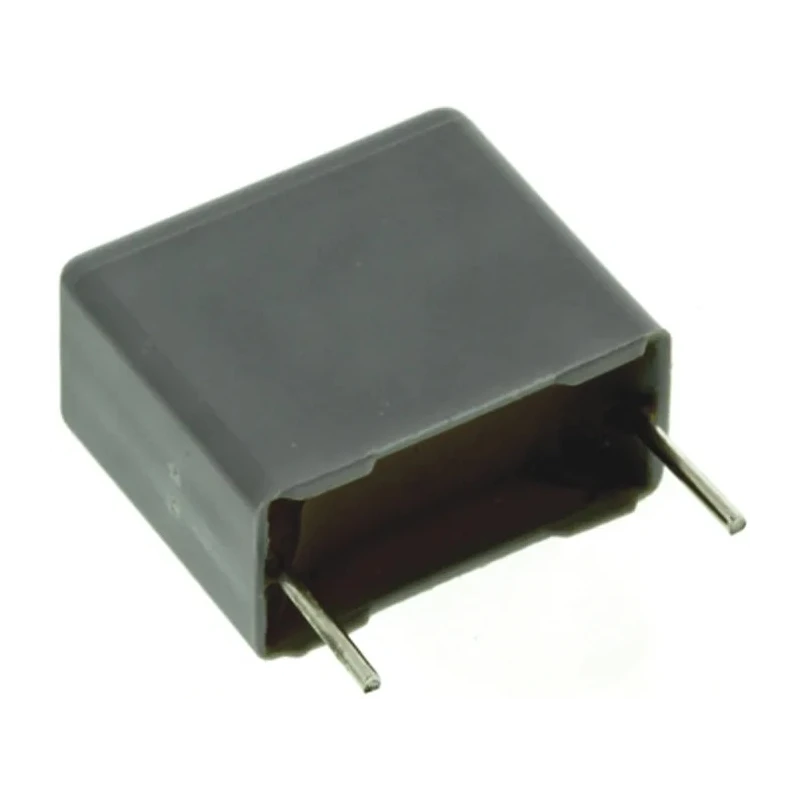

Vishay F1772 Film Capacitor 100 nF 310V AC 310V DC Through Hole Mount F17724102000

Vishay F17724102000 is a high-quality film capacitor with 100 nF capacitance designed for use in electronic circuits requiring interference suppression at rated voltages of 310V AC and 310V DC. This through hole mount capacitor features a metallised film construction providing excellent electrical performance and long-term stability.

The robust epoxy resin-sealed and flame-retardant case protects the capacitor against environmental damage and ensures safety during operation. With a lead pitch of 15 mm and lead diameter of 0.8 mm, it is compatible with standard printed circuit boards enabling straightforward assembly.

This capacitor complies with the automotive standard AEC-Q200, making it suitable for automotive electronics applications. It also meets X2 suppression class requirements and various international safety standards such as UL 60384-14, IEC 60384-14 ed-4, EN 60384-14, IEC 60065, and CSA E384-14, ensuring reliability and certification compliance.

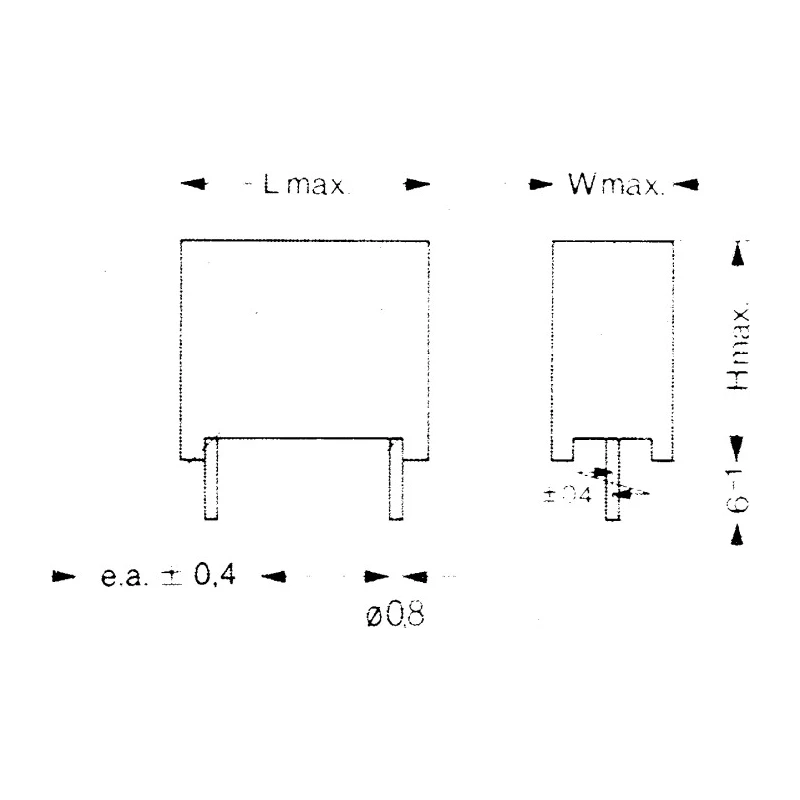

Measuring 17.5 mm in length, 15 mm in height, and 8.5 mm in width, it fits well in compact layouts and industrial designs. The maximum operating temperature of 110°C provides operational endurance under challenging conditions common in industrial, automotive, and commercial electronics applications.

This film capacitor is ideally used for interference suppression installed between phases or phase and neutral lines, offering effective noise reduction and compliance with electromagnetic compatibility requirements.

Epoxy resin sealed with a flame-retardant case for durability. Lead pitch of 15 mm and lead diameter of 0.8 mm for easy PCB mounting. Maximum operating temperature is 110°C ensuring reliable performance. Complies with automotive standard AEC-Q200 and X2 suppression class.

Dimensions: length 17.5 mm, height 15 mm, width 8.5 mm. Approved under standards UL 60384-14, IEC 60384-14 ed-4, EN 60384-14, IEC 60065, CSA E384-14. Designed for use between phases or between phase and neutral for interference suppression.

Metallised film construction enhances reliability and performance.

Suitable for industrial, automotive, commercial, and electronic manufacturing applications requiring stable and certified film capacitors for noise suppression and signal conditioning. Explore more electronic components and Film Capacitors at EnvMart for your application needs.
