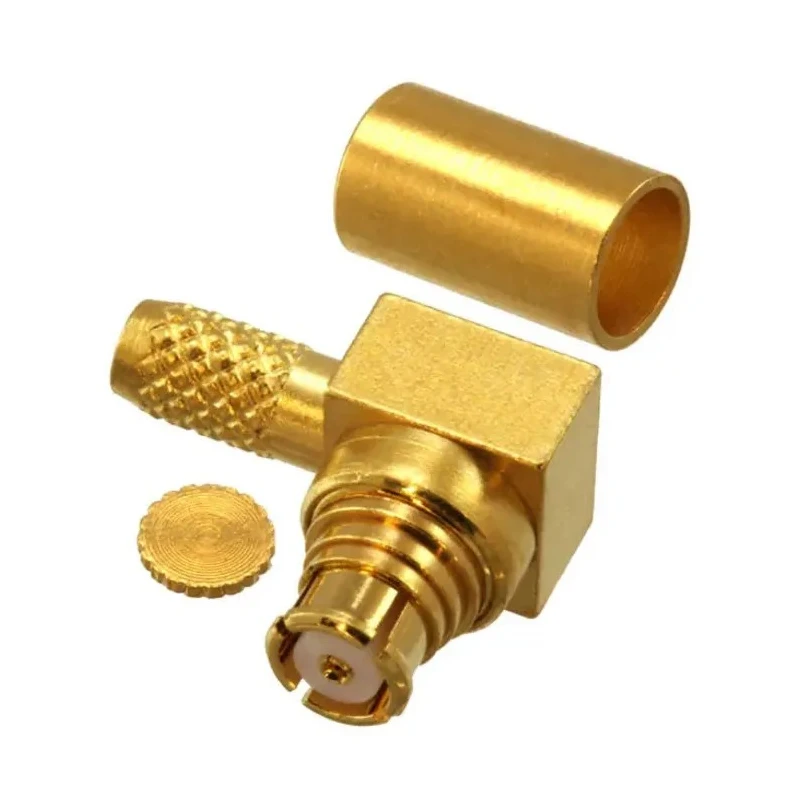

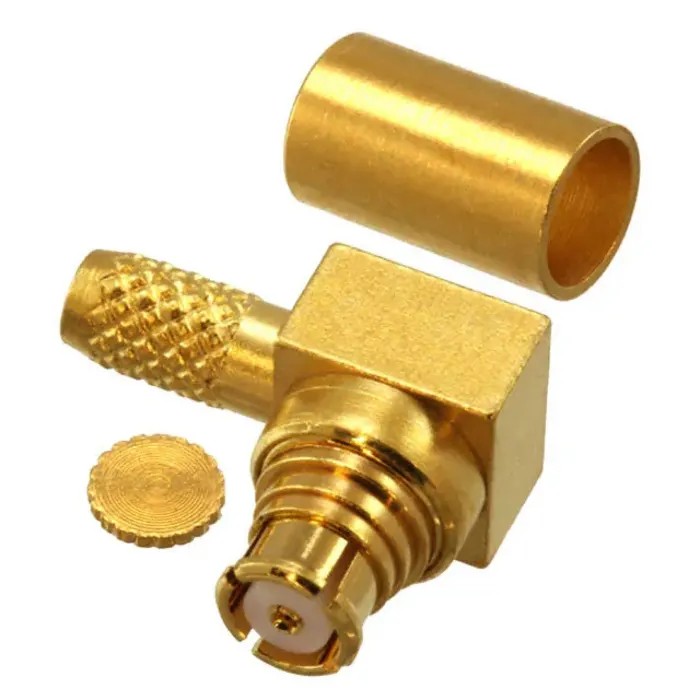

Molex 73300 Series Coaxial Connector PCB Female SMP, 50 Ω, Right Angle Body Cable 734155032
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | Molex |
| Orientation | Right Angle |
| Mount Type | PCB |
| Operating Frequency | 40GHz |
| Series | 73300 |
| Termination Type | Cable |
| Cable Type | RG174, RG188, RG-316 |
| Polarity | Normal |
| Impedance | 50Ω |
| Standards/Approvals | EU RoHS China RoHS Compliant with Exemption 6(c) |
| Contact Plating | Gold Plated |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMP |
| Body Plating | Gold |
Key Features
- This SMP connector is designed for PCB mounting and supports RG174, RG188, and RG-316 cables.
- It features a gold plated body and gold plated contact for enhanced conductivity and corrosion resistance.
- The connector operates at frequencies up to 40 GHz, suitable for high-frequency applications.
- It has a right angle body ideal for space-saving cable layouts.
- The product complies with EU RoHS and China RoHS with exemption 6(c).
- Normal polarity and female connector and contact gender ensure compatibility with standard mating parts.
- Manufactured in Taiwan, Province Of China, ensuring high-quality standards.
Product Description
Molex 734155032 is a high-performance SMP female coaxial connector designed for PCB mounting in electronic components assemblies. It offers a characteristic impedance of 50 Ω and a right angle body for efficient cable routing and space optimization in complex circuits.
The connector is compatible with RG174, RG188, and RG-316 cable types commonly used in RF and microwave communications, testing equipment, and telecommunications. This product features a gold plated outer body and gold plated contact termination, ensuring low signal loss and superior durability under demanding environmental conditions.
Its operating frequency reaches up to 40 GHz, making it suitable for advanced high-frequency applications in industrial, laboratory, and communication systems. Compliant with EU RoHS and China RoHS standards (with exemption 6(c)), this connector supports environmentally responsible manufacturing.
This SMP coaxial connector is designed for right angle orientation, providing space-saving connection solutions. Female gender for both connector and contact ensures use with corresponding male SMP plugs. The termination type is cable, specifically tailored for RG174, RG188, and RG-316 cables.
Standard size and no bulkhead design facilitate integration into various PCB assemblies. Manufactured in Taiwan, Province Of China guaranteeing quality control and precision engineering.
Common applications include RF communications, industrial test equipment, signal transmission and measurement, aerospace, and defense systems requiring reliable and consistent coaxial connections.
Explore more high-quality Coaxial Connectors and related electronic components at EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This SMP connector operates at frequencies up to 40 GHz, making it suitable for high-frequency applications.
It is compatible with RG174, RG188, and RG-316 cable types, commonly used in RF and microwave communications.
The connector has a characteristic impedance of 50 Ω, which is standard for many RF applications.
This model features a right angle orientation, which is ideal for space-saving cable layouts in PCB assemblies.
It is designed for PCB mounting, facilitating integration into electronic component assemblies.
Both the connector and contact gender are female, ensuring compatibility with standard male SMP plugs.
The connector features gold plating on both the body and contact, enhancing conductivity and corrosion resistance.
It complies with EU RoHS and China RoHS standards, with exemption 6(c), supporting environmentally responsible manufacturing.
It is designed with a standard size, making it suitable for various PCB assemblies without bulkhead design constraints.
Common applications include RF communications, industrial test equipment, signal transmission, and aerospace systems.
This model is manufactured in Taiwan, Province Of China, ensuring adherence to high-quality standards.
The termination type is cable, specifically designed for the compatible RG174, RG188, and RG-316 cables.
