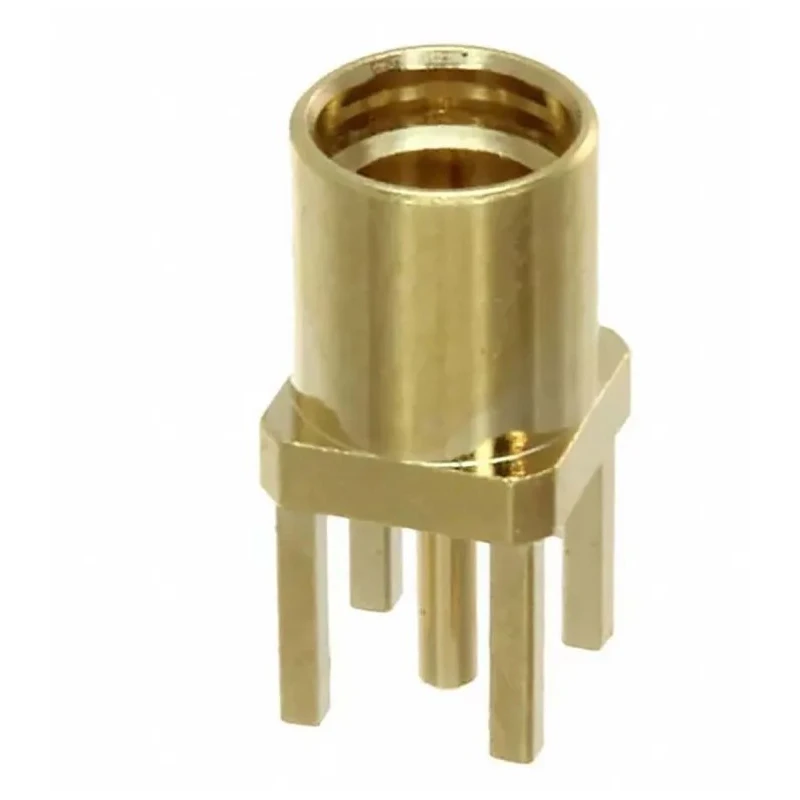

Samtec MIMCXV Series 50 Ω MCX Coaxial Connector Through Hole Female Straight Body MMCXV-J-P-HF-ST-TH1
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Samtec |
| Orientation | Straight |
| Model | MMCXV-J-P-HF-ST-TH1 |
| Mount Type | Through Hole |
| Operating Frequency | 50Hz |
| Contact Material | Beryllium Copper Alloy |
| Series | MIMCXV |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Performance | up to 6 GHz |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
Key Features
- Supports operating frequency up to 6 GHz for high-performance signal transmission.
- Constructed with gold-plated body and contact for superior conductivity and corrosion resistance.
- Uses beryllium copper alloy contact material ensuring durability and electrical reliability.
- Designed for through hole mounting providing secure mechanical fixation.
- Operates reliably between -65°C to 125°C temperature range for rugged environments.
- Polarity is normal with female connector gender for versatile compatibility.
- Supports straight orientation and does not feature bulkhead design.
- Ideal for applications requiring high vibration resistance and non-magnetic options.
Product Description
Samtec MMCXV-J-P-HF-ST-TH1 is a high-quality coaxial connector belonging to the MIMCXV series designed for rugged and high-frequency applications. It provides high-performance signal transmission with impedance of 50 Ω and supports operating frequencies up to 6 GHz.
This female MCX connector type is constructed with a gold-plated body and contact plating which ensures excellent conductivity and resistance to corrosion. The contact is made from a beryllium copper alloy, providing durability and consistent electrical performance over time.
The connector is through hole mounted with a standard size and normal polarity, featuring a straight orientation for ease of integration onto printed circuit boards. Its operating temperature range spans from -65°C to 125°C, making it suitable for demanding industrial and electronic environments.
The MMCXV-J-P-HF-ST-TH1 connector is commonly used in electronic components, power and connectors assemblies, and RF Coaxial Connector systems in applications such as telecommunications, test instrumentation, and other high-frequency signal transmission scenarios requiring reliable mechanical and electrical connection.
Supports operating frequency up to 6 GHz for enhanced signal fidelity. Gold-plated body and contact for optimal electrical performance. Beryllium copper alloy contact material offers long-lasting durability. Through hole termination type offers mechanical stability in PCB mounting.
Wide operating temperature range from -65°C to 125°C enables use in harsh conditions. Female connector gender and straight orientation for compatibility with standard MCX interfaces. No bulkhead design allows straightforward integration in constrained spaces.
MIMCXV series offers options for high vibration and non-magnetic applications. Explore more connectors and coaxial components in our Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a maximum operating frequency of up to 6 GHz, ensuring high-performance signal transmission.
The impedance rating of the MMCXV-J-P-HF-ST-TH1 is 50 Ω, making it suitable for various RF applications.
It operates reliably within a temperature range of -65°C to 125°C, suitable for harsh environments.
The connector features a gold-plated body and contact for superior conductivity, with the contact made from beryllium copper alloy for durability.
This model is designed for through hole mounting, providing secure mechanical fixation on printed circuit boards.
The MMCXV-J-P-HF-ST-TH1 is a female connector, designed for versatile compatibility with standard MCX interfaces.
No, this model does not feature a bulkhead design, allowing for straightforward integration in constrained spaces.
It has a straight orientation, which facilitates ease of integration onto circuit boards.
This connector is commonly used in telecommunications, test instrumentation, and other high-frequency signal transmission scenarios.
The contact plating is made of gold, which enhances electrical performance and corrosion resistance.
This connector belongs to the MIMCXV series, which offers options for high vibration resistance and non-magnetic applications.
The MMCXV-J-P-HF-ST-TH1 is classified as a standard size connector, ensuring compatibility with various systems.
