Samtec PCB Header STMM Series Straight Through Hole, 30 Contacts, 2 mm Pitch, 2 Row, Shrouded STMM-115-02-G-D

Free Delivery in India | Lowest Global Shipping Charges

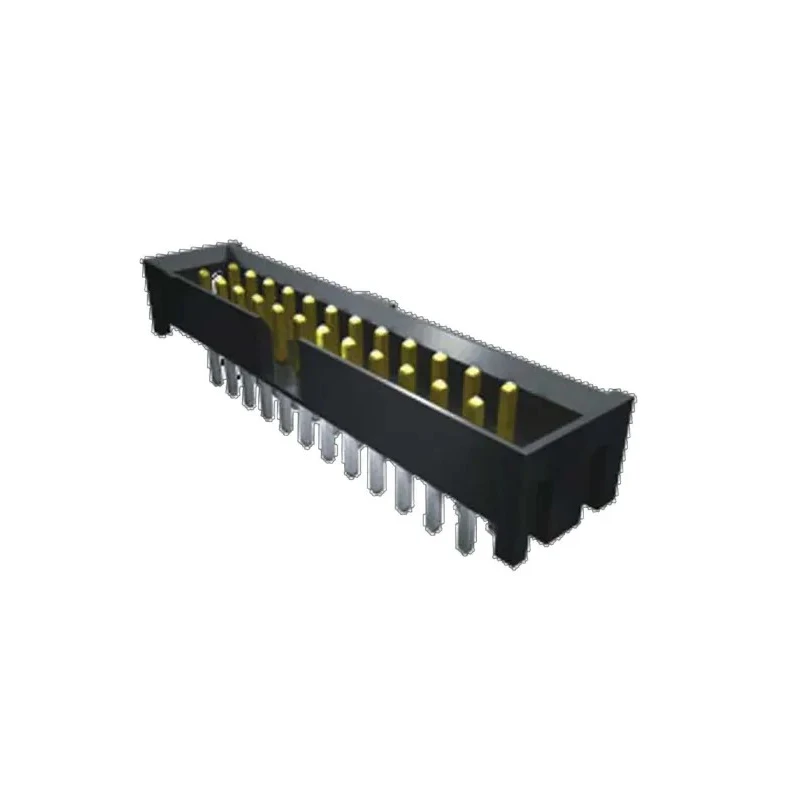

Samtec PCB Header STMM Series Straight Through Hole, 30 Contacts, 2 mm Pitch, 2 Row, Shrouded STMM-115-02-G-D

Name: Samtec PCB Header STMM Series Straight Through Hole, 30 Contacts, 2 mm Pitch, 2 Row, Shrouded STMM-115-02-G-D
Brand: Samtec
SKU: 401401
Price: 8.64 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Model	STMM-115-02-G-D
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	STMM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Terminal Material	phosphor bronze
Contact Plating	Gold
Number of Contacts	30
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
SMT lead coplanarity	(0.10mm) .004" max

Key Features

The header is designed with phosphor bronze contact material for excellent conductivity.
Gold plating on the contacts ensures corrosion resistance and reliable connections.
Housing is made from black liquid crystal polymer providing high temperature resistance.
The connector is wire-to-board type with through hole mounting suitable for PCB applications.
Operational temperature range from -55°C to 125°C supports industrial and commercial environments.
Termination is via soldering with male contact gender and 2 mm row pitch for precise fit.
Includes polarization notch to prevent incorrect mating and ensure proper assembly.

Product Description

The Samtec STMM-115-02-G-D is a high-quality PCB header from the STMM Series designed for robust electronic assembly applications. It features 30 individual contacts arranged in 2 rows with a 2 mm pitch, optimized for straight through hole mounting on printed circuit boards.

Its shrouded design offers mechanical protection and electrical isolation, reducing the risk of short circuits and improving connection reliability. The housing material is black liquid crystal polymer, which provides excellent durability and performance at extreme temperatures ranging from -55°C up to 125°C.

The contacts are crafted from phosphor bronze, known for its mechanical strength and conductivity, and finished with gold plating to prevent oxidation and maintain consistent electrical performance. The connector system is wire-to-board, facilitating straightforward interconnections in electronic devices and industrial equipment.

Additional technical features include a polarization notch to prevent incorrect mating, a male contact gender, and solder termination type assuring strong and permanent electrical connections. The product is suitable for various industrial sectors including electronic manufacturing, telecommunications, and power connectors.

The header uses liquid crystal polymer housing for high temperature endurance. Gold-plated phosphor bronze contacts provide excellent electrical and mechanical performance. Shrouded and straight orientation ensures increased safety and reliability.

Wire-to-board connector system supports diverse circuit board mounting requirements. Wide operating temperature range allows usage in demanding environments. Through hole mounting offers strong mechanical stability on PCBs.

Includes a polarization notch for correct connector alignment.

This Samtec STMM series PCB header is new and meets industry standards for robust, precise electrical connections. It is an ideal choice for engineers seeking reliable wire-to-board solutions in industrial and commercial electronic applications.
