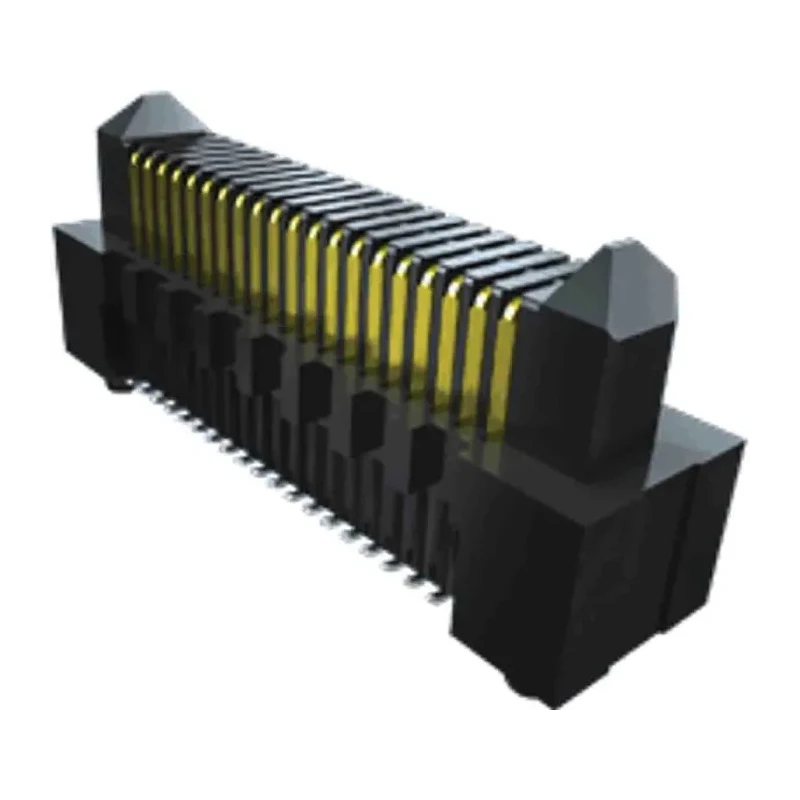

Samtec ERM8 Series Vertical Surface PCB Header, 80 Contact(s), 0.8 mm Pitch, 2 Row, Shrouded

Free Delivery in India | Lowest Global Shipping Charges

Samtec ERM8 Series Vertical Surface PCB Header, 80 Contact(s), 0.8 mm Pitch, 2 Row, Shrouded

Name: Samtec ERM8 Series Vertical Surface PCB Header, 80 Contact(s), 0.8 mm Pitch, 2 Row, Shrouded
Brand: Samtec
SKU: 401285
Price: 8.81 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	318V
Brand	Samtec
Orientation	Vertical
Current	2.2A
Model	ERM8
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	ERM8
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.8mm
Terminal Material	phosphor bronze
Standards/Approvals	RoHS
Number of Contacts	80
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board
Insulator Material	black LCP

Key Features

The header features a rugged high-speed design suitable for demanding electronic assemblies.
It provides a current rating of 2.2 A per pin ensuring reliable power handling.
Constructed with a black liquid crystal polymer insulator and phosphor bronze contacts for durability.
Designed for solder termination with a vertical orientation and surface mount style.
The shrouded housing enhances connector protection and alignment accuracy.
Operating voltage up to 318 V supports diverse electronic needs.
Temperature range from -55°C to 125°C for stable performance in harsh environments.
Compatible with board-to-board connectors providing broad application flexibility.

Product Description

Samtec ERM8-040-05.0-L-DV-TR is a robust vertical surface mount PCB header featuring 80 contacts arranged in 2 rows with a 0.8 mm pitch. The shrouded housing design enhances mechanical protection and proper mating with corresponding connectors. Built from high-quality black liquid crystal polymer insulator and phosphor bronze contacts, this header delivers excellent durability and high-speed signal integrity.

Rated for 2.2 A current per pin and capable of operating at voltages up to 318 V, it supports a wide range of electronic applications including industrial, telecommunications, consumer electronics, and computing equipment. Its operating temperature range spans -55°C to 125°C, making it suitable for harsh and varied environmental conditions.

The solder termination type and vertical orientation facilitate easy PCB integration with secure mechanical and electrical connections. The board-to-board connector system it belongs to ensures compatibility and expandability within multi-board assemblies.

Manufactured to RoHS standards, it complies with environmental regulations for lead-free and hazardous substance-free electronics manufacturing. This header's milled contact surfaces improve wear life and signal reliability, supporting data rates up to 56 Gbps PAM4, ideal for high-speed digital data transmission.

Rugged high speed header for demanding electronic assemblies. 2.2 A current rating per contact. Black liquid crystal polymer insulator and phosphor bronze terminal materials. Surface mount vertical orientation with solder termination.

Shrouded housing for protection and alignment. Rated voltage: 318 V. Operating temperature: -55°C to 125°C. Compatible with board-to-board connector systems. RoHS compliant manufacturing process. Supports 56 Gbps PAM4 high-speed data transmission.

This PCB header is ideal for electronic manufacturing, telecommunications equipment, industrial applications, and consumer electronics requiring reliable board interconnections. Browse the PCB Headers category on EnvMart for more professional-grade electronics connector solutions.
