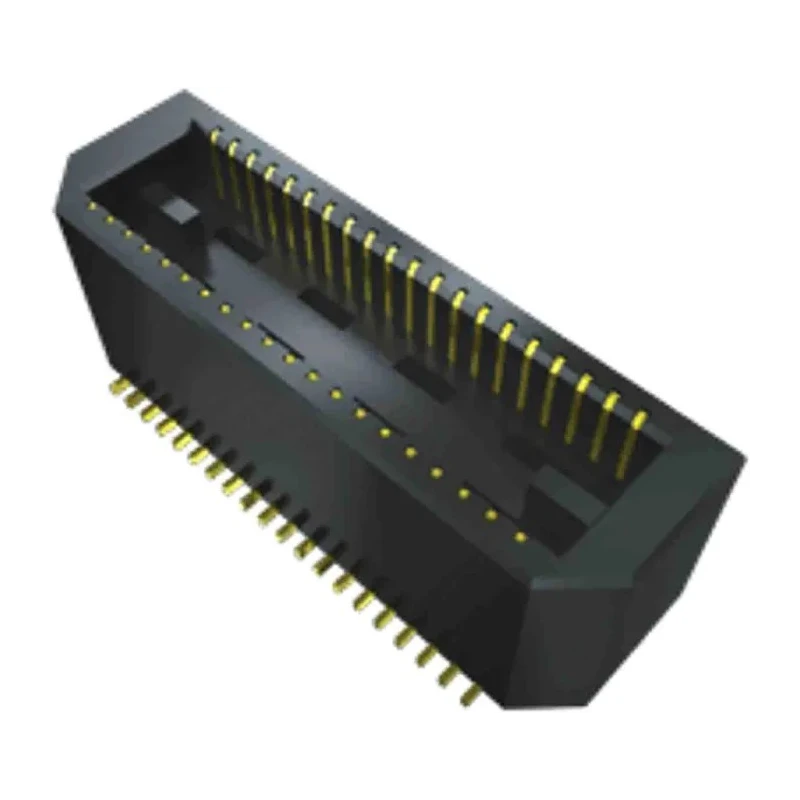

Samtec BTE Series Vertical Surface PCB Header, 80 Contacts, 0.8 mm Pitch, 2 Row, Shrouded BTE-040-02-L-D-A

The Samtec BTE-040-02-L-D-A is a high-quality vertical surface PCB header designed with 80 contacts arranged in 2 rows at a 0.8 mm pitch. Manufactured from liquid crystal polymer housing and phosphor bronze contacts, this shrouded header ensures durability, reliable electrical performance, and mechanical strength. It supports a current rating of 2 A and a voltage rating of 225 V, making it suitable for a wide range of electronic and industrial applications.

The operating temperature ranges from -55°C to 125°C, allowing use in demanding environments such as industrial machinery, telecommunications, and electronic assembly. Its board-to-board connector system with a vertical orientation offers excellent space-saving features and mechanical integrity. The shrouded design adds protection against mechanical damage and improves connection alignment accuracy.

This PCB header complies with RoHS standards, confirming that it meets environmental safety requirements. It also includes a standard alignment pin for easier and precise PCB mounting. The insulating material is liquid crystal polymer, known for its high-temperature resistance and excellent electrical insulation properties.

Current rating: 2 Ampere. Number of contacts: 80. Pitch: 0.8 mm. Rows: 2. Housing material: Liquid Crystal Polymer. Contact material: Phosphor Bronze. Operating temperature range: -55°C to 125°C. Voltage rating: 225 V. Connector system: Board-to-board, vertical orientation.

Shrouded for protection and alignment.

Such features make this product ideal for applications in electronics manufacturing, instrumentation, industrial control systems, and communication devices. It provides a reliable interconnect solution for complex PCB assemblies.
