Samtec TFC Series Straight Surface PCB Header 40 Contacts 1.27 mm Pitch 2 Row Shrouded TFC-120-02-L-D-A

Free Delivery in India | Lowest Global Shipping Charges

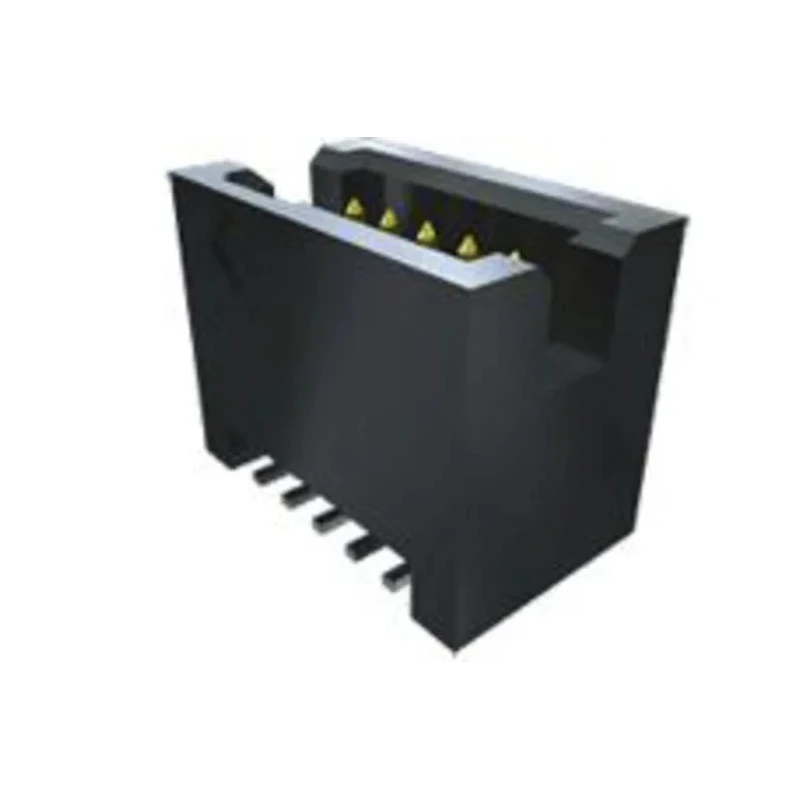

Samtec TFC Series Straight Surface PCB Header 40 Contacts 1.27 mm Pitch 2 Row Shrouded TFC-120-02-L-D-A

Name: Samtec TFC Series Straight Surface PCB Header 40 Contacts 1.27 mm Pitch 2 Row Shrouded TFC-120-02-L-D-A
Brand: Samtec
SKU: 399715
Price: 6.23 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	350V
Brand	Samtec
Orientation	Straight
Current	3A
Model	TFC-120-02-L-D-A
Mount Type	Surface
Special Features	Lower cost plating option
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	TFC
Termination	Through-hole, surface mount
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Contact System	.018" (0.46 mm) diameter post

Key Features

The header supports a current rating of 3A for reliable electrical performance.
Constructed from liquid crystal polymer housing material providing durability and high heat resistance.
Contacts are made from phosphor bronze and plated with gold for corrosion resistance and dependable connectivity.
Operates reliably in temperature ranges from -55°C to 125°C, suitable for diverse industrial applications.
It includes solder termination type for secure PCB mounting.
Designed as male contact gender with wire-to-board connector system.
The product supports a voltage rating of 350V for safe circuit operation.
Shrouded design offers protection and precise mating with compatible connectors.

Product Description

Samtec TFC-120-02-L-D-A is a high-quality PCB header from the TFC Series designed for industrial electronic components and power connectors. This straight surface mount header features 40 gold-plated contacts arranged in 2 rows at a 1.27 mm pitch, which supports a maximum current of 3A and a voltage rating of 350V. The housing is made of liquid crystal polymer, ensuring durability and excellent thermal stability with operating temperatures ranging from -55°C to 125°C.

This male gender header connector system provides secure and reliable wire-to-board connections with through-hole and surface mount termination types. Its shrouded design improves mating reliability by protecting contacts and preventing incorrect insertions. The contact system utilizes .018" (0.46 mm) diameter posts to maintain strong electrical contact. Additionally, the special lower-cost gold plating provides an economical solution without sacrificing performance standards.

Ideal for applications in electronics manufacturing, industrial automation, power systems, and other commercial electronic devices. This product meets stringent quality requirements, although it has no specific certifications listed. The Samtec TFC series is well-suited for designers and engineers seeking dependable PCB header solutions.

The header supports 3A current capacity with stable electrical performance. Liquid crystal polymer housing ensures mechanical strength and heat endurance. Gold-plated phosphor bronze contacts resist corrosion and enhance conductivity.

Wide operating temperature range from -55°C to 125°C. Shrouded, two-row design for protection and precise connector mating. Solder termination guarantees durable PCB assembly. Supports wire-to-board connector systems with male contact gender.

Rated for 350V for reliable circuit operation. Lower cost plating option reduces manufacturing expense. Explore more PCB Headers and related connectors on EnvMart for a wide range of industrial and commercial electronic solutions.
