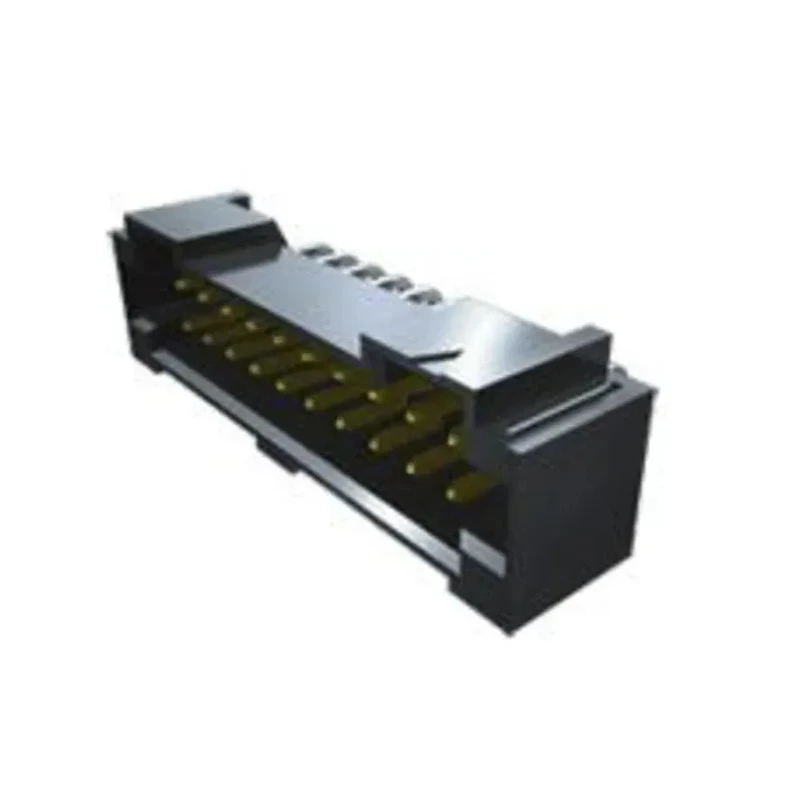

Samtec T2M Series Right Angle Through Hole PCB Header 20 Contacts 2 mm Pitch 2 Row Shrouded T2M-110-01-L-D-RA-WT

Free Delivery in India | Lowest Global Shipping Charges

Samtec T2M Series Right Angle Through Hole PCB Header 20 Contacts 2 mm Pitch 2 Row Shrouded T2M-110-01-L-D-RA-WT

Name: Samtec T2M Series Right Angle Through Hole PCB Header 20 Contacts 2 mm Pitch 2 Row Shrouded T2M-110-01-L-D-RA-WT
Brand: Samtec
SKU: 399642
Price: 7.21 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	350V
Brand	Samtec
Orientation	Right Angle
Current	3.8A
Model	T2M-110-01-L-D-RA-WT
Mount Type	Through Hole
Special Features	Screw down and weld tab features available for the most rugged requirements
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	T2M
Termination	Through-hole, surface mount
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	2.29mm
Contact System	0.50 mm (.020") square post

Key Features

Constructed with a shrouded design for secure connection.
Features 3.8A current rating suitable for robust electrical applications.
Housing made from Liquid Crystal Polymer for durability.
Gold-plated phosphor bronze contacts ensure reliable conductivity.
Operates between -55°C to 125°C providing wide temperature resilience.
Solder termination through-hole mount type for PCB integration.
Right angle orientation enables compact PCB layouts.
Mating pin length of 2.29 mm allows secure connections.

Product Description

Samtec T2M-110-01-L-D-RA-WT is a high-quality right angle through hole PCB header designed for industrial and electronic applications. It features 20 contacts arranged in 2 rows with a precise 2 mm pitch, making it ideal for dense PCB assemblies requiring robust wire-to-board connections.

The housing is constructed from Liquid Crystal Polymer, providing excellent mechanical stability and resistance to heat and chemicals. The phosphor bronze contacts are gold-plated for superior electrical conductivity and resistance to corrosion. Rated for a current of 3.8A and voltage up to 350V, this connector is suitable for a broad range of power and signal applications.

Operating temperature ranges from -55°C to 125°C accommodate harsh environmental conditions, typical in industrial, manufacturing, and electronic device assembly scenarios. The right angle orientation and shrouded connector system ensure secure and compact PCB integration. The termination type is solder through-hole, facilitating easy and reliable mounting on printed circuit boards.

Constructed with a shrouded design for secure connection. Features 3.8A current rating suitable for robust electrical applications. Housing made from Liquid Crystal Polymer for durability. Gold-plated phosphor bronze contacts ensure reliable conductivity.

Operates between -55°C to 125°C providing wide temperature resilience. Solder termination through-hole mount type for PCB integration. Right angle orientation enables compact PCB layouts. Mating pin length of 2.29 mm allows secure connections.

Supports operating voltage up to 350V. Special rugged features include screw down and weld tab options.

This PCB header is widely applicable in industrial equipment, electronic modules, power distribution boards, and automation systems. Its proven quality and robust construction make it a reliable choice for demanding environments requiring durable PCB connectors.
