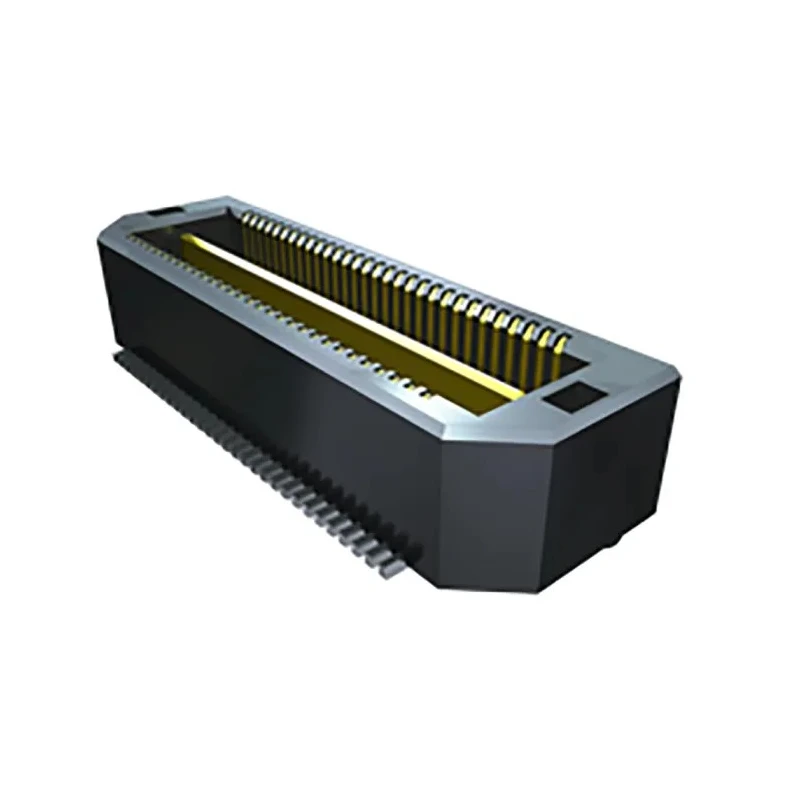

Samtec QTH Series Straight Surface PCB Header 60 Contacts 0.5 mm Pitch 2 Row Shrouded QTH-030-01-F-D-A

Free Delivery in India | Lowest Global Shipping Charges

Samtec QTH Series Straight Surface PCB Header 60 Contacts 0.5 mm Pitch 2 Row Shrouded QTH-030-01-F-D-A

Name: Samtec QTH Series Straight Surface PCB Header 60 Contacts 0.5 mm Pitch 2 Row Shrouded QTH-030-01-F-D-A
Brand: Samtec
SKU: 399535
Price: 6.15 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	175V
Brand	Samtec
Orientation	Straight
Current	2A
Model	QTH-030-01-F-D-A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	QTH
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	60
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Constructed from Liquid Crystal Polymer housing for durability.
Phosphor Bronze contact material plated with gold for reliable connectivity.
Supports a current rating of 2 A and voltage up to 175 V.
Operating temperature range from -55°C to 125°C enables use in harsh environments.
Designed for board-to-board connector system with solder termination type and male contact gender.
Suitable for electronic components requiring compact 0.5 mm pitch spacing.
Shrouded design protects contacts and ensures secure mating.
Surface mount type enables stable placement on PCB assemblies.

Product Description

Samtec QTH-030-01-F-D-A is a high-performance PCB Header designed for electronic and electrical applications requiring compact, reliable connectors. This board-to-board connector features a 0.5 mm pitch and 2-row straight surface mount configuration, providing 60 contacts for dense interconnect solutions.

The header housing is made of Liquid Crystal Polymer, offering excellent mechanical strength and high-temperature resistance. Contacts are constructed from phosphor bronze and plated with gold to assure superior electrical conductivity and corrosion resistance, supporting up to 2 A current and 175 V voltage rating.

It operates reliably in extreme temperature ranges from -55°C to 125°C, making it suitable for industrial, commercial, and automotive PCB assemblies exposed to harsh conditions. The shrouded design helps protect the contacts from damage and contamination, enhancing connection integrity.

This PCB header provides solder termination type and features male contacts, facilitating secure soldering to printed circuit boards. Its surface mount type is compatible with automated PCB assembly processes, ensuring efficient manufacturing and high repeatability.

Ideal for applications in electronics manufacturing, instrumentation, industrial control, and communication systems. This product contributes to compact, high-speed, and reliable PCB connections where space-saving and durability are paramount.

Constructed from Liquid Crystal Polymer housing for durability. Phosphor Bronze contact material plated with gold for reliable connectivity. Supports a current rating of 2 A and voltage up to 175 V. Operating temperature range from -55°C to 125°C enables use in harsh environments.

Designed for board-to-board connector system with solder termination type and male contact gender. Suitable for electronic components requiring compact 0.5 mm pitch spacing. Shrouded design protects contacts and ensures secure mating.

Surface mount type enables stable placement on PCB assemblies. Explore more PCB Headers and connectors to suit your electronics manufacturing needs on EnvMart.
