Nexperia 1-Element Uni-Directional ESD Protection Diode 2-Pin SOD-523 PESD5V0X1UB,135

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 1-Element Uni-Directional ESD Protection Diode 2-Pin SOD-523 PESD5V0X1UB,135

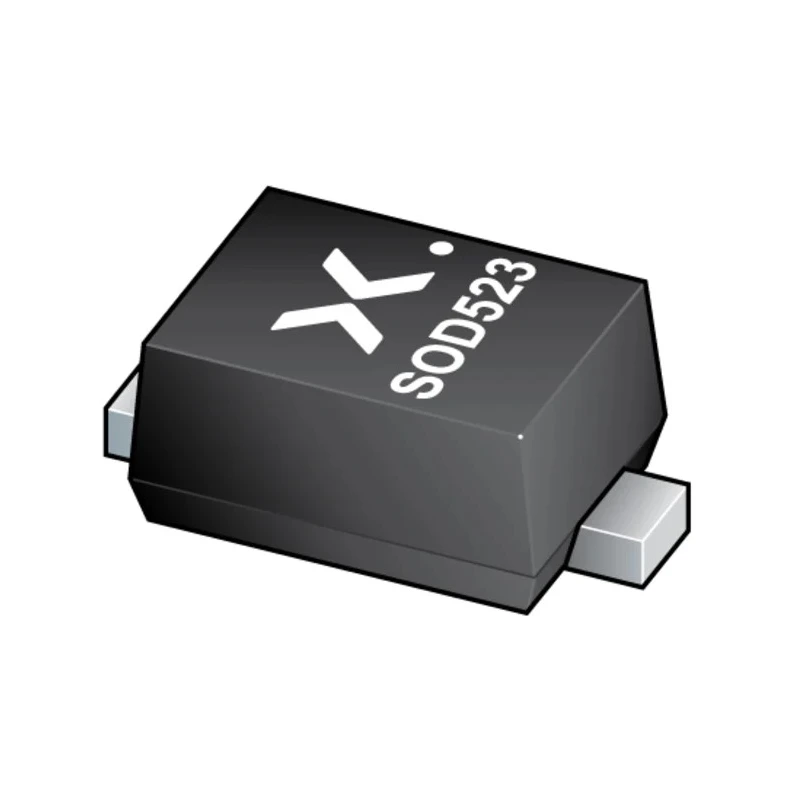

Name: Nexperia 1-Element Uni-Directional ESD Protection Diode 2-Pin SOD-523 PESD5V0X1UB,135
Brand: Nexperia
SKU: 398565
Price: 0.23 USD
Availability: InStock



Category ESD Protection Diode Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	0.65mm
Length	1.25mm
Model	PESD5V0X1UB,135
Width	0.85mm
Mount Type	Surface
Series	PESD
Maximum Operating Temperature	150°C
Package Type	SOD-523
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	8V
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	5.8V
Maximum Reverse Stand-off Voltage Vwm	5.5V
Test Current It	5mA
Maximum Peak Pulse Current Ippm	1.5A
Maximum Reverse Leakage Current	100nA
ROHM EDZCVT2R6.8B Uni-Directional TVS Diode, 150 mW, 2-Pin SOD-523Brand	ROHM

Key Features

The device features an ultra-low capacitance of approximately 0.4 pF suitable for high-speed data line protection.
Designed for single line ESD protection with unidirectional configuration.
Provides a low clamping voltage of 8 V for effective transient suppression.
Operates reliably from -55°C up to 150°C, ideal for tough environmental conditions.
Compact dimensions with a length of 1.25 mm, width of 0.85 mm, and a height of 0.65 mm.
Maximum reverse leakage current of 100 nA ensures minimal power loss.
Complies with automotive standard AEC-Q101 ensuring automotive-grade reliability.
Suitable for protecting sensitive electronic circuit lines from high-voltage spikes and surges.

Product Description

Nexperia PESD5V0X1UB,135 is a 1-element uni-directional electrostatic discharge (ESD) protection diode designed in a compact 2-pin SOD-523 surface-mount package. It features ultra-low diode capacitance down to 0.4 pF, making it ideal for protecting high-speed data lines from electrostatic and transient voltage damage without degrading signal integrity.

The diode supports a minimum breakdown voltage of 5.8 V, and a maximum reverse stand-off voltage of 5.5 V with a clamping voltage of 8 V. Its maximum peak pulse current rating is 1.5 A, allowing it to absorb significant transient surges.

Operating temperature ranges from -55°C to 150°C, ensuring performance in demanding industrial, automotive, and electronic applications requiring reliable ESD protection. With a maximum reverse leakage current of only 100 nA, power dissipation is minimal during normal operation.

The ultra-small dimensions (1.25 mm length, 0.85 mm width, 0.65 mm height) and surface mount SOD-523 package provide maximum printed circuit board (PCB) design flexibility with minimal space usage. The device meets automotive AEC-Q101 standards, confirming its suitability for automotive electronics.

This ESD diode is widely used in industrial electronics, telecommunications, automotive systems, manufacturing equipment, and consumer electronic devices for efficient and compact protection against ESD and transient voltage spikes.

Ultra-low capacitance protecting high-speed data lines effectively. Low clamping voltage for enhanced transient suppression. Wide operating temperature range suitable for harsh environments. Compact surface-mount package conserving PCB space.

Automotive grade with AEC-Q101 compliance ensuring durability and reliability. Ideal for industrial, automotive, and consumer electronics applications. Single element design optimized for unidirectional protection. High surge current capacity to handle transient events safely.

Explore the Electronics & Electricals category on EnvMart for additional semiconductors and ESD protection devices to enhance your circuit design and reliability.

Explore more products in our ESD Protection Diode category.
