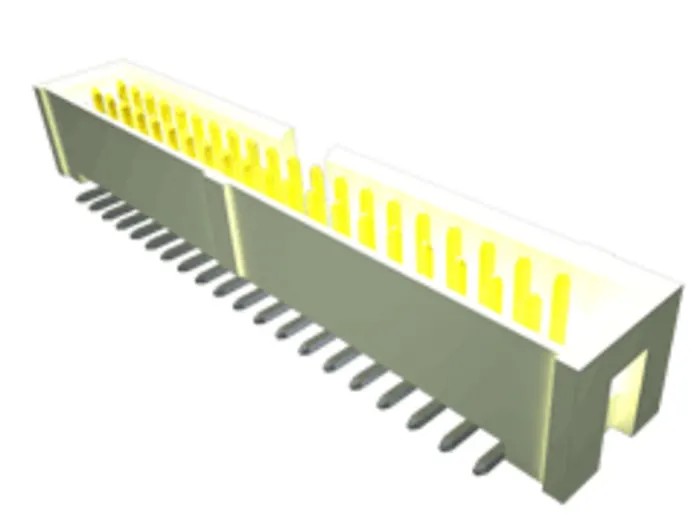

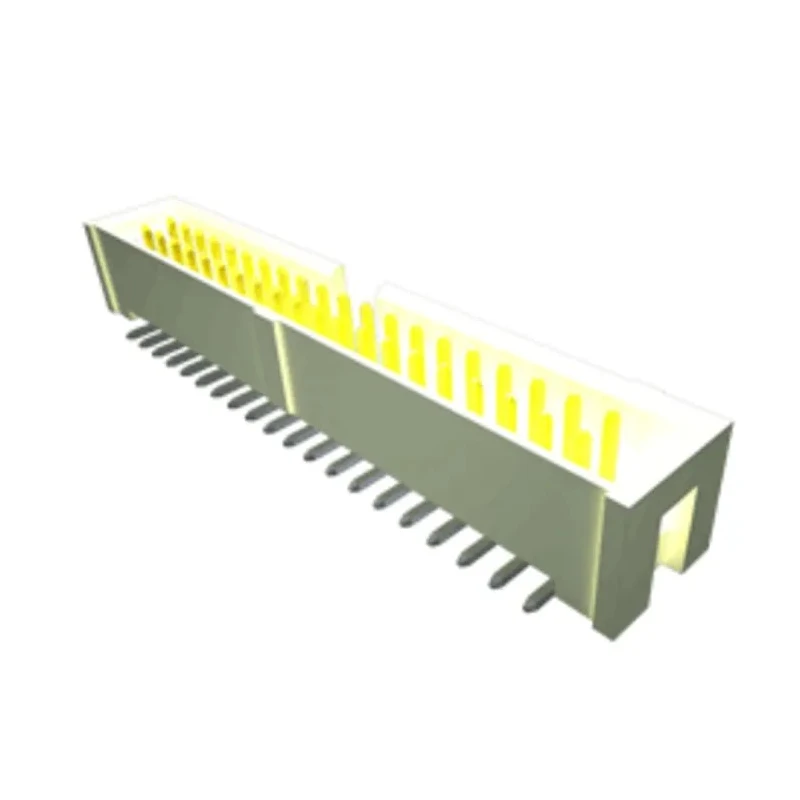

Samtec HTST Series Straight Surface PCB Header 10 Contacts 2.54 mm Pitch 2 Row Shrouded HTST-105-01-L-DV

Free Delivery in India | Lowest Global Shipping Charges

Samtec HTST Series Straight Surface PCB Header 10 Contacts 2.54 mm Pitch 2 Row Shrouded HTST-105-01-L-DV

Name: Samtec HTST Series Straight Surface PCB Header 10 Contacts 2.54 mm Pitch 2 Row Shrouded HTST-105-01-L-DV
Brand: Samtec
SKU: 398326
Price: 3.2 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	United States
Voltage	1kV
Brand	Samtec
Orientation	Straight
Current	3.4A
Model	HTST-105-01-L-DV
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	HTST
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Provides a current rating of 3.4A suitable for moderate power applications.
Body constructed from Liquid Crystal Polymer for durability and thermal stability.
Features gold-plated phosphor bronze contacts ensuring excellent conductivity and corrosion resistance.
Designed with a surface mount type and wire-to-board connector system.
Operates reliably from -55°C to 125°C for diverse environmental conditions.
Termination type is solder with male contact gender for standard PCB assembly.
Shrouded design provides polarization and protection against mis-mating.

Product Description

Samtec HTST-105-01-L-DV model is a high-quality straight surface mount PCB header designed for reliable electrical connections in electronic assemblies. With 10 contacts arranged in 2 rows and a precise 2.54 mm pitch, it is engineered to meet demanding connectivity requirements in industrial, commercial, and manufacturing environments.

The housing material is Liquid Crystal Polymer, which offers high heat resistance and dimensional stability, supporting operation in harsh environments with temperatures ranging from -55°C to 125°C. The contacts are made of phosphor bronze with durable gold plating to ensure low contact resistance, excellent conductivity, and corrosion resistance over long service life.

This product supports a current rating of 3.4A and a voltage rating of 1kV, making it suitable for moderate power electronic applications such as power connectors in control panels, industrial automation, and computing systems.

The connector system is wire-to-board with a surface mount design, enabling easy PCB assembly and secure electrical interfacing. The shrouded style includes polarization notches to prevent incorrect mating and enhance safety.

Current rating of 3.4A for reliable moderate power delivery. High-performance Liquid Crystal Polymer housing for durability. Gold-plated phosphor bronze contacts for superior electrical performance. Surface mount wire-to-board design for easy PCB integration.

Operating temperature range from -55°C to 125°C for harsh conditions. Solder termination with male contacts ensuring compatibility. Rated insulation voltage of 1kV for electrical safety. Shrouded design with polarization to prevent misalignment.

This PCB header is ideal for use in electronics manufacturing, industrial automation, telecommunications, and other sectors requiring robust and precise PCB interconnections. Its quality and material composition guarantee long-term reliability and compliance with industrial standards.

Explore the wide range of PCB connectors and accessories available in EnvMart to complement this Samtec PCB Header HTST-105-01-L-DV for your next project.
