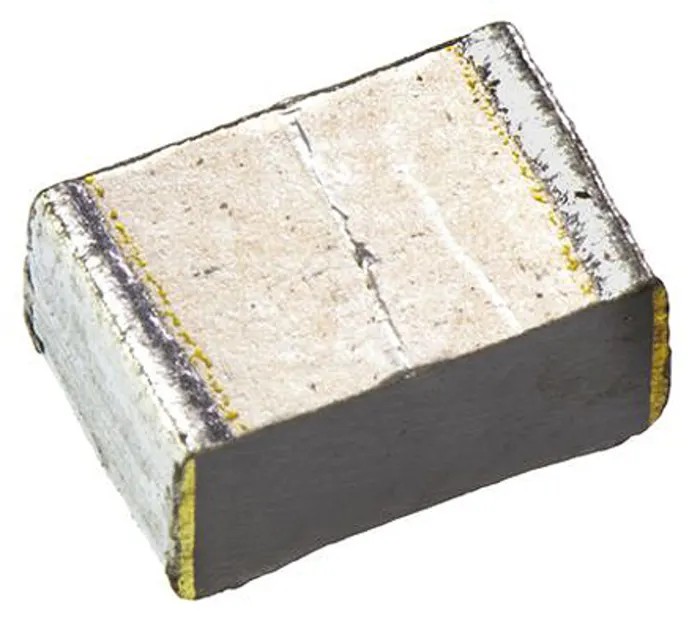

Panasonic ECHU(X) 16 V dc 16V ac 2.2 nF Surface Film Capacitor ECHU1C222GX5

Panasonic ECHU1C222GX5 model is a high-quality Surface Film Capacitor with 2.2 nF capacitance rated at 16V dc and 16V ac, designed primarily for precision applications in electronics such as filtering, oscillation, resonance, and time-constant circuits.

Constructed from stacked metallised PPS film without moulding, these capacitors feature a robust mould-less design facilitating efficient reflow soldering processes. The compact dimensions of 1.6 mm length, 0.8 mm width, and 0.7 mm height allow for space-saving PCB layouts in electronic assemblies.

The component maintains a maximum operating temperature of 125°C and complies with RoHS standards, ensuring reliable operation in demanding thermal environments. With a low equivalent series resistance (ESR), these capacitors deliver excellent electrical performance suitable for audio and filtering circuits in industrial, laboratory, manufacturing, and commercial electronics.

Constructed from stacked metallised PPS film for enhanced durability. Features a mould-less construction enabling efficient performance. Designed for reflow soldering with maximum operating temperature of 125°C. Low equivalent series resistance (ESR) ensures high-quality signal performance.

Suitable for filtering, oscillation, resonance, and time-constant applications. Complies with RoHS environmental standards. Compact footprint and lightweight design improve production efficiency.

This Panasonic film capacitor series is ideal for use in small electronic circuits requiring stable capacitance and consistent performance over time. It supports automated assembly solutions due to its reflow solder compatibility.
