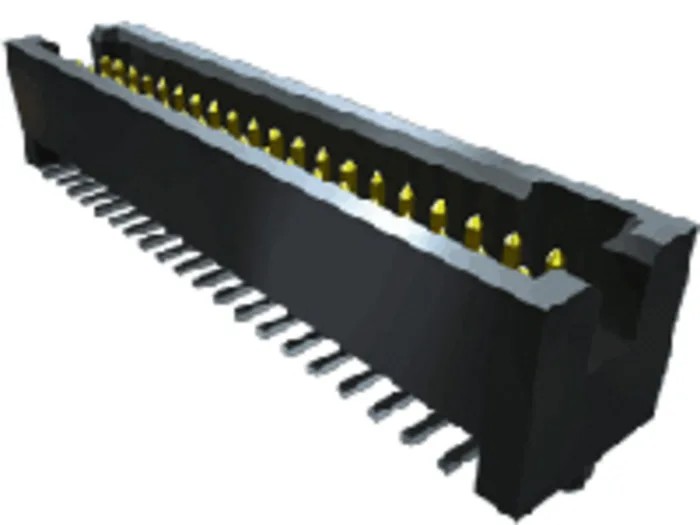

Samtec Right Angle Surface PCB Header 50 Contacts 1.27 mm Pitch 2 Row Shrouded TFM-125-01-S-D-RA

Samtec TFM-125-01-S-D-RA is a right angle surface mount PCB header designed for high reliability in industrial and electronics applications. Featuring 50 male contacts arranged in 2 rows with a 1.27 mm pitch, this connector supports up to 250V and 3.2A current, making it ideal for medium-power board-to-board and wire-to-board connections.

The header housing is manufactured from liquid crystal polymer, providing excellent mechanical strength and thermal stability. The contacts, made of phosphor bronze and plated with gold, ensure consistent electrical performance and corrosion resistance, enhancing connector longevity.

The rugged design includes a multi-finger beryllium copper contact system that delivers extended life and high mating cycles, suitable for demanding environments. The shrouded body aids blind mating while preventing damage or misalignment, improving assembly accuracy and reducing maintenance.

The termination style is solder compatible, with surface mount and through-hole options, allowing integration into various PCB designs. With an operating temperature range from -55°C to 125°C, it meets requirements for a wide spectrum of industrial, manufacturing, and electronic equipment use cases.

Additional rugged features such as screw down, weld tab, and solder nail options enable customized solutions for high-vibration or harsh industrial environments, expanding usability across multiple sectors including telecommunications, automotive electronics, and power systems.

Constructed with liquid crystal polymer housing ensuring high durability. Phosphor bronze contacts plated with gold for reliable electrical connectivity. Designed for surface mounting with male solder termination. Operating temperature range from -55°C to 125°C suitable for varied environments.

Supports voltage up to 250 V and current rating of 3.2 A for demanding electrical performance. Multi-finger BeCu contact system provides extended life and high cycle reliability. Right angle orientation facilitates flexible board-to-board or wire-to-board configurations.

Shrouded connector system prevents misalignment during blind mating. Suitable for industrial, electronics manufacturing, and assembly applications requiring durable and precise PCB interfacing. Includes options for screw down, weld tab, and solder nail for rugged installations.

This Samtec TFM series PCB header is a trusted solution for engineers and designers aiming to achieve reliable interconnects in complex electronics assemblies. Explore more connectors and electronic components in the PCB Headers category at EnvMart for comprehensive product selection.
