onsemi Small Signal NPN Transistor 500 mA 80 V 3-Pin TO-92 MPSA06RA

Free Delivery in India | Lowest Global Shipping Charges

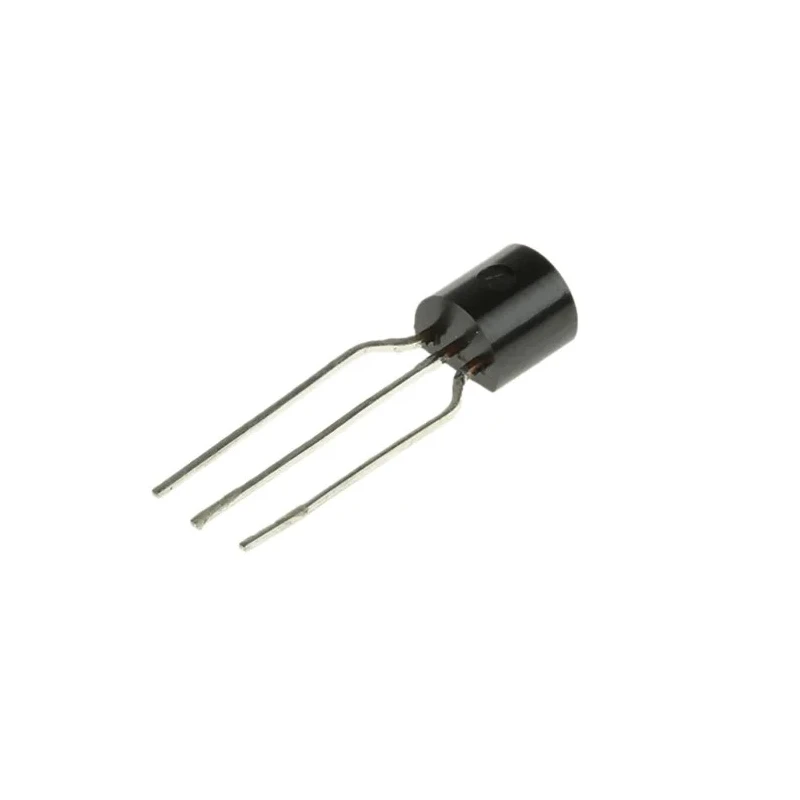

onsemi Small Signal NPN Transistor 500 mA 80 V 3-Pin TO-92 MPSA06RA

Name: onsemi Small Signal NPN Transistor 500 mA 80 V 3-Pin TO-92 MPSA06RA
Brand: onsemi
SKU: 393557
Price: 0.16 USD
Availability: InStock



Category Bipolar Transistors Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	20.95mm
Length	5.2mm
Model	MPSA06RA
Width	4.19mm
Mount Type	Through Hole
Maximum Operating Temperature	150°C
Package Type	TO-92
Minimum Operating Temperature	-55°C
Pin Count	3
Maximum Collector Emitter Voltage Vceo	80V
Minimum DC Current Gain hFE	100
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	4V
Maximum Collector Base Voltage VCBO	80V
Maximum Power Dissipation Pd	625mW
Maximum DC Collector Current Idc	500mA
Transistor Configuration	Single
Maximum Transition Frequency ft	100MHz

Key Features

Maximum DC collector current rated at 500 mA.
Maximum collector-emitter voltage of 80 V.
TO-92 through-hole package with 3 pins.
Minimum DC current gain (hFE) of 100 for reliable amplification.
Operates at a frequency up to 100 MHz.
Maximum power dissipation up to 625 mW.
Operating temperature range from -55°C to 150°C.
NPN transistor polarity suitable for various circuit applications.

Product Description

onsemi MPSA06RA is a high-quality small signal bipolar junction transistor designed for general-purpose amplification and switching applications in electronic circuits. It is an NPN type transistor, featuring a maximum DC collector current of 500 mA and a collector-emitter voltage rating of 80 V, making it suitable for moderate power applications.

Encased in a compact TO-92 through-hole package with 3 pins, the MPSA06RA ensures easy mounting and reliable circuit integration. It offers a minimum DC current gain (hFE) of 100 and can operate efficiently at frequencies up to 100 MHz, providing good performance in audio, signal processing, and switching circuits.

This transistor supports a power dissipation up to 625 mW, allowing it to handle moderately high loads without overheating. The operating temperature range from -55°C to 150°C facilitates usage in diverse environmental and industrial conditions.

Key physical dimensions include a length of 5.2 mm, width of 4.19 mm, and height of 20.95 mm, making it suitable for tight PCB spaces. The transistor configuration is single, and it features an emitter-base voltage maximum of 4 V and collector-base voltage maximum of 80 V.

Typical industrial and commercial applications include audio amplifiers, signal amplification, power control circuits, and other electronic devices requiring reliable switching and amplification components.

Maximum DC collector current rated at 500 mA. Maximum collector-emitter voltage of 80 V. TO-92 through-hole package with 3 pins. Minimum DC current gain (hFE) of 100 for reliable amplification. Operates at a frequency up to 100 MHz.

Maximum power dissipation up to 625 mW. Operating temperature range from -55°C to 150°C. NPN transistor polarity suitable for various circuit applications. Compact physical dimensions: length 5.2 mm, width 4.19 mm, height 20.95 mm.

This onsemi bipolar transistor MPSA06RA is ideal for a wide range of industrial, laboratory, and electronics manufacturing applications, ensuring robust performance and longevity. Explore more Bipolar Transistors and semiconductor components within EnvMart's extensive catalog to find the perfect match for your technical needs.
