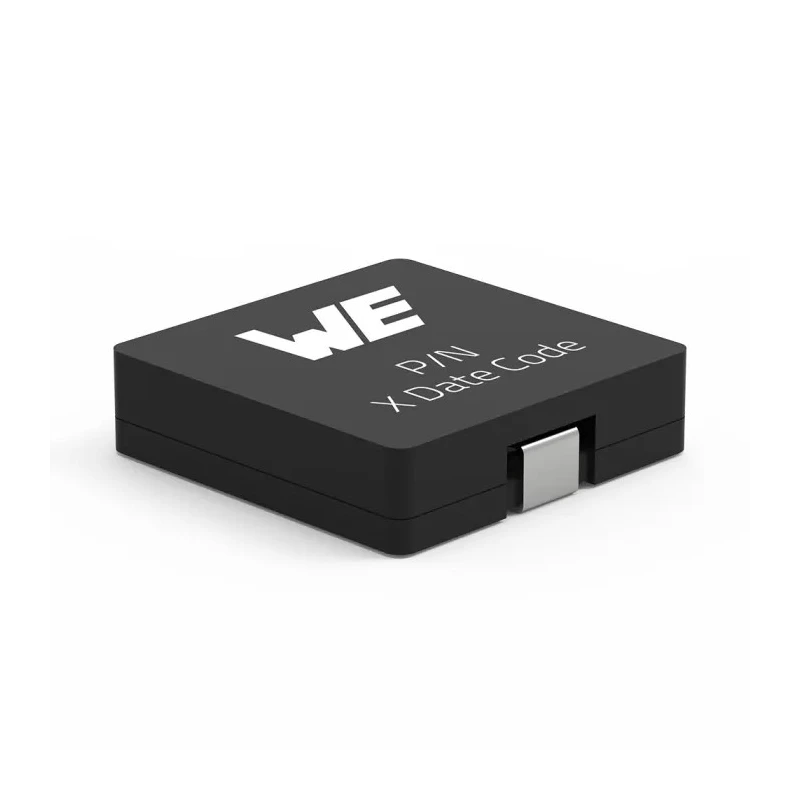

Wurth Elektronik Shielded Wirewound Surface Mount Inductor 9.2μH Flat Wire Winding 12A 7443551920
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 6.2mm |
| Length | 13.2mm |
| Depth | 12.8mm |
| Packaging | Tape & Reel |
| Series | WE-HCI |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -40°C |
| Core Material | WE-Perm |
| Inductance | 9.2μH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 1365 |
| Maximum DC Current | 12A |
| Pin Count | 2 |
| Maximum DC Resistance | 7.8mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 26MHz |
| Inductor Construction | Flat Wire Winding |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a WE-Perm core and flat wire winding for enhanced performance.
- Maximum DC current rating of 12 Amps ensures suitability for demanding circuits.
- Offers a maximum self-resonant frequency of 26 MHz maintaining signal integrity.
- Features low DC resistance of 7.8 mΩ to reduce power loss.
- Compact tape and reel packaging with dimensions of 13.2mm length, 12.8mm depth, and 6.2mm height.
- Shielded design reduces electromagnetic interference in industrial electronics.
- Meets automotive standard AEC-Q200 ensuring reliability in harsh environments.
- Operational temperature range from -40°C to 155°C supports wide industrial applications.
Product Description
Wurth Elektronik 7443551920 shielded wirewound surface mount inductor provides a 9.2μH inductance with a WE-Perm core and a flat wire winding construction. Designed for industrial and commercial applications, it offers excellent performance in environments requiring high current capacity and electromagnetic shielding.
This inductor supports a maximum DC current of 12A and maintains a low DC resistance of 7.8 mΩ, which helps minimize power loss and improve efficiency. It operates reliably within a temperature range of -40°C to 155°C, making it suitable for automotive-grade and industrial grade electronics that meet the AEC-Q200 standard.
The component features a shielded design to reduce stray electromagnetic fields and interference, vital for sensitive electronic circuits. Its compact dimensions include a length of 13.2mm, depth of 12.8mm, and height of 6.2mm, packed in tape and reel format to facilitate automated assembly processes.
Its flat wire winding and moulded construction enhance mechanical stability and durability during operation, ensuring sustained performance in applications such as industrial computers, laptops, graphic cards, motherboards, DC-DC converters, filters, and switching regulators.
Certified with standards including IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS, this inductor is manufactured in China and belongs to the WE-HCI series known for magnetically shielded wire wound chokes.
Constructed with a WE-Perm core and flat wire winding for superior inductive performance. Maximum current rating of 12A suitable for power demanding circuits. Low DC resistance at 7.8 mΩ reduces energy loss during operations.
Shielded design minimizes electromagnetic interference. Compact size supports high-density PCB layouts. Meets automotive AEC-Q200 for enhanced reliability. Wide operating temperature range from -40°C to 155°C. Moulded flat wire wound for enhanced mechanical strength.
Surface mount termination enables seamless PCB installation. Industry standards compliance ensures safe and dependable use.
This inductor is a high-quality component suitable for industrial, automotive, computing, and power electronics applications. Explore the Electronics & Electricals section at EnvMart for similar high-performance inductors and related components.
Explore more products in our Power Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 9.2μH.
It supports a maximum DC current rating of 12A, making it suitable for demanding circuits.
The maximum self-resonant frequency is 26MHz, which helps maintain signal integrity.
It features a low DC resistance of 7.8 mΩ, which reduces power loss during operation.
The inductor has dimensions of 13.2mm in length, 12.8mm in depth, and 6.2mm in height.
It operates reliably within a temperature range of -40°C to 155°C.
It complies with automotive standard AEC-Q200 and other standards including IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS.
It is constructed with a WE-Perm core and features flat wire winding for enhanced performance.
It is packaged in tape and reel format, facilitating automated assembly processes.
This inductor uses a surface mount termination style for easy PCB installation.
It is suitable for various applications including industrial computers, laptops, graphic cards, motherboards, DC-DC converters, filters, and switching regulators.
This model has a pin count of 2.
