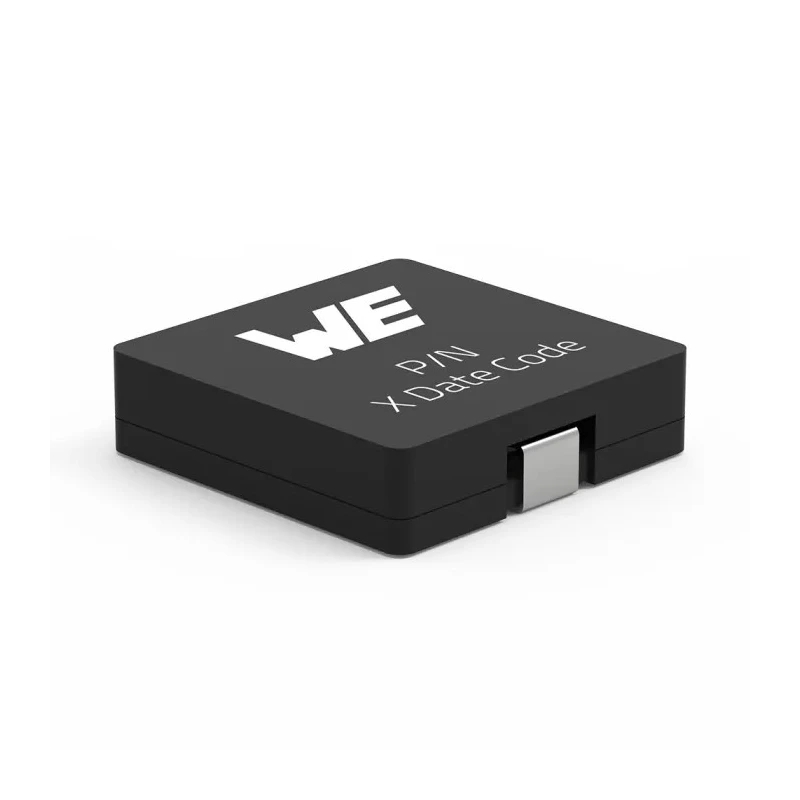

Wurth Elektronik WE-HCI 2212 Shielded Wirewound Surface Mount Inductor with Manganese Zinc Ferrite Core 47μH Flat 74435584700

Wurth Elektronik 74435584700 is a shielded wirewound surface mount inductor designed with a manganese zinc ferrite core, providing an inductance of 47μH. This flat wire winding construction utilizes a 2212 package size with dimensions 22.5mm length, 12mm height, and 22mm depth, making it suitable for compact electronic assemblies. The inductor features magnetic shielding to minimize electromagnetic interference and ensure stable performance in sensitive circuitry.

This inductor supports a maximum DC current of 9A and a maximum DC resistance of 19.2mΩ, offering efficient power handling with very low losses. The device maintains consistent inductance with ±20% tolerance and operates reliably across a temperature range from -40°C to 125°C, meeting automotive AEC-Q200 standards.

Packaged in tape and reel format, it is optimized for high-volume automated PCB assembly processes. Its termination style is surface mount, compatible with standard reflow soldering techniques. The core material is manganese zinc ferrite, contributing to stable inductance characteristics and high saturation currents. Maximum self-resonant frequency of 6.1 MHz enables its application in switching regulators, DC-DC converters, and polyphase power supply systems.

Wurth Elektronik WE-HCI series inductors are widely used in industrial computers, laptops, graphics cards, and motherboards. These inductors are ideal for applications requiring flat coil geometry, shielding, and high current handling in a compact footprint.

Flat wire winding construction ensures low stray field and high current capability. Magnetically shielded to minimize electromagnetic interference in electronic circuits. Maximum DC current rating of 9A suitable for high current applications.

Reliable surface mount termination style compatible with automated PCB assembly. Wide operating temperature range from -40°C to 125°C for industrial environments. Tape and reel packaging supports efficient production and component handling.

Compliance with automotive AEC-Q200 standard for enhanced quality and reliability. Core material made from manganese zinc ferrite for stable inductance under load. Maximum DC resistance of 19.2mΩ ensures low power loss during operation.

Maximum self-resonant frequency at 6.1 MHz suitable for power conversion circuits.
