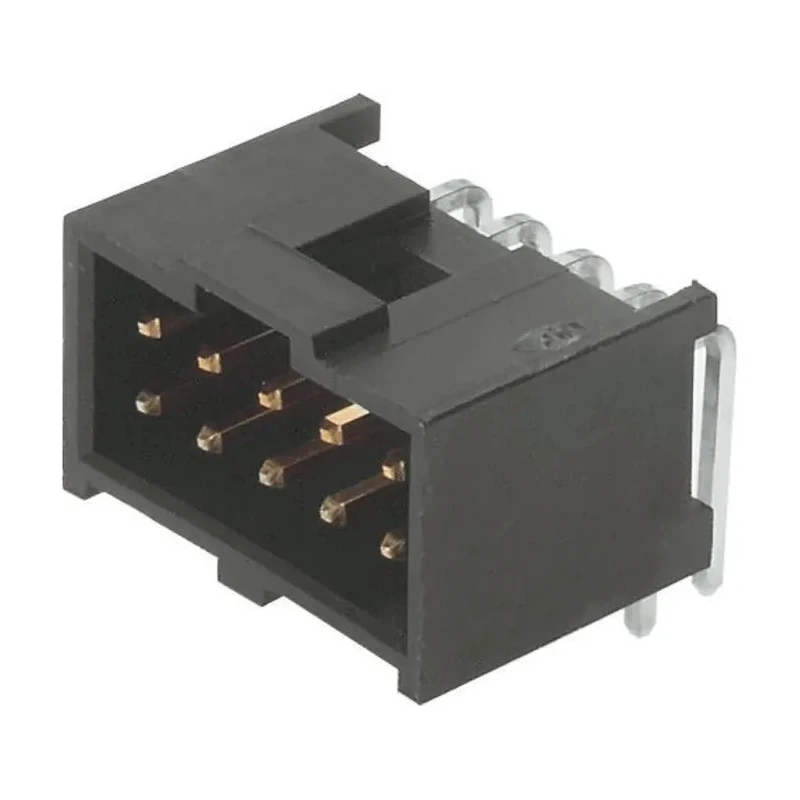

Molex C-Grid III Series 26 Contact Right Angle Through Hole PCB Header 2.54 mm Pitch 2 Row Shrouded 90130-3226
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- The header features a shrouded design for secure mating and protection of contacts.
- It supports a maximum current rating of 3A, suitable for moderate power electronics applications.
- The housing is constructed of durable polyester ensuring insulation and mechanical strength.
- Gold plated brass contacts provide reliable conductivity and corrosion resistance.
- Designed with 2 rows and right angle orientation for PCB mounting flexibility.
- The through hole mount type facilitates solder termination for robust mechanical and electrical connection.
- Operates reliably within a temperature range of -55°C to 125°C.
- The 2.54 mm row pitch matches industry standard spacing for compatibility with various PCB designs.
Product Description
Molex 90130-3226 is a C-Grid III Series right angle through hole PCB header featuring 26 contacts with a standard pitch of 2.54 mm, housed in durable polyester material. This shrouded connector is designed for secure and reliable wire-to-board applications, supporting a current rating of 3A and a voltage rating of 350V.
With a 2-row configuration and right angle orientation, it offers flexibility in PCB layout and integration. The gold-plated brass contacts ensure excellent conductivity and corrosion resistance, essential for industrial, commercial, and embedded electronics environments.
The through hole mount type allows for solder termination, providing strong mechanical and electrical connections ensuring long-term usage stability in demanding operating temperatures from -55°C up to 125°C.
This PCB header’s design includes a tail pin length of 2.9 mm and a mating pin length of 6.75 mm to ensure proper engagement with complementary connectors. The shrouded design also enhances contact protection, minimizing the risk of damage and short circuits.
Typical use cases include industrial equipment, power distribution boards, embedded system connectivity, manufacturing instrumentation, and other electronic assemblies requiring reliable, high-quality board interconnection solutions.
The header features a shrouded design for secure mating and protection of contacts. Supports a maximum current rating of 3A for moderate power connections. Housing made of robust polyester provides insulation and mechanical strength.
Gold plated brass contacts ensure reliable conductivity and corrosion resistance. 2-row right angle design allows flexible PCB mounting options. Through hole, solder termination mount type ensures durable connection. Temperature range from -55°C to 125°C for harsh environment compatibility.
Standard 2.54 mm pitch and row spacing for broad PCB compatibility. Tail pin length 2.9 mm and mating pin length 6.75 mm for connector stability. Ideal for industrial, commercial, and embedded electronics interconnection applications.
