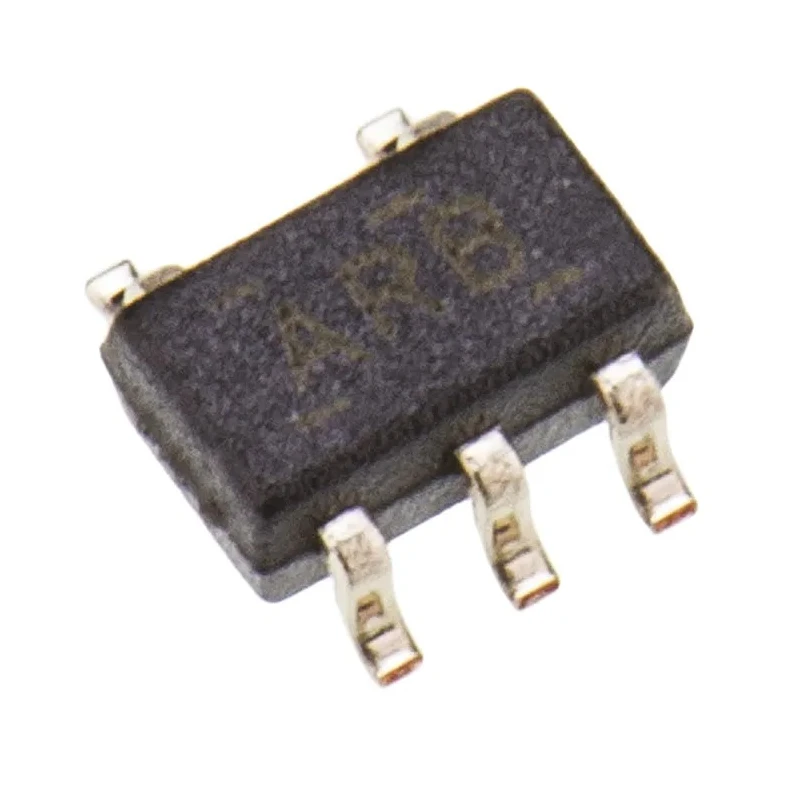

Texas Instruments CMOS Buffer Logic IC 74LVC Family, 1 Channel, 5-Pin SC-70 Package SN74LVC1G34DCKR

Texas Instruments SN74LVC1G34DCKR CMOS Buffer is a high-performance logic IC from the 74LVC family, featuring a single channel buffer function. It operates at supply voltages between 1.65V and 5.5V, suitable for various electronic and industrial applications requiring signal buffering and integrity.

The device is housed in a compact 5-Pin SC-70 surface mount package, ideal for space-constrained PCB layouts. With CMOS input and output, it offers low power consumption and high-speed switching.

Designed to withstand extended temperature ranges from -65°C to 150°C, this IC is well suited for industrial, automotive, and consumer electronics environments that demand reliability across wide operating conditions.

The output current capabilities include a maximum high level of -32mA and a maximum low level of 32mA, ensuring stable logic level driving for a variety of loads. The lack of Schmitt trigger inputs simplifies the logic operation for standard buffering requirements.

Compliance with RoHS environmental standards ensures that the product meets modern sustainability criteria for electronic components manufacturing. This CMOS buffer operates within a supply voltage range from 1.65V to 5.5V.

The device features one channel for logic buffering applications. It uses CMOS input and output types optimizing power and performance. Designed for surface mounting with a compact 5-Pin SC-70 package. Operating temperature ranges from -65°C to 150°C, suitable for various environmental conditions.

RoHS compliant, ensuring environmentally responsible manufacturing standards. The maximum high level output current is -32mA ensuring efficient load driving capability. The maximum low level output current is 32mA with no Schmitt trigger inputs included.

Length 2.15mm and height 1.1mm provide a small footprint ideal for compact integrated circuits.

This buffer is applicable in numerous electronic designs including signal conditioning, digital logic level translation, and general buffering of data signals in industrial, laboratory instrumentation, and consumer electronics.
