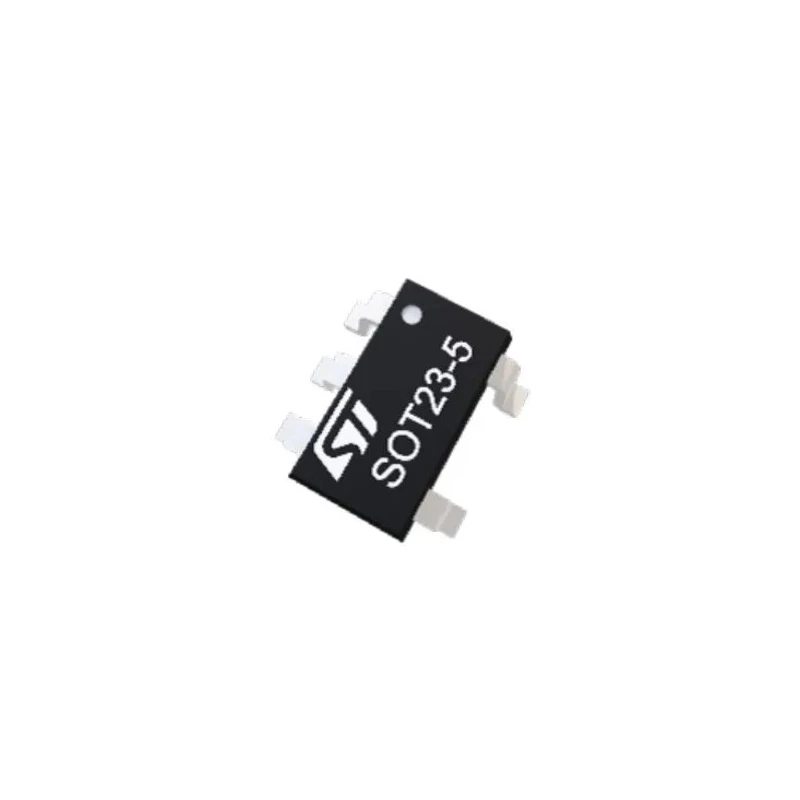

STMicroelectronics Operational Amplifier, 50 MHz Gain Bandwidth, 5-Pin SOT-23, 2.7 to 5.5 V Supply TSV791ILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 3mm |
| Model | TSV791ILT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TSV791 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | ESDA-JS-001-2017 |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100, AEC-Q3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 50MHz |
| Input Bias Current | 75 pA |
| Slew Rate | 30V/μs |
| Input Offset Current | 20 pA |
| Extended temperature range | - 40 °C to +125 °C |
Key Features
- Single channel operational amplifier with 5-pin SOT-23 surface mount package.
- Gain bandwidth product of 50 MHz for high frequency signal amplification.
- Wide supply voltage range from 2.7 V minimum to 5.5 V maximum.
- Low input bias current of 75 picoamperes for precision measurement.
- Operating temperature range from -40 °C to +125 °C for automotive applications.
- High slew rate of 30 V/µs enabling rapid output changes.
- Compact dimensions of 3 mm length, 1.75 mm width, 1.45 mm height.
- Compliance with automotive standards AEC-Q100 and AEC-Q3.
Product Description
STMicroelectronics TSV791ILT is a single-channel operational amplifier designed for demanding industrial and automotive electronic applications. It features a gain bandwidth product of 50 MHz and comes in a compact 5-pin SOT-23 surface mount package suitable for high-density PCB layouts. The device operates with a supply voltage between 2.7 V and 5.5 V, making it compatible with low-voltage systems.
This operational amplifier is particularly well-suited for low-side current measurement due to its rail-to-rail input and output stages and a high slew rate of 30 V/µs. The low input bias current of 75 pA and input offset voltage of 50 µV ensure excellent precision when amplifying small-amplitude signals.
The TSV791ILT supports an extended operating temperature range from -40 °C to +125 °C, compliant with automotive standards AEC-Q100 and AEC-Q3, assuring reliability in harsh environments. Its small size (3 mm x 1.75 mm x 1.45 mm) and surface mount design enable ease of integration into compact electronic devices.
This amplifier can handle output capacitors up to 1 nF and is specified with a 22 pF load, allowing for stable operation as an input buffer for analog-to-digital converters. The device's excellent accuracy is virtually unaffected by noise, providing reliable signal conditioning for high-frequency and precision industrial applications.
Single channel high-frequency operational amplifier. Compact 5-pin SOT-23 surface mount package. Rail-to-rail input/output for enhanced signal range. Wide supply voltage from 2.7 V to 5.5 V. Low input bias and offset currents for precision.
High slew rate of 30 V/µs eliminates output lag. Automotive grade with extended temperature range. Ideal for current measurement and signal conditioning. Stable operation with output capacitors up to 1 nF. Applicable in industrial, automotive, and laboratory settings.
Explore more STMicroelectronics Operational Amplifiers and related components on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSV791ILT has a gain bandwidth product of 50 MHz, suitable for high-frequency signal amplification.
It operates with a supply voltage ranging from 2.7 V to 5.5 V, making it compatible with low-voltage systems.
The input bias current of the TSV791ILT is 75 picoamperes, ensuring precision in measurement applications.
This operational amplifier can operate at a maximum temperature of 125 °C, suitable for automotive applications.
The dimensions of this operational amplifier are 3 mm in length, 1.75 mm in width, and 1.45 mm in height.
It has a high slew rate of 30 V/µs, allowing for rapid output changes.
Yes, it complies with automotive standards AEC-Q100 and AEC-Q3, ensuring reliability in automotive environments.
The input offset voltage for the TSV791ILT is specified at 50 microvolts, contributing to its precision.
It comes in a 5-pin SOT-23 surface mount package, suitable for high-density PCB layouts.
This operational amplifier can handle output capacitors up to 1 nF, allowing for stable operation.
The minimum operating temperature for the TSV791ILT is -40 °C, making it suitable for harsh environments.
This operational amplifier features a single channel design, making it suitable for various applications.
