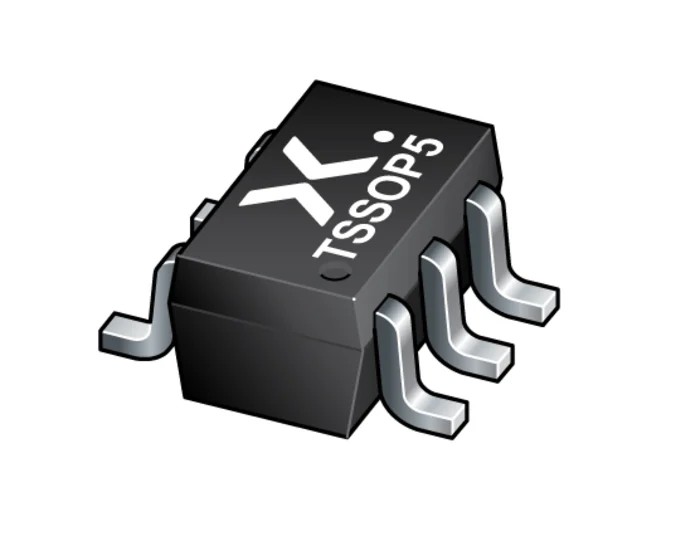

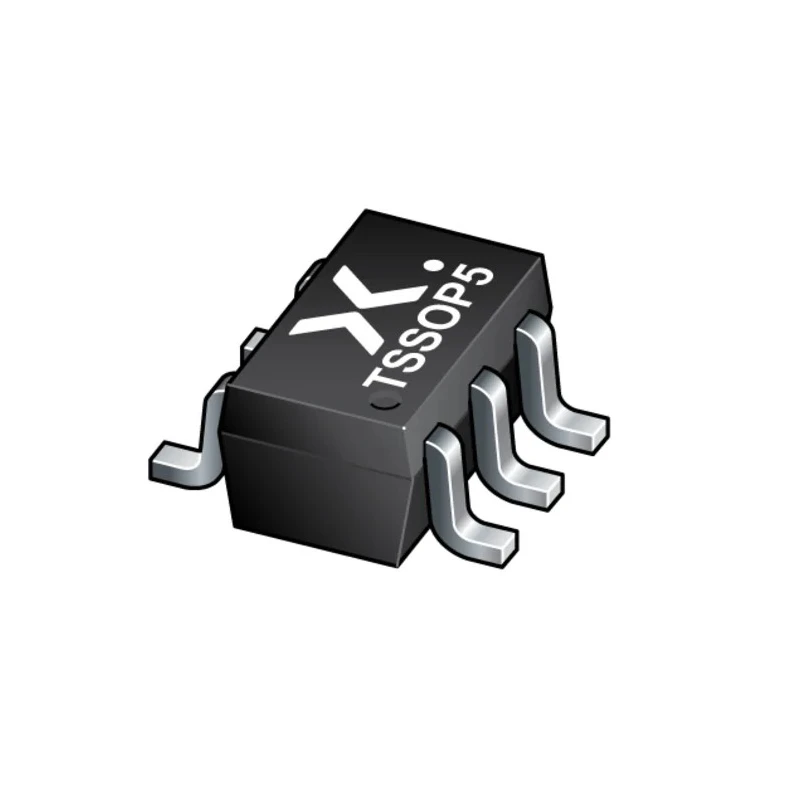

Nexperia 2-Input AND Schmitt Trigger Input Logic Gate, 5-Pin TSSOP-5 Surface Mount, Low Power, AUP Logic 74AUP1T08GW-Q100H

Nexperia 74AUP1T08GW-Q100H is a 2-input AND logic gate with Schmitt trigger input, housed in a 5-pin TSSOP surface mount package. It is engineered to provide low power consumption and reliable switching performance with operation over a supply voltage range from 2.3 V to 3.6 V. This device belongs to the AUP logic family, optimized for minimal static and dynamic currents making it ideal for battery-powered and low power applications.

The Schmitt trigger inputs provide enhanced noise immunity, ensuring stable logic level transitions in electrically noisy environments. With a maximum propagation delay time of 4.8 ns, this logic gate supports high-speed switching tasks essential for modern electronic designs.

The component is qualified to the automotive AEC-Q100 standard, backing its robustness and suitability for automotive electronics over a broad temperature range from -40°C to 125°C. Its compact physical dimensions of 2.25 mm length and 1.1 mm height facilitate compact and efficient PCB layouts.

Additional features include IOFF circuitry to allow partial power-down mode, conserving energy during inactive states, and excellent latch-up immunity exceeding 100 mA, which enhances device reliability in harsh electrical conditions. The gate inputs are compatible with voltages up to 3.6 V, enabling voltage level translation capabilities.

This Logic Gate is widely applicable in industrial automation, automotive systems, consumer electronics, and other embedded and control circuit designs requiring efficient logical AND operations with robust noise handling.

Operates with low static current consumption maximizing battery life. Schmitt trigger inputs improve noise margins for signal integrity. Compact 5-pin TSSOP package for space-constrained implementations. Automotive-grade qualification assures reliability in critical environments.

Wide operating temperature range expands usability in harsh conditions. Explore the Electronics & Electricals section at EnvMart for a comprehensive range of semiconductor logic ICs and related components to support your design requirements.
