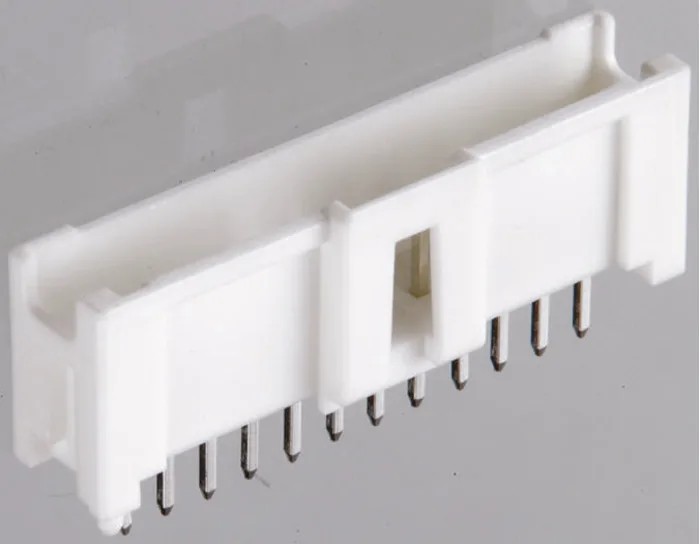

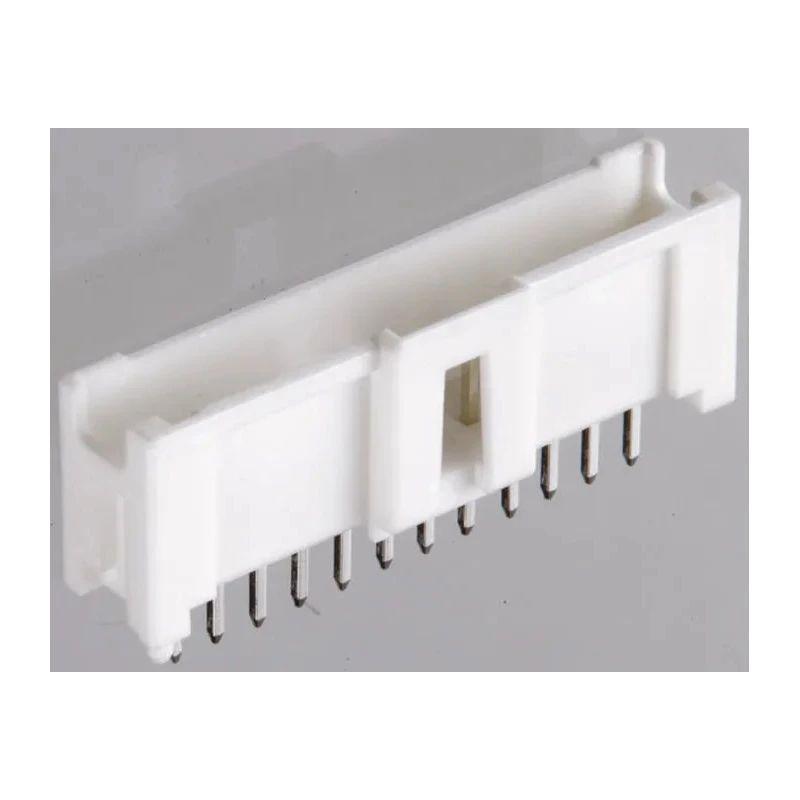

Molex MicroClasp Series Straight Through Hole PCB Header 14 Contacts 2 mm Pitch 1 Row Shrouded 55932-1410
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Tin |
| Series | MicroClasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance system |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 2mm |
Key Features
- Constructed with polyester housing for durability and insulation.
- Designed with low insertion force terminal for easy mating and unmating.
- Supports current rating of 3A and voltage rating of 250V.
- Through hole mount type with solder termination and tin plating.
- Operates reliably in temperature range from -40°C to 105°C.
- Includes inner positive lock for secure retention and audible mating click.
- Compact 2.00mm pitch design allowing PCB space savings.
- Male contact gender with 3.2mm tail pin length and 2mm mating pin length.
Product Description
Molex 55932-1410 MicroClasp Series Straight Through Hole PCB Header is a high-quality wire-to-board connector designed for compact PCB applications. Featuring a 2 mm pitch and 14 contacts arranged in a single row, this shrouded header provides secure and reliable connections in industrial and electronic equipment.
The housing is made from durable polyester material, offering excellent insulation and mechanical strength. Its through-hole mounting and solder tail termination enable robust assembly on printed circuit boards.
This header operates safely within a current rating of 3A and voltage up to 250V, withstanding temperature extremes from -40°C to 105°C, suitable for demanding environments. The tin-plated contacts ensure corrosion resistance and reliable signal transmission.
Unique to the MicroClasp series is the inner positive lock mechanism that provides secure retention with an audible click ensuring proper mating. The design incorporates a low insertion force terminal and a two-point contact system enhancing both durability and electrical performance.
This connector is ideal for applications in industrial automation, power connectors, electronics manufacturing, telecom equipment, and other wire-to-board interface requirements. The compact 2.00mm pitch and shrouded design help optimize PCB real estate while protecting contacts from damage.
Constructed with polyester housing for durability and insulation. Designed with low insertion force terminal for easy mating and unmating. Supports current rating of 3A and voltage rating of 250V. Through hole mount type with solder termination and tin plating.
Operates reliably in temperature range from -40°C to 105°C. Includes inner positive lock for secure retention and audible mating click. Compact 2.00mm pitch design allowing PCB space savings. Male contact gender with 3.2mm tail pin length and 2mm mating pin length.
Two-point high-current contact design ensures electrical reliability.
Available as a premium connector for demanding electronic component assembly, this Molex MicroClasp header enhances product reliability and connection security. Browse the electronics category on EnvMart for more Molex connectors and PCB components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 3A and a voltage rating of 250V.
The pitch size is 2 mm, allowing for compact PCB space savings.
It operates reliably within a temperature range from -40°C to 105°C.
This model features 14 contacts arranged in a single row.
It uses a through-hole mount type with solder termination.
The housing is made from polyester, and the contacts are tin-plated for corrosion resistance.
This model has male contact gender with a tail pin length of 3.2 mm.
Yes, it includes an inner positive lock for secure retention and an audible mating click.
The termination type is solder, which is suitable for robust assembly.
The country of origin for this model is India.
It is ideal for applications in industrial automation, power connectors, electronics manufacturing, and telecom equipment.
The mating pin length is 2 mm, designed for effective connection.
