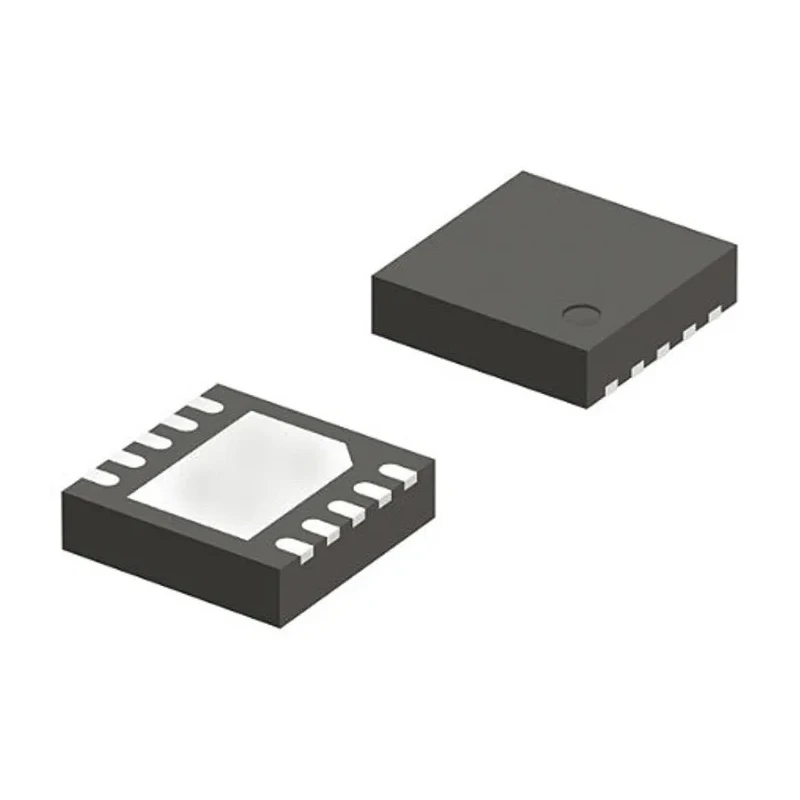

DiodesZetex 4-Input Logic Gate ULN2003F12FN-7, 10-Pin DFN, Surface Mount, 3.3V to 5V Supply

DiodesZetex ULN2003F12FN-7 is a 4-input logic gate integrated circuit housed in a 10-pin DFN surface mount package. It operates on a supply voltage range of 3.3V to 5V, providing robust electrical performance for modern digital circuits. The compact package with dimensions 3.1mm length and 630μm height facilitates space-saving designs in electronic manufacturing.

This logic gate supports a maximum high-level output current of 700mA and a maximum low-level output current of 140mA, making it suitable for driving various loads and peripheral devices in electronic circuits. The CMOS input type ensures low power consumption while maintaining high-speed response. Although it does not feature a Schmitt trigger input or automotive standard certification, it meets reliable operational criteria across a wide temperature range from -40°C to 125°C.

Its voltage output type and ULN logic family make it appropriate for applications requiring consistent logic level interfacing and signal processing. The device is suitable for use in industrial automation systems, consumer electronics, power and connector components manufacturing, and other electrical engineering projects requiring dependable logic gate components.

Features a surface mount design suitable for compact PCB layouts. Operates within a supply voltage range of 3.3V to 5V. Supports a maximum high-level output current of 700mA. Handles a maximum low-level output current of 140mA.

Functions reliably across an operating temperature range from -40°C to 125°C. Utilizes CMOS input type for low power consumption. Comprises 4 inputs per Logic Gate enhancing logic functionality. Encapsulated in a compact 10-pin DFN package with 3.1mm length and 630μm height.

Does not include Schmitt trigger input or automotive standards compliance. Output type corresponds to voltage output suitable for various logic applications. Explore more detailed DiodesZetex semiconductor components and logic ICs at EnvMart for industrial, manufacturing, and electronics design projects.
