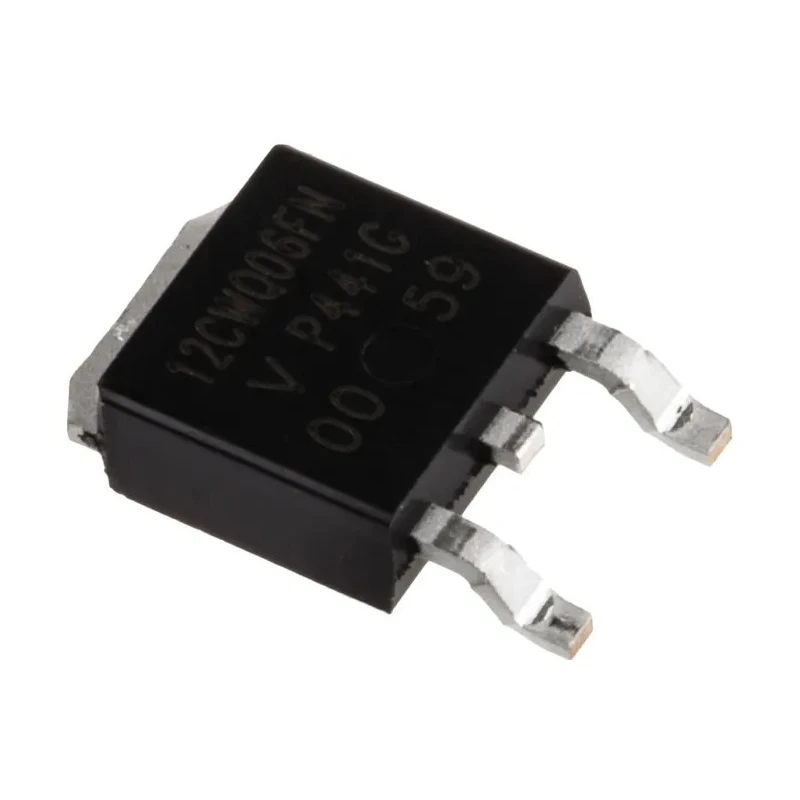

Vishay High-Performance 60 V 12 A Schottky Diode 3-Pin Surface Mount TO-252 Package VS-12CWQ06FNPBF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-12CWQ06FNPBF |
| Width | 6.22mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 320A |
| Maximum Forward Voltage Vf | 570mV |
Key Features
- Surface mount TO-252 package offers compact installation.
- Maximum continuous forward current of 12 amperes for robust performance.
- Peak reverse repetitive voltage rating of 60 volts ensures reliable operation.
- Fast switching speed with very low forward voltage drop of 570 millivolts.
- Operates reliably within a temperature range of -55°C to 150°C.
- 3-pin common cathode diode configuration optimized for power electronics.
- Peak non-repetitive forward surge current of 320 amperes for surge tolerance.
- Complies with RoHS standards for environmental safety.
Product Description
Vishay VS-12CWQ06FNPBF is a high-performance Schottky diode designed for applications requiring fast switching and low power loss in a compact surface mount TO-252 package.
It features a maximum continuous forward current of 12 A and peak reverse repetitive voltage of 60 V, making it suitable for power supply circuits, automotive electronics, and industrial systems.
This 3-pin common cathode diode has a low forward voltage drop of 570 mV which minimizes conduction losses, enhancing energy efficiency in electronic devices. The diode operates reliably within a wide temperature range from -55°C to 150°C, allowing use in harsh environmental conditions.
Its peak non-repetitive forward surge current rating of 320 A ensures robustness against transient overloads in power circuits. The compact physical dimensions (6.73 mm length, 6.22 mm width, and 2.39 mm height) facilitate high density PCB layouts and flexibility in system design.
Fully compliant with RoHS directives, this diode meets environmental and safety requirements. Compact TO-252 surface mount package for high efficiency in space utilization. Robust maximum continuous forward current of 12 amperes.
Low forward voltage reduces power loss and enhances reliability. Wide operating temperature range for diverse industrial and automotive uses. High surge current capacity suitable for transient conditions. Common cathode configuration for versatile circuit integration.
RoHS compliant for environmental safety. Made in China with quality manufacturing standards. This Vishay Schottky Diode is ideal for use in industrial, automotive, power supply, and semiconductor applications requiring fast switching and efficient power management.
Explore our extensive Electronics & Electricals semiconductor range for other diode variants and related components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-12CWQ06FNPBF Schottky diode is 12 amperes.
This model has a peak reverse repetitive voltage rating of 60 volts, ensuring reliable operation in various applications.
The forward voltage drop of the diode is 570 millivolts, which helps to minimize conduction losses.
It operates reliably within a temperature range of -55°C to 150°C, making it suitable for harsh environments.
The Vishay VS-12CWQ06FNPBF is housed in a TO-252 surface mount package, which allows for compact installation.
It can handle a peak non-repetitive forward surge current of 320 amperes, providing robustness against transient overloads.
This diode features a 3-pin common cathode configuration, optimizing it for power electronics applications.
Yes, the Vishay VS-12CWQ06FNPBF complies with RoHS standards for environmental safety.
The dimensions of this model are 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height.
This model is a Schottky rectifier, known for its fast switching speed and low power loss.
The peak reverse current rating for this diode is 3 milliamperes, indicating its efficiency in reverse bias conditions.
It is suitable for use in power supply circuits, automotive electronics, and industrial systems requiring fast switching and efficient power management.
