JST PHD Series Right Angle Through Hole PCB Header, 28 Contacts, 2 mm Pitch, 2 Row, Shrouded S28B-PHDSS (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PHD Series Right Angle Through Hole PCB Header, 28 Contacts, 2 mm Pitch, 2 Row, Shrouded S28B-PHDSS (LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Malaysia
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S28B-PHDSS (LF)(SN)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	PHD
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	2
Pitch	2mm
Contact Plating	Tin
Number of Contacts	28
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

The connector features a 2.0 mm pitch for high-density PCB connections.
It has a right-angle orientation suitable for versatile board layouts.
The header is shrouded to prevent incorrect mating and contamination.
Manufactured with copper alloy contacts plated with tin for reliable conductivity.
Supports a maximum voltage of 250 V and current rating of 3 A.
Designed for through-hole mounting and solder termination type.
Compatible with wire-to-board connector systems.
Operating temperature range from -25°C to 85°C ensures durability in various environments.

Product Description

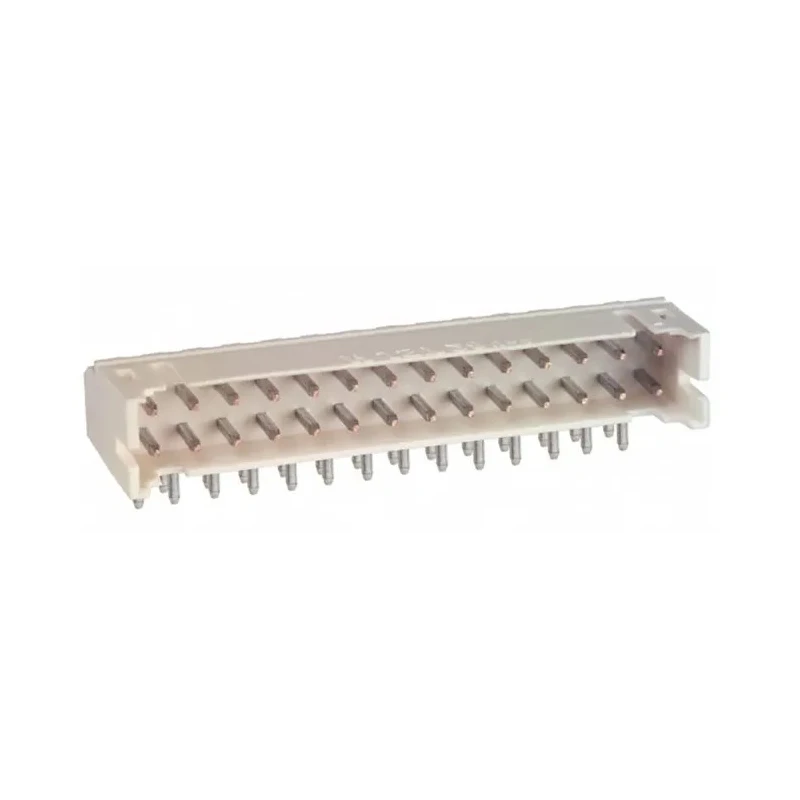

JST S28B-PHDSS (LF)(SN) Right Angle Through Hole PCB Header features 28 male contacts arranged in 2 rows with 2 mm pitch, designed for reliable wire-to-board connections in electronic assemblies.

This shrouded PCB header offers protection against incorrect mating and contamination, enhancing connection integrity for industrial and commercial electronic applications.

The contacts are made of copper alloy and plated with tin to provide excellent conductivity and solderability. It accommodates a maximum current of 3 A and voltage up to 250 V, making it suitable for a broad range of low voltage electronic uses.

With its right angle orientation and through-hole mounting, it supports PCB layouts requiring compact and low-profile connectors with a mating height of just 8.8 mm. Operating temperature ranges from -25°C to 85°C, ensuring stable performance in moderate environments.

The 2.0 mm pitch allows for high-density connectivity. The shrouded design prevents insertion errors and protects contacts. Copper alloy contact material ensures durability and conductivity. Tin plating improves solderability and corrosion resistance.

Through-hole mount type suits robust PCB assembly methods. Termination via soldering guarantees secure electrical contacts. Right angle contact orientation fits diverse board layouts. Operating temperature range supports various industrial and commercial applications.

Compact design meets demands for space-saving connections. Ideal for use in industrial, electronic manufacturing, electrical control systems, and other applications requiring reliable PCB headers. Explore more JST products and PCB Headers in the Electronics & Electricals category at EnvMart.
