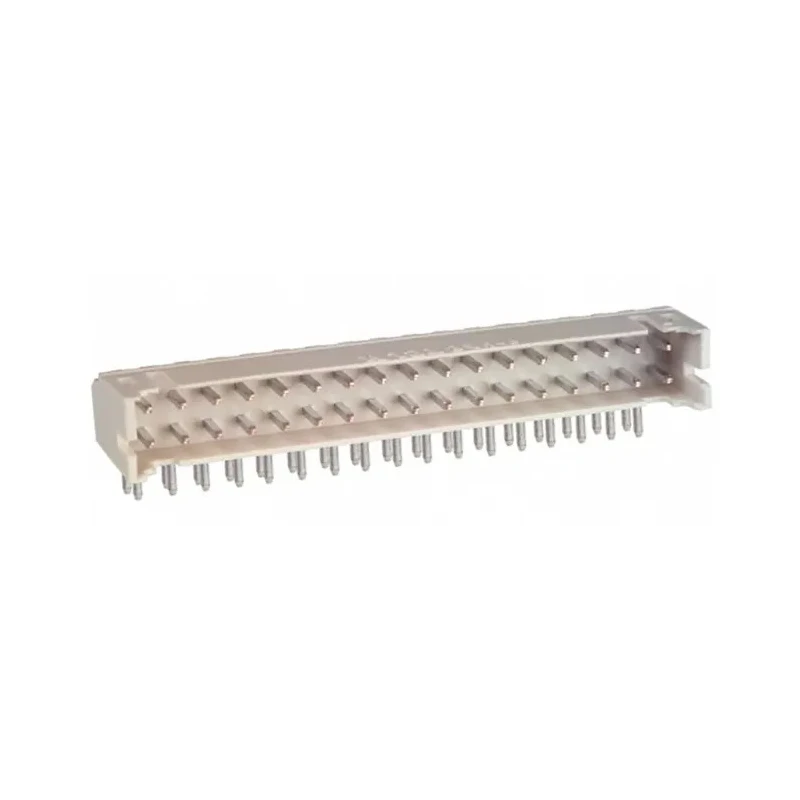

JST PHD Series Right Angle Through Hole PCB Header 34 Contact 2mm Pitch 2 Row Shrouded S34B-PHDSS (LF)(SN)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | JST |
| Orientation | Right Angle |
| Current | 3A |
| Model | S34B-PHDSS (LF)(SN) |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 34 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Rated current of 3A ensures reliable electrical performance.
- Compact 2.0 mm pitch supports high density PCB layouts.
- Double-row configuration enhances connection robustness.
- Right angle, through-hole mount type for secure PCB attachment.
- Contact material of copper alloy with tin plating provides corrosion resistance.
- Solder termination type simplifies assembly processes.
- Operating temperature range from -25°C to 85°C suitable for diverse environments.
- Full shrouding prevents incorrect mating and flux ingress.
Product Description
JST S34B-PHDSS (LF)(SN) is a PHD Series right-angle, through-hole PCB header connector designed for high density and low profile applications. Featuring 34 male contacts in a double-row 2.0 mm pitch configuration, this shrouded connector prevents incorrect mating and protects against contaminants such as flux intrusion.
Utilizing copper alloy contacts with tin plating and a solder termination type, it delivers reliable electrical connections rated for 3A current and 250V voltage. The right angle orientation simplifies PCB assembly and optimizes space on the board.
Operating reliably within a temperature range from -25°C to 85°C, this PCB header is ideal for use in industrial electronics, power connectors, instrumentation, and other electronic assemblies requiring robust wire-to-board connections.
The compact design with a seated height of approximately 8.8 mm after mating suits low-profile electronic devices and densely packed circuit boards.
Key features include its full shrouded housing to prevent faulty connections and a durable contact plating that resists corrosion, making it suitable for long-term service and harsh operating conditions.
Rated 3A current ensures electrical reliability. 2.0 mm pitch supports compact PCB designs. Shrouded housing prevents incorrect mating. Right angle through-hole mount for secure attachment. Copper alloy contacts with tin plating resist corrosion.
Wide operating temperature range from -25°C to 85°C. Voltage rating up to 250V. Double-row configuration enhances connector density.
This PCB header is widely used in electronics manufacturing, laboratory equipment, industrial automation, and embedded system applications. It provides a dependable solution for achieving high-density connections on printed circuit boards while maintaining assembly efficiency and reliability.
Explore EnvMart's comprehensive range of JST connectors and PCB components for versatile industrial and electronic needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a rated current of 3A and a voltage rating of 250V, ensuring reliable electrical performance.
It features a 2mm pitch and includes 34 male contacts, designed for high-density applications.
This PCB header utilizes a solder termination type, simplifying the assembly process.
The operating temperature range is from -25°C to 85°C, making it suitable for diverse environments.
The contacts are made of copper alloy with tin plating, which provides corrosion resistance.
The full shrouded design prevents incorrect mating and protects against contaminants such as flux intrusion.
This model features a right angle through-hole mount type for secure attachment to the PCB.
The seated height after mating is approximately 8.8 mm, suitable for low-profile electronic devices.
It is widely used in electronics manufacturing, laboratory equipment, industrial automation, and embedded systems.
This model has a double-row configuration, which enhances connection robustness and density.
The country of origin for this PCB header is India.
This model utilizes a wire-to-board connector system, suitable for robust connections.
