JST PHD Series Straight Through Hole PCB Header 12 Contacts 2 mm Pitch 2 Row Shrouded B12B-PHDSS (LF)(SN)

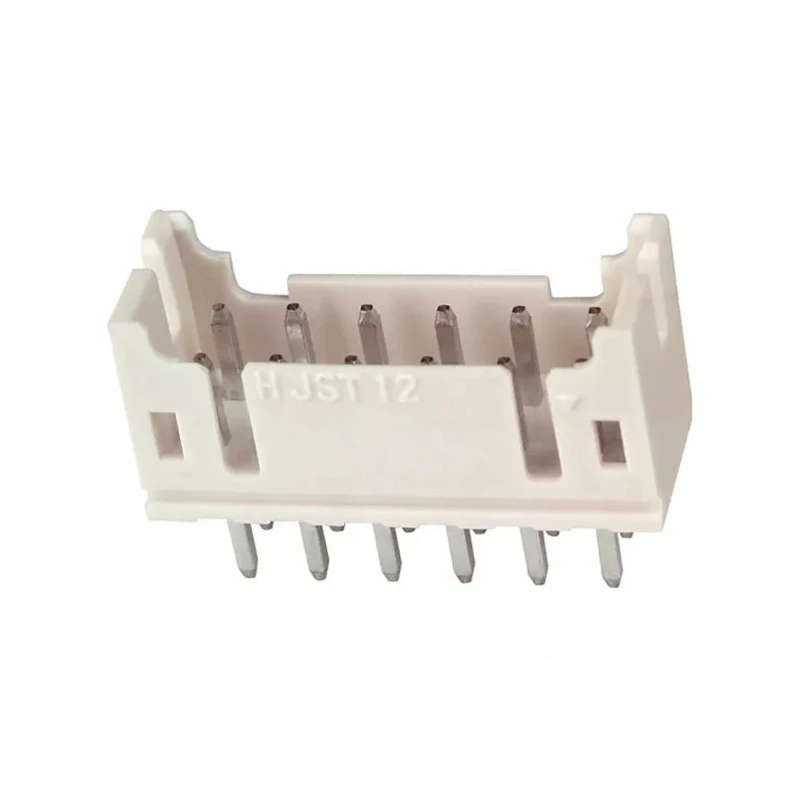

JST B12B-PHDSS (LF)(SN) PHD Series Straight Through Hole PCB Header offers a 2.0 mm pitch with 12 male contacts arranged in 2 rows. It is shrouded to prevent mismating and contamination intrusion, making it ideal for high-density, low-profile PCB connections in demanding electronic assemblies.

This PCB header is constructed with a glass filled nylon housing ensuring mechanical strength and thermal stability. The contacts feature copper alloy material with tin plating to provide excellent electrical conductivity and resistance to corrosion, supporting 3 amp current at 250 volts.

Mounting is through-hole type with a straight orientation to provide a robust, solder-type termination on printed circuit boards. The tail pin length of 3 mm and mating pin length of 2.9 mm ensure stable and secure electrical contact.

This product operates reliably across a wide temperature range from -25°C to 85°C, suitable for industrial, consumer electronics, automation, and manufacturing environments.

The shrouded design adds an extra layer of protection to the connector, limiting flux and dust ingress which enhances performance and connection reliability, important for power and signal integrity in complex electronic systems.

The connector has a pitch of 2.0 mm enabling high-density PCB layouts. It supports a current rating of up to 3 amps for efficient electrical performance. Constructed with a glass filled nylon housing to provide durability and stability.

Designed as a straight orientation with through-hole mounting for secure board attachment. Features tin plated copper alloy contacts to ensure good conductivity and corrosion resistance. The shrouded design prevents incorrect mating and protects against contaminants.

Supports a voltage rating of 250 volts, suitable for various electronics applications. Operating temperature range from -25°C to 85°C allows use in diverse environmental conditions.

This JST PCB Header is manufactured in Malaysia, adhering to stringent quality standards for electronic connectors. It suits demanding applications in industrial machinery, electronic devices, automotive modules, and communication equipment.
