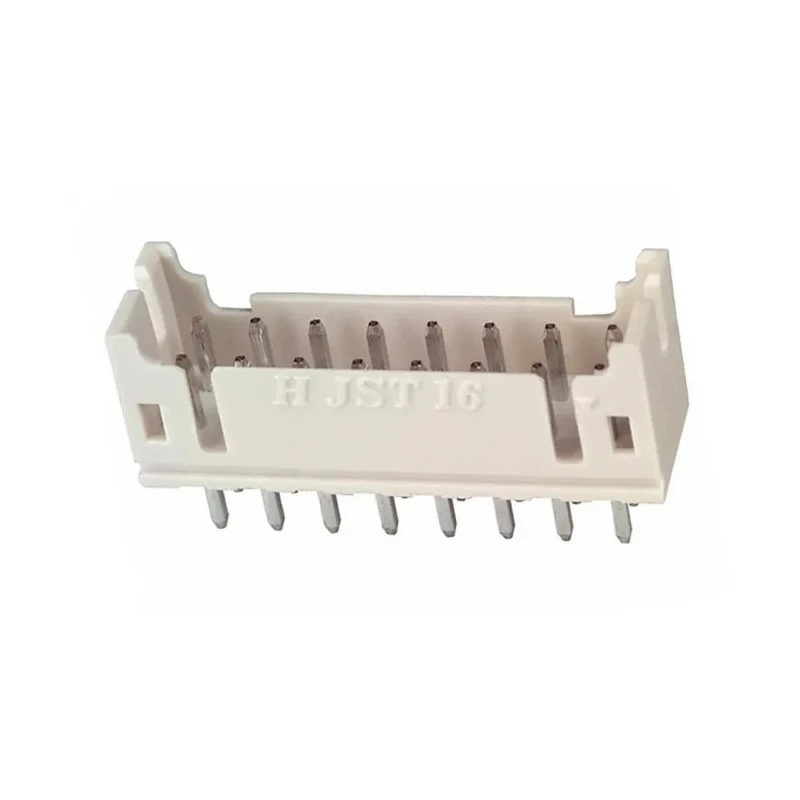

JST PHD Series Straight Through Hole Shrouded 16-Contact 2 mm Pitch 2-Row PCB Header B16B-PHDSS (LF)(SN)
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | JST |
| Orientation | Straight |
| Current | 3A |
| Model | B16B-PHDSS (LF)(SN) |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 2.9mm |
Key Features
- Rated current of 3A ensures reliable electrical performance.
- Constructed with polyamide housing for durability and insulation.
- Copper alloy contacts with tin plating ensure corrosion resistance.
- Compact design with 2.0 mm pitch and 8.8 mm mating height supports high-density PCB layouts.
- Operating temperature range from -25°C to 85°C suitable for diverse environments.
- Suitable for through-hole mounting and manual or automated soldering termination.
- Male contact gender with 2.9 mm mating pin length for secure connections.
- Full shrouding prevents incorrect mating and contamination.
Product Description
JST B16B-PHDSS (LF)(SN) PCB Header is a high-quality, shrouded straight through hole connector designed for reliable wire-to-board connections. It features 16 male contacts arranged in 2 rows with 2 mm pitch, providing a dense and compact interface to meet demanding PCB layout requirements.
The connector housing is made from polyamide offering excellent mechanical strength and electrical insulation. Contacts are crafted from copper alloy and plated with tin to resist corrosion and provide consistent electrical contact over time.
This PCB header supports a current rating of 3A and voltage rating of 250V, making it suitable for a wide range of electronic applications including industrial control systems, instrumentation, and communication devices. Its operating temperature range from -25°C to 85°C allows use in various environmental conditions.
The 2.9 mm mating pin length and full shrouding design ensure secure, precise connections and protect against mismating or flux contamination during soldering processes. The through-hole mounting style makes it compatible with standard PCB assembly techniques.
Rated current of 3A ensures reliable electrical performance. Constructed with durable polyamide housing for insulation. Copper alloy contacts with tin plating provide corrosion resistance. Compact 2 mm pitch and low profile facilitate high-density PCB designs.
Wide operating temperature range of -25°C to 85°C. Male contact gender with 2.9 mm mating pin length ensures secure mating. Full shrouding prevents incorrect mating and contamination. Suitable for through-hole mounting and solder termination.
Voltage rating of 250V supports diverse electronic applications. Manufactured in Malaysia assuring quality and conformity.
This JST PCB Header is ideal for use in industrial electronics, communication equipment, manufacturing automation, laboratory instruments, and general PCB assembly requiring dependable connector performance.
EnvMart offers this product as part of its Electronics & Electricals category, enabling engineers and procurement specialists to source high-quality connectors with confidence and convenience.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated current for this model is 3A, ensuring reliable electrical performance in various applications.
This PCB header has a voltage rating of 250V, making it suitable for a wide range of electronic applications.
The operating temperature range for this unit is from -25°C to 85°C, allowing it to function in diverse environmental conditions.
This model features 16 contacts arranged in 2 rows, providing a compact interface for high-density PCB layouts.
The housing is made from polyamide, while the contacts are crafted from copper alloy with tin plating for corrosion resistance.
The pitch size of this connector is 2 mm, which supports high-density PCB designs.
This PCB header is designed for through-hole mounting, making it compatible with standard PCB assembly techniques.
The mating pin length for this connector is 2.9 mm, ensuring secure connections.
This model uses solder termination, suitable for manual or automated soldering processes.
The JST B16B-PHDSS (LF)(SN) is a shrouded connector, which prevents incorrect mating and contamination.
This PCB header is manufactured in Malaysia, ensuring quality and conformity.
This connector is suitable for use in industrial control systems, instrumentation, communication devices, and general PCB assembly.
