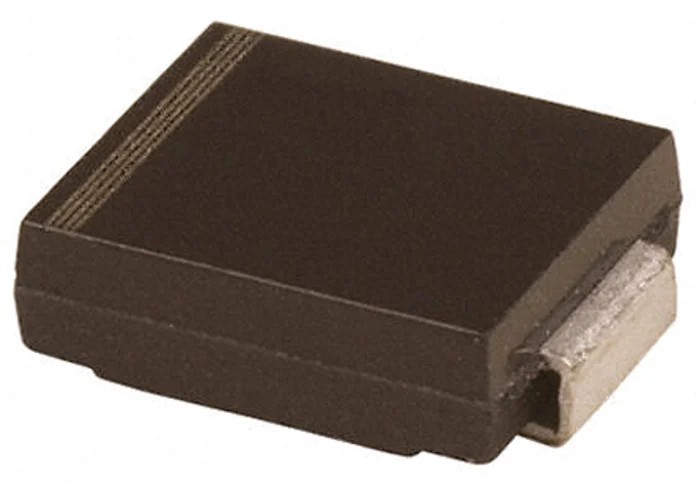

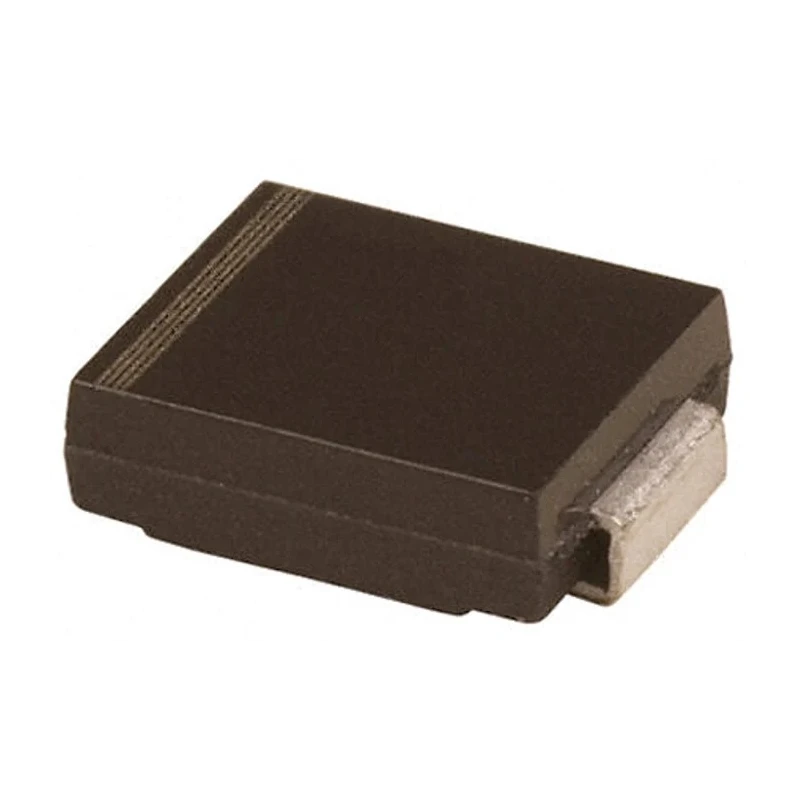

HY Electronic Corp Schottky Barrier Rectifier Diode 100 V 5 A Surface Mount DO-214AB SS510
Specifications
| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Height | 2.41mm |
| Length | 7.11mm |
| Model | SS510 |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | FBI |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Polarity | indicated by cathode band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 850mV |
| Moulded Plastic Case (Plastic | flammability classification UL 94V-0) |
Key Features
- Provides low forward voltage drop for improved efficiency.
- Designed with metal-semiconductor junction with guarding for reliability.
- Operates within a wide temperature range from -55°C to 150°C.
- Package conforms to moulded plastic case with flammability classification UL 94V-0.
- Polarity indicated by cathode band for correct installation.
- Ideal for applications including free-wheeling, inverters, and polarity protection.
- Peak non-repetitive forward surge current of 150 A enhances transient handling.
- RoHS compliant and made in China.
Product Description
HY Electronic Corp SS510 is a high-performance Schottky barrier rectifier diode designed for surface mount applications. It features a single diode configuration and is encapsulated in a DO-214AB (SMC) package that supports superior thermal and mechanical performance.
Rated for a maximum continuous forward current of 5 A and a peak reverse repetitive voltage of 100 V, the SS510 offers low forward voltage drop at 850 mV, reducing power loss and increasing circuit efficiency. Its metal-semiconductor junction with guarding and epitaxial construction ensures reliable electrical characteristics suitable for demanding industrial uses.
Operating reliably in environments ranging from -55°C to 150°C, the diode meets flammability standards UL 94V-0 in its moulded plastic case, with polarity clearly marked by a cathode band for easy and error-free PCB assembly.
Low forward voltage drop enables power savings in switching applications. High surge current capability supports robust transient conditions. Compact form factor fits standard surface mount design requirements. Applicable in circuits for free-wheeling diodes, polarity protection, and inverter designs.
RoHS compliant construction complies with environmental regulations. Precision performance guaranteed by HY Electronic Corp.
Commonly used in electronics manufacturing, industrial power supply units, automotive electronics, and renewable energy systems, the SS510 diode balances efficiency and durability. Its Chinese manufacturing origin attests to consistent quality standards under HY Electronic Corp branding.
Explore a broad range of Schottky Diodes and rectifiers in the Electronics & Electricals category at EnvMart for comprehensive solutions to your semiconductor component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the SS510 diode is 5 A.
The peak reverse repetitive voltage rating of the SS510 is 100 V.
The maximum forward voltage drop for this model is 850 mV.
The SS510 diode has a height of 2.41 mm, a length of 7.11 mm, and a width of 6.22 mm.
The operating temperature range for the SS510 diode is from -55°C to 150°C.
This diode is packaged in a DO-214AB (SMC) moulded plastic case.
The peak non-repetitive forward surge current for this model is 150 A.
The polarity of the SS510 diode is indicated by a cathode band for correct installation.
The SS510 diode is suitable for applications such as free-wheeling, inverters, and polarity protection.
The peak reverse current for this model is rated at 50 mA.
The moulded plastic case of the SS510 meets the flammability classification UL 94V-0.
The SS510 is a Schottky barrier rectifier diode.
