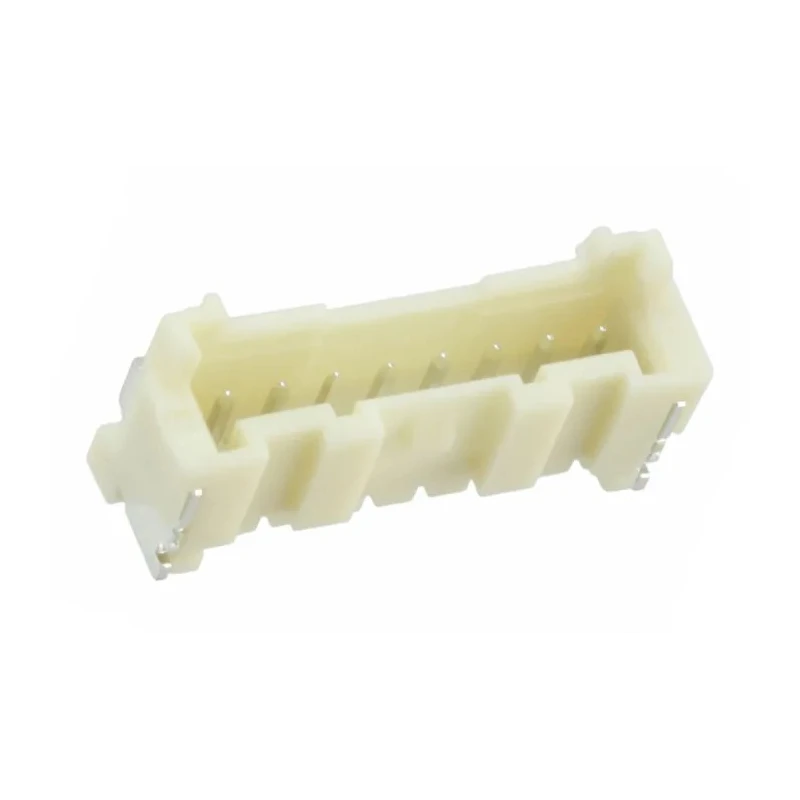

JST PA Series Right Angle Surface PCB Header 8 Contacts 2 mm Pitch 1 Row Shrouded SM08B-PASS-TB (LF)(SN)
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | JST |
| Orientation | Right Angle |
| Current | 3A |
| Model | SM08B-PASS-TB (LF)(SN) |
| Mount Type | Surface |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | PA |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a locking device to ensure secure connection and resistance to vibration.
- Includes insertion guides for precise and easy placement on PCBs.
- Polarisation bosses provide accurate alignment and prevent incorrect mating.
- Flanged press pins prevent accidental removal during unmating.
- Supports a maximum current rating of 3A and voltage up to 250V.
- Constructed from durable Polybutylene Terephthalate housing material.
- Contact material is copper alloy with tin plating for reliable electrical connectivity.
- Designed for surface mount technology with solder termination.
Product Description
JST SM08B-PASS-TB (LF)(SN) is a PA Series Right Angle Surface Mount PCB Header featuring 8 contacts with 2 mm pitch arranged in a single shrouded row. This connector is engineered to provide reliable and secure wire-to-board connections with enhanced resistance to vibration commonly found in industrial, electronic, manufacturing, and testing equipment.
The PA series utilizes a locking ramp device that firmly holds the mating connector during assembly and operational vibrations, preventing accidental disconnects. The insertion guides integrated into the housing allow easy, accurate PCB alignment, while polarisation bosses ensure correct mating orientation. Flanged press pins secure the contacts firmly to avoid removal during connector unmating or mechanical distortions.
Constructed using Polybutylene Terephthalate housing and copper alloy contacts plated with tin, this connector supports a current rating of 3A and rated voltage of 250V. It operates safely between -25°C to 85°C, making it an excellent choice for diverse environments.
The right angle orientation and surface mount design facilitate compact PCB layouts with reliable electrical and mechanical performance in complex wiring harnesses and circuit assemblies.
Locking device provides vibration resistant secure connection. Insertion guides facilitate accurate and easy PCB insertion. Polarisation bosses align connector precisely. Flanged press pins protect against accidental removal.
High quality Polybutylene Terephthalate housing ensures durability. Copper alloy contacts with tin plating for reliable conductivity. Wide temperature operating range from -25°C to 85°C. Wire-to-board system with solder termination ensures strong mounting.
This JST PCB Header is suitable for industrial, laboratory, manufacturing, electronics assembly, and HVAC applications where secure and stable PCB connections are critical. It supports complex harness designs requiring vibration resistance and ease of assembly.
Explore more advanced PCB Header connectors from EnvMart’s electronics and electrical components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 3A and a voltage rating of up to 250V.
The housing is made from Polybutylene Terephthalate, while the contacts are constructed from copper alloy with tin plating.
It features a 2 mm pitch and has a total of 8 contacts arranged in a single row.
It operates safely within a temperature range of -25°C to 85°C.
The locking device utilizes a ramp mechanism that securely holds the mating connector during assembly and operational vibrations, preventing accidental disconnects.
Yes, this model is specifically designed for surface mount technology with solder termination.
It includes insertion guides for precise placement and polarisation bosses to ensure accurate alignment and prevent incorrect mating.
It utilizes a wire-to-board connector system, which is suitable for various electronic applications.
This model has a right angle orientation, which facilitates compact PCB layouts.
It is suitable for industrial, laboratory, manufacturing, electronics assembly, and HVAC applications where secure PCB connections are critical.
The country of origin for this PCB header is Malaysia.
This model features a solder termination type for secure connections.
